Small Field Refrigeration Generator Set “Clip-On” Type (3 Plug)

Small Field Refrigeration Generator Set “Clip-On” Type (3 Plug)

Part Number: SB572.SFRS.3P

Type: I

Small Field Refrigeration Generator Set "Clip-On" Type

Diesel Generator set designed to clip on to the front frame of a refrigerated container. Can connect up to three (3) Small Field Refrigerated Systems.

PDF Brochure SB572.SFRS.3P Brochure
If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • The “clip-on” generator set is designed to clip on to the front frame of a refrigerated container. The water cooled diesel generator can provide continuous (single voltage) electrical power to intermodal refrigerated containers.
  • This unit is self contained with an integral 122 U.S. gallon (537 liter) fuel tank combined with engine, generator, battery and all operating controls.
  • Voltage Output: 230V, 3 phase, 46A @ 60Hz Container clip-on to top header with pins
  • All steel frame with integral 122 gallon fuel tank
  • Solid-state battery charger
  • Electrostatic coated tube and fin radiator
  • 12V DC maintenance-free battery

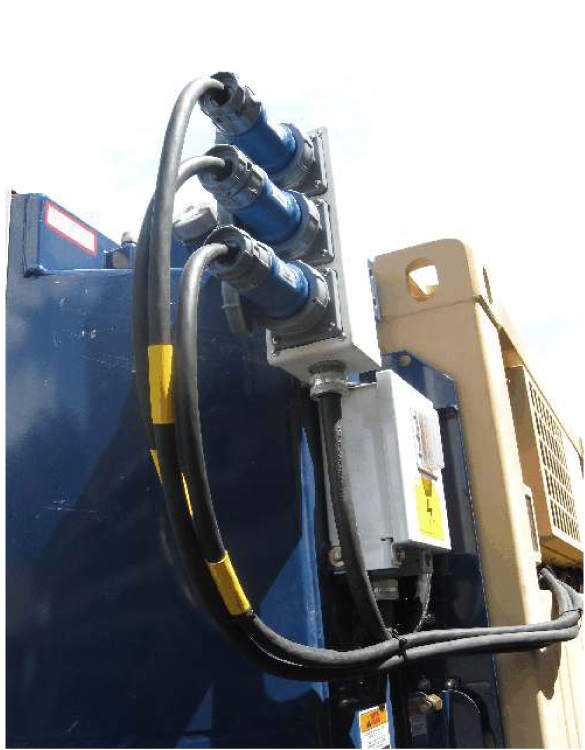

  • CEE-17 female outlet receptacle with circuit breaker
  • This unit is designed for quick installation to the side frame of the container and connect up to 3 SFRS containers.
  • Warranty - standard 2 years, complete genset
  • ENGINE
  • Kubota 134 cubic inch (2.2 liter) 4 cylinder water-cooled direct injected engine
  • Lima-Mac 460V AC, 15kW generator
  • 460V Receptacle CEE-17, 460VAC 32 amps, Carrier P/N 22-01561-00
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 7’ 8” 3’ 6 5/8” Depth: 2' 1"
Metric 2,337 1,083 Depth: 635
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 1,675/ 3,746
Kgs Tare Weight without Fuel/Tare Weight with 122 Gallon Tank 760/1,699

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
