SEA BOX | Quadcon Dry Freight ISO Container (8’ H)

Quadcon Dry Freight ISO Container (8’ H)

Part Number: SB812.0

NSN: 8145015830940

Type: II

ISO Cargo Container. Double doors on both sides. NSN 8145-01-583-0940

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, roof, and swing doors on both sides
  • Heavy-duty steel floor
  • Four-way fork lift pockets
  • Adjustable shelving brackets, (5) sets = (10) vertical E-track sections total
  • Wall tie down steel lashing rings, 4,000 lbs. cap. Each (16) total
  • Door corner post tie downs, (20) total = restraint system shoring slot will support 2” x 6” lumber
  • Vents, (2) each in door panels
  • Connecting couplers, (3) per Quadcon
  • Connecting coupler storage bracket, (1) each
  • 383 Green or 33446 Tan exterior CARC paint
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 4’ 9 3/8” 4’ 6” 8’ 0” 7’ 5” 8’ 0” 7’ 6 9/16” 7’ 1 1/8” 4’ 5 1/2”
Metric 1,457 1,404 2,438 2,261 2,438 2,438 2,163 1,359
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,120 9,040 11,200 258 Cu. Ft.
Kgs 960 4,100 5,080 7.3 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS

Related Products

Quadcon ISO Container with 6 Adjustable Shelves with 6 Adjustable Shelves (Three Per Side) (SB812.SH3+3)

Type II

Quadcon ISO Container with 6 Adjustable Shelves... (SB812.SH3+3)

Learn More Request A Quote

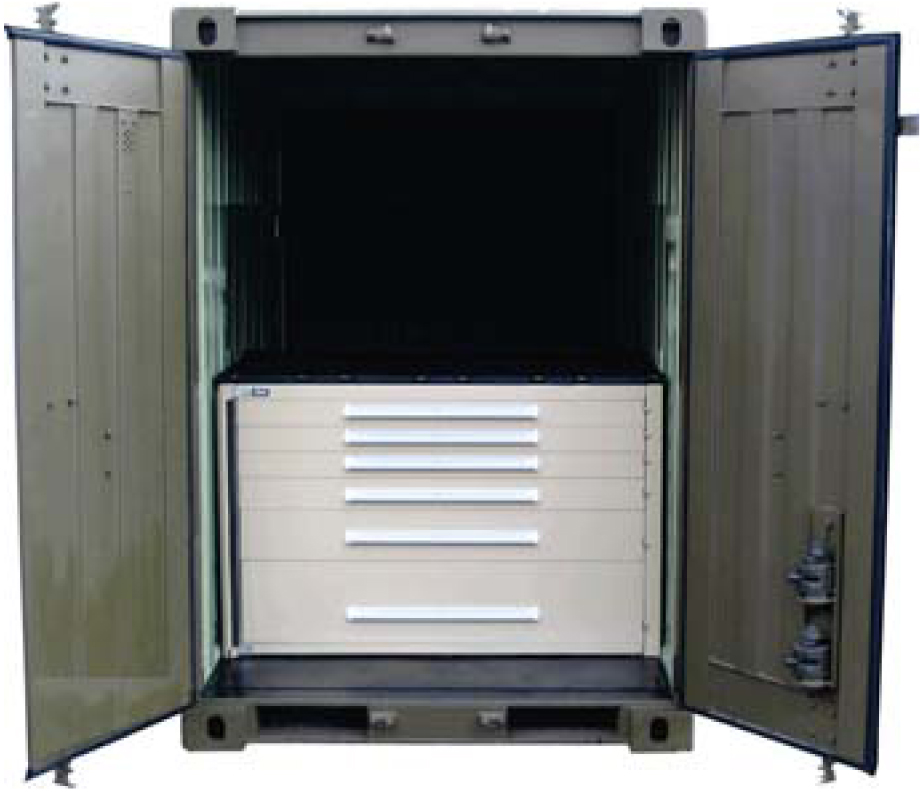

Quadcon ISO Container with One 6 Drawer Cabinet with 1 Cabinet and 6 Drawers (SB812.CT1-6D.DLA)
