Quadcon ISO Container with One 6 Drawer Cabinet
Part Number: SB812.CT1-6D.DLA
NSN: 8150-01-500-5873, 8150-01-618-9832, 8150-01-618-9277
Type: Iwith 1 Cabinet and 6 Drawers

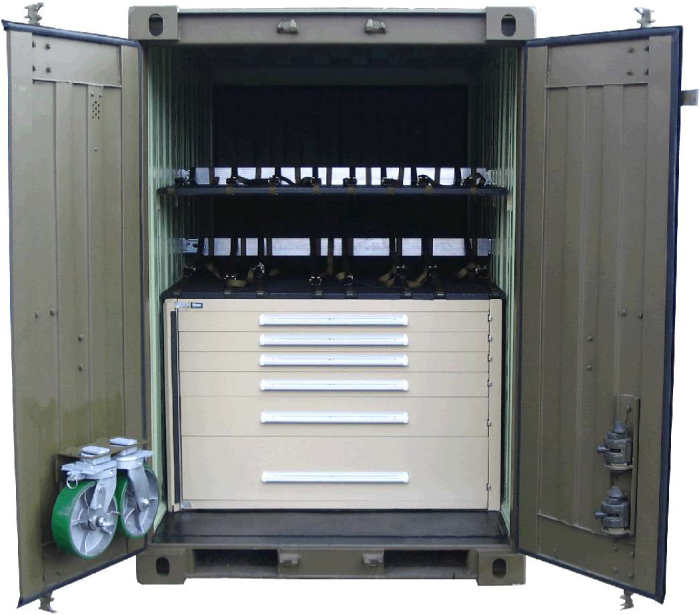

Comes with (1) cabinet with (6) drawers. Double doors on both sides.
SB812.CT1-6D.DLA BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, and swing doors on both sides
- Four-way fork lift pockets
- (1) heavy-duty steel Stanley Vidmar cabinets with 6 drawers each
- Wall tie down steel lashing rings, 2,000 lbs. capacity (20) total
- Adjustable shelving A-track, (4) sets: (10) vertical A-Track sections
- (5) Top lashing rings
- (5) Bottom lashing rings
- Customer choice exterior/interior paint color
- Transverse shelf halves with (1) set of (4) shelf brackets
- Shoring and Decking beams
- Web straps with ratchets
- (3) connecting coupler with bracket
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

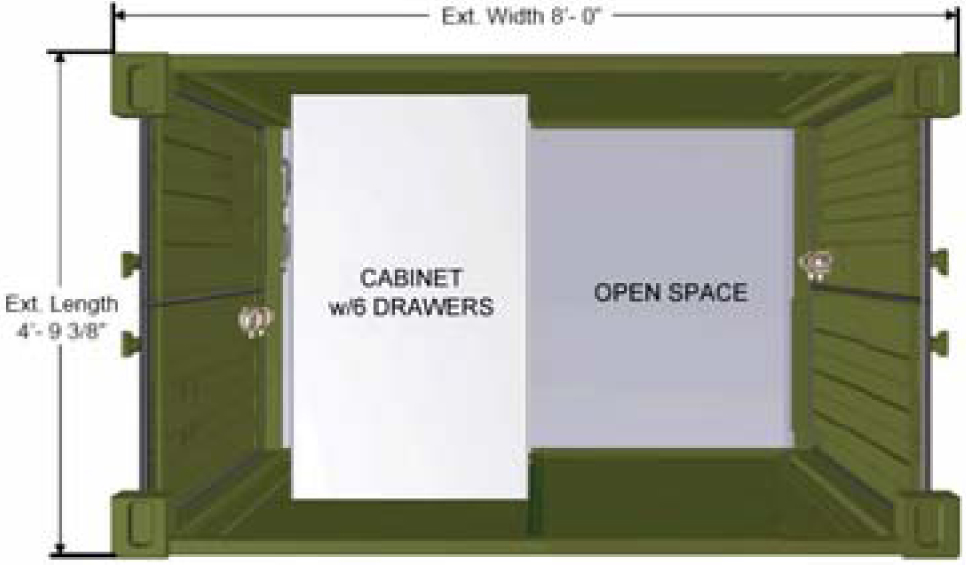

| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 4’ 9 3/8” | 4’ 7 3/4” | 6’ 10” | 6’ 3 1/16” | 8’ 0” | 7’ 6 9/16” | 5’ 11 3/16” | 4’ 5 5/8” |
| Metric | 1,457 | 1,417 | 2,083 | 1,907 | 2,438 | 2,300 | 1,808 | 1,362 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,000 | 9,200 | 11,200 | 220 Cu. Ft. |
| Kgs | 907 | 4,173 | 5,080 | 6.22 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
