SEA BOX | Quadon ISO Container with Six-Drawer Cabinets on Each Side

Quadon ISO Container with Six-Drawer Cabinets on Each Side

Part Number: SB812.SG.CT2-6D.DLA

NSN: 8145-01-618-9284, 8150-01-618-9848

Type: I

with 2 Cabinets Containing 6 Drawers each

one (1) cabinets with six (6) drawers. Adjustable shelving A-track sets. Double doors on both sides.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, roof, & swing doors on both sides
  • Heavy duty steel floor
  • Four-way fork lift pockets
  • (10) Columns of vertical E-Track
  • (20) Tie down rings
  • - (10) bottom row and (10) top row
  • (2) SB2345 aluminum manifest holders
  • Data Plate with NSN & UID Label
  • (3) SB2341: Horizontal twistlocks with (1) SB2342: storage bracket
  • Standard Green
  • CUSTOM FEATURES
  • (2) Stanley Vidmar 55”W x 33”H x 28”D (6) Drawer cabinet and divided partitions
  • Heavy duty cabinets with lifetime guarantee
  • Drawers feature lock bar and locking mechanism to secure them in closed or open position
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

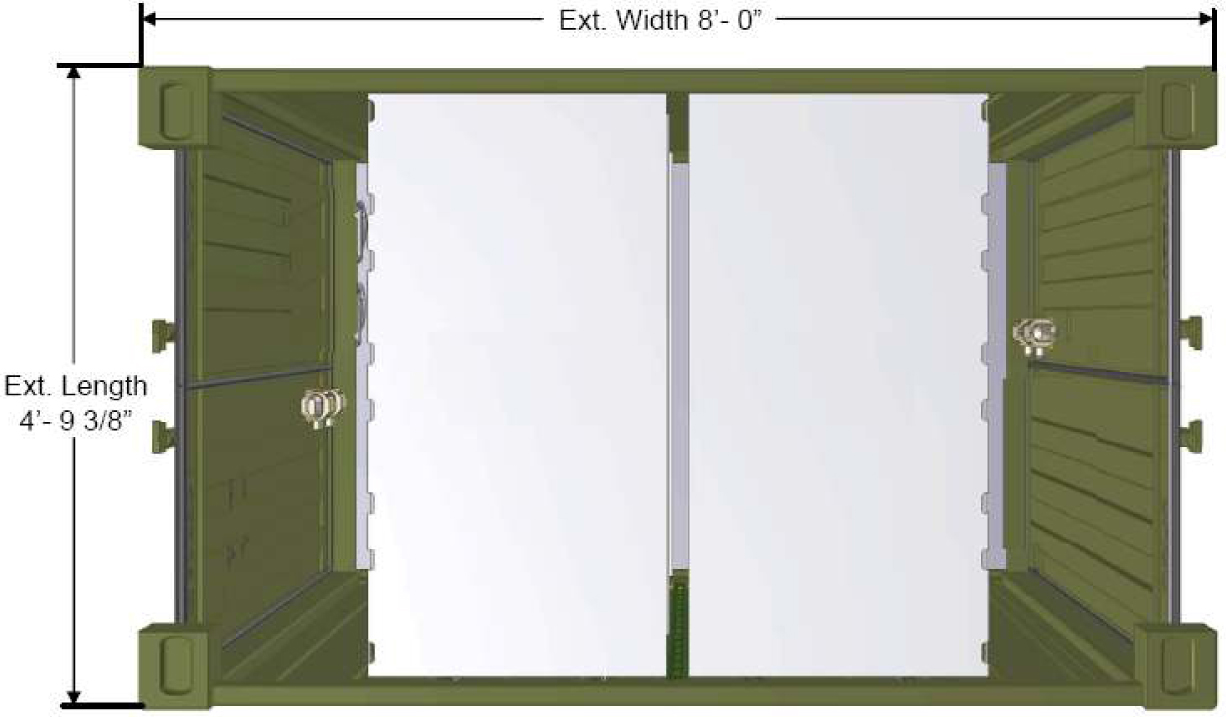

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 4’ 9 7/16” 4' 7 3/4" 6' 10" 6' 3 1/16" 8' 0" 7' 6 9/16" 5' 11 3/16" 4' 5 5/8"
Metric 1,459 1,417 2,083 1,907 2,438 2,438 1,808 1,362
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,000 9,200 11,200 220 Cu. Ft.
Kgs 907 4,173 5,080 6.22 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
