Two-Side Expandable Bicon Shelter
Part Number: SB841.0.3S1
Type: IBicon container with walls that expand to provide triple the internal space. (2) personnel doors, one on each end.
SB841.0.3S1 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- 10’ x 8’ x 8’ ISO Container
- Basic container is designed to comply with ISO/TC-104 test requirements

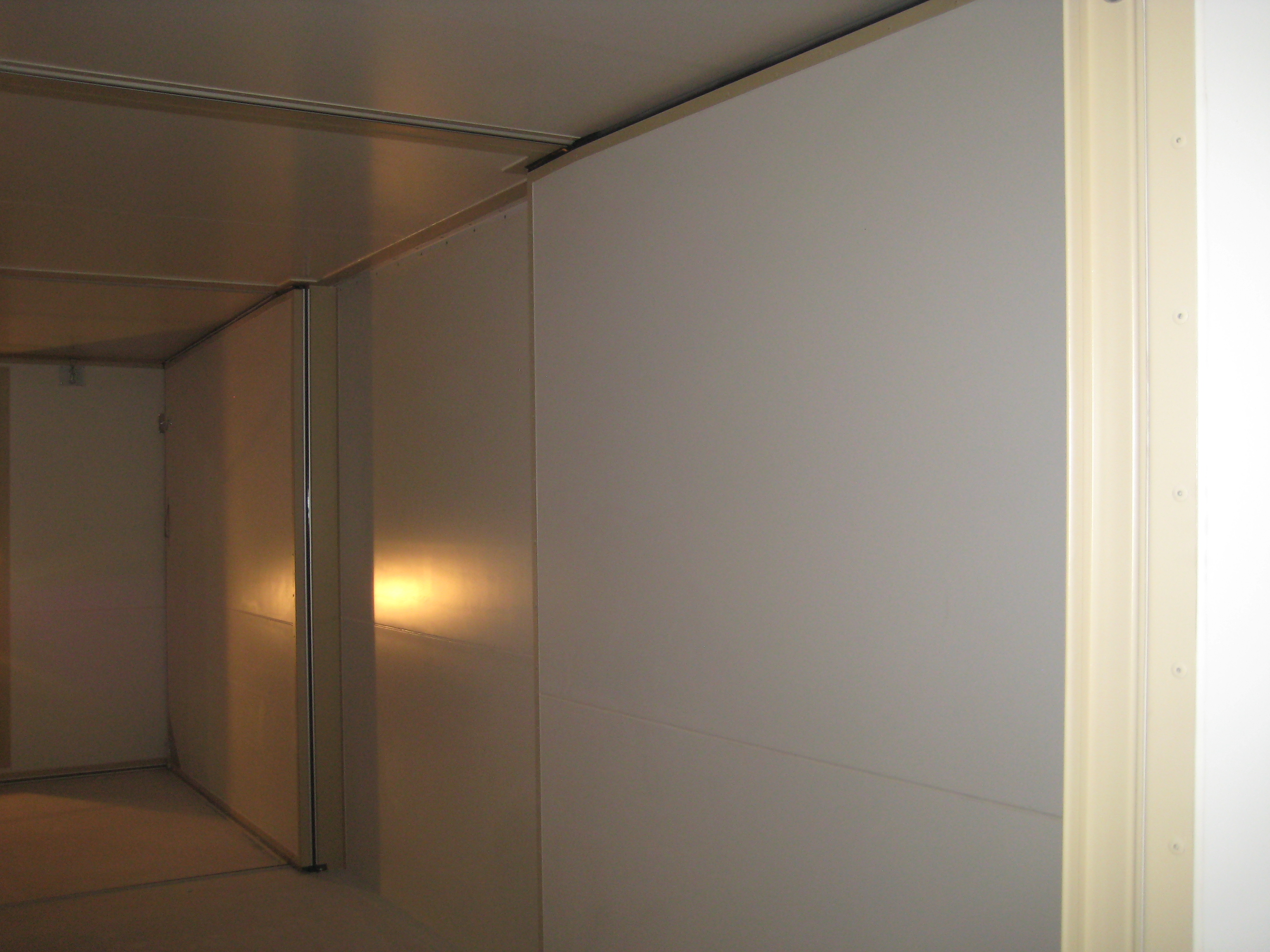

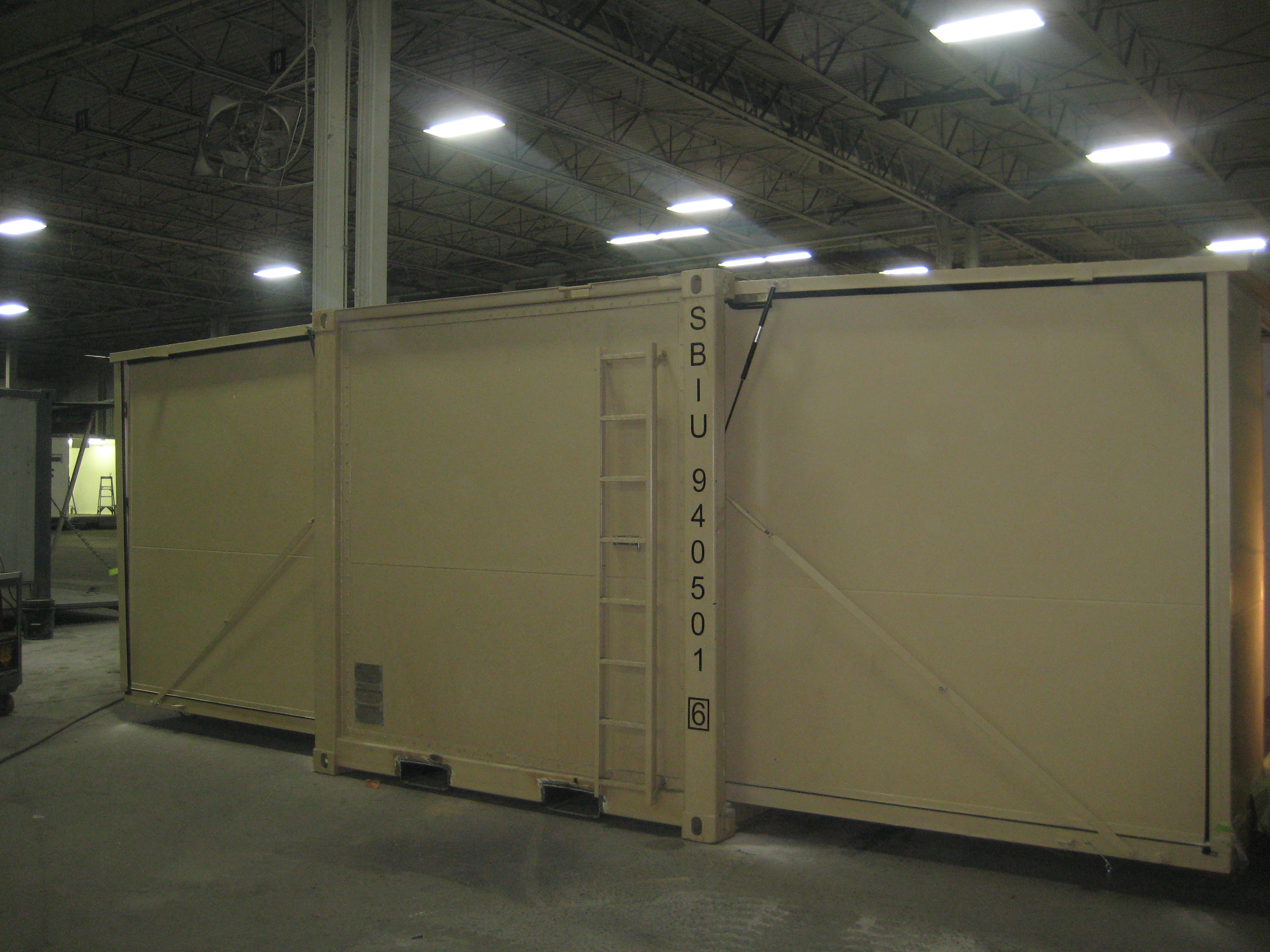

- Container walls expand to provide additional internal space
- (4) corner castings, ISO668 & ISO1161 compliant
- (2) each, standard ISO1496-2 forklift pockets
- Designed and constructed to allow handling in accordance to ISO3874
- (2) Personnel door, one per end
- CFC-Free polyurethane foam insulation.
- Zinc rich epoxy primer, acrylic high build epoxy top coat - Color per customer specification
- Center box length dimensions: Length: 9’ 2”/2,790, Height: 7’ 1 7 /16”/2,170, Width: 6 ‘ 11 7/8”/2,130
- Curb side box dimensions: Length: 8' 1 1/4"/2,470, Height: 6’ 11”/2,110, Width: 6’ 10 11/16”/2,100
- Road side box dimensions: Length: 8’ 1 1/4”/2,470, Height: 6’ 11”/2,110, Width: 6’ 10 11/16”/2,100
- Latrine/urinal/sink unit
- Shower/sink/bench unit
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 9’ 9 3/4” | 9’ 2” | 8’ 0” | 7’ 1 7/16” | 8’ 0” | 5’ 10” | 6’ 6” | 3’ 0” |
| Metric | 2,991 | 2,790 | 2,438 | 2,170 | 2,438 | 1,780 | 1,981 | 914 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 4,400 | 13,200 | 17,600 | 1,201 Cu. Ft. |
| Kgs | 2,000 | 6,000 | 8,000 | 34 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
