SEA BOX | 20’ x 8’6” ISO Maintenance Container

20’ x 8’6” ISO Maintenance Container

Part Number: SB8641

NSN: 8145-01-480-6877

Type: I

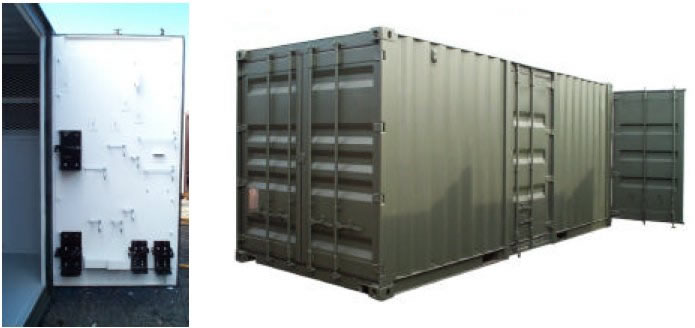

Workbench with storage cabinets and a tool mounting system. Custom shelves included. Double doors on one end and single door on one side.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides and roof
  • 14 gauge locking steel double end swing doors on both ends and one single side door
  • 1 1/8” thick marine plywood floors with 10 guage steel floor overlay
  • Tie down steel lashing rings, 4000 lbs. cap. each
  • Two-way laden fork lift pockets
  • (2) closing vents
  • (1) vent, pressure relief valve
  • Custom steel shelves with plywood surface
  • Stainless steel chain bins
  • Tool mounting system
  • Work bench with storage cabinets
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

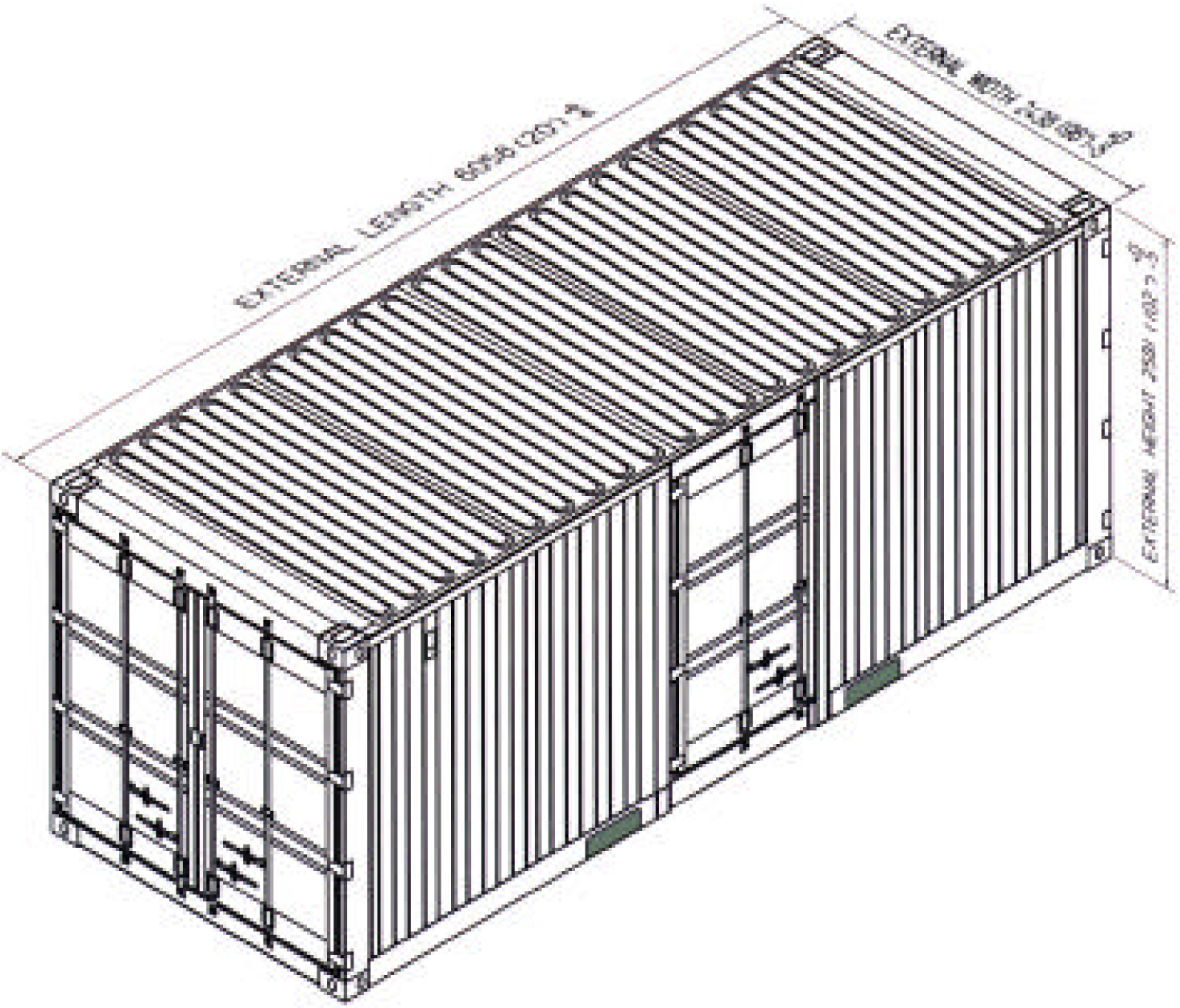

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 2 1/16” 8’ 6” 7’ 9 29/32” 8’ 0” 7’ 5 1/16” 7’ 5 3/4” 7’ 8 1/8”
Metric 6,058 5,844 2,591 2,385 2,438 2,438 2,280 2,340
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 6,740 46,170 52,910 1,113 Cu. Ft.
Kgs 3,057 20,943 24,000 31.5 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
