20’ ISO Collapsible Flatrack
Part Number: SB4712

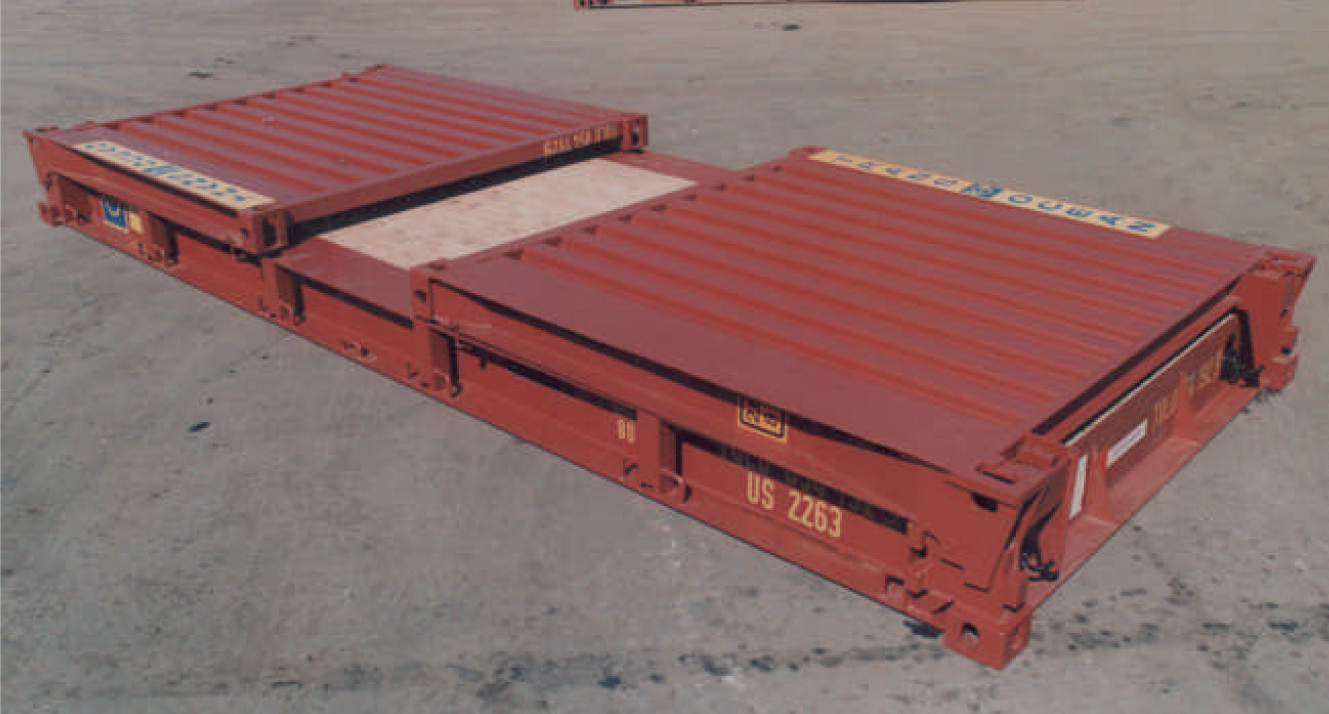

Type: IThe corrugated steel end walls fold on top of the base providing a five into 8ft 6in folded module. The platform is full width with no cut outs or recesses. The walls are spring counterbalanced for safety and ease of erection. Although superceded by the Type (10), the Type (1) flatracks have several optional features and can be provided with: • Tarpaulins • Bale bars and PLS interface rails in the base • Ramp end walls (see Type 7)
SB4712 Brochure
- Full width floor
- Large internal height
- Useful optional features of tarpaulins, bale bars and ramp ends
- Five units fold into 8’ 6”
- 9 high stacking at 24,000 Kgs
- TYPICAL LASHINGS AND INTERFACING
- Stanchions: 4 sockets per side size 85mm
- Lashing bars: 8 x 5000kg per side, 2 per end
- Floor: 45mm softwood planks 6mm gaps
- Fork pockets: 115 x 360mm
- Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent
- Header locks: 2 per end semi-automatic
- Corner locking: hammer locked conical pin
- Counterbalancing: coil tension spring
- Approvals: ABS, LRS, BV, UIC, CSC, TCT
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 8’ 6” | 7’ 5 1/2” | 6,058 | 7’ 7 21/32” | |||
| Metric | 6,058 | 2,591 | 2,270 | 2,438 | 2,328 | |||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 6,060 | 68,890 | 74,960 | |
| Kgs | 2,750 | 31,250 | 34,000 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
