Tricon ISO Container (Type 2) with Modular Cabinets
Part Number: SB822.0.CT2-4D
NSN: 8150-01-619-7755, 8150-01-619-9869
Type: IITricon Dry Freight ISO Cargo Container
Tricon with two (2) cabinets and four (4) drawers each.
SB822.0.CT2-4D BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Vents, (2) each
- Manifest box (2) each
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket (1) each
- Tan exterior paint
- CONTAINER
- Corrugated steel sides, roof + swing doors on both sides
- Heavy duty steel floor
- (4) way fork lift pockets
- CABINETS
- Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
- 1 each 60” Wide Base Cabinet with 4 Drawers
- 1 each 22.5” Wide Base Cabinet with 4 Drawers
- 1 each 60” Wide Top with 1 Swing Door and 2 shelves
- 1 each 22.5” Wide Top with 2 Swing Doors and 2 shelves
- 400lb. Capacity Drawers
- Custom configurations upon request
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

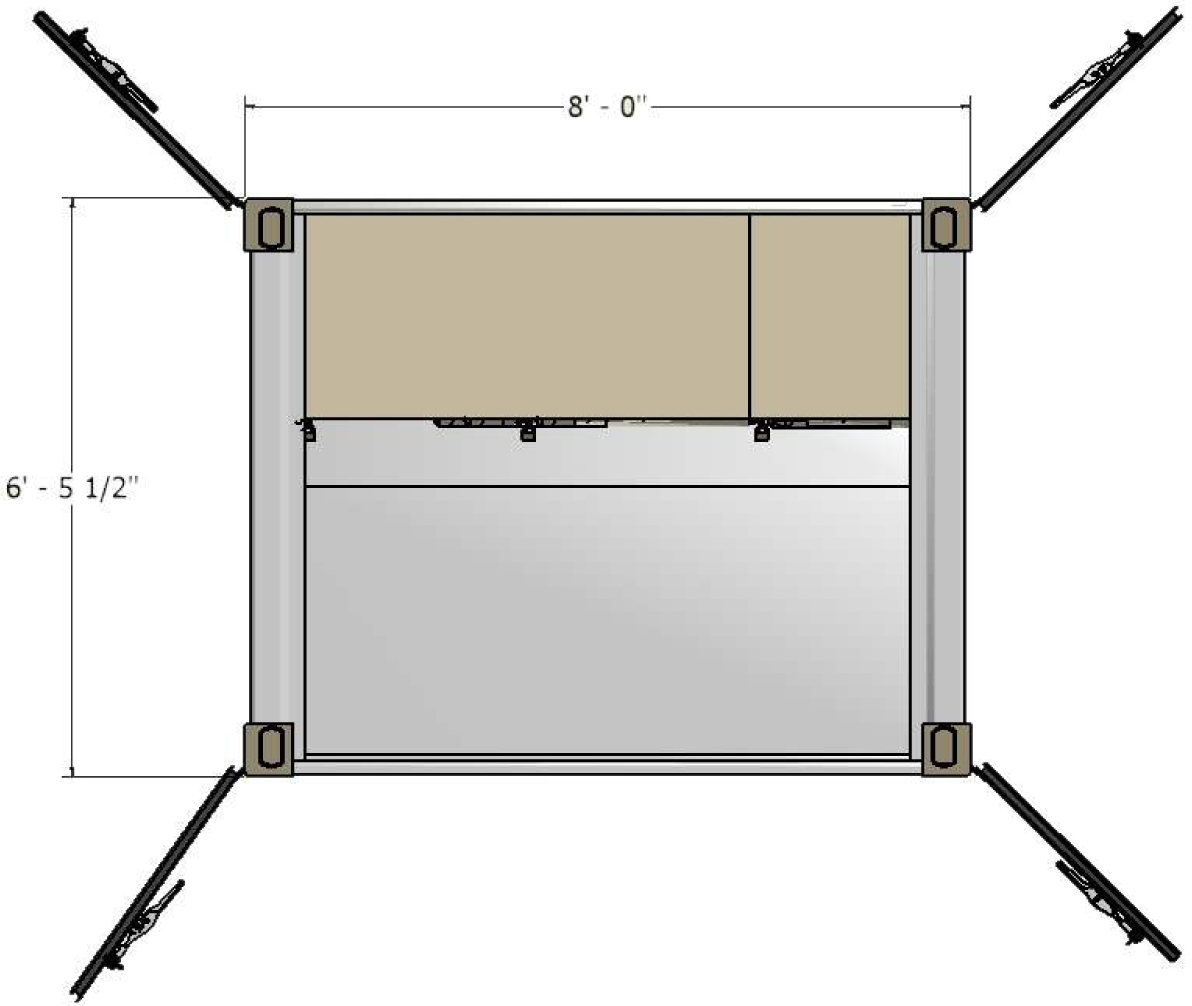

| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 9/16” | 6’ 3 25/64” | 8’ 0” | 7’ 5 9/64” | 8’ 0” | 7’ 5 17/32” | 7’ 1 43/64” | 6’ 1 25/32” |
| Metric | 1970.09 | 1914.92 | 2438.4 | 2264.17 | 2438.4 | 2274.09 | 2176.07 | 1874.04 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,700 w/ cabinets | 11,200 | 14,900 | |
| Kgs | 1678.29 | 5080.23 | 6758.53 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products
Tricon ISO Container (Type 2) Workshop Container Workshop (SB822.0.WS)
Type IITricon ISO Container (Type 2) Workshop... (SB822.0.WS)
Learn More Request A Quote

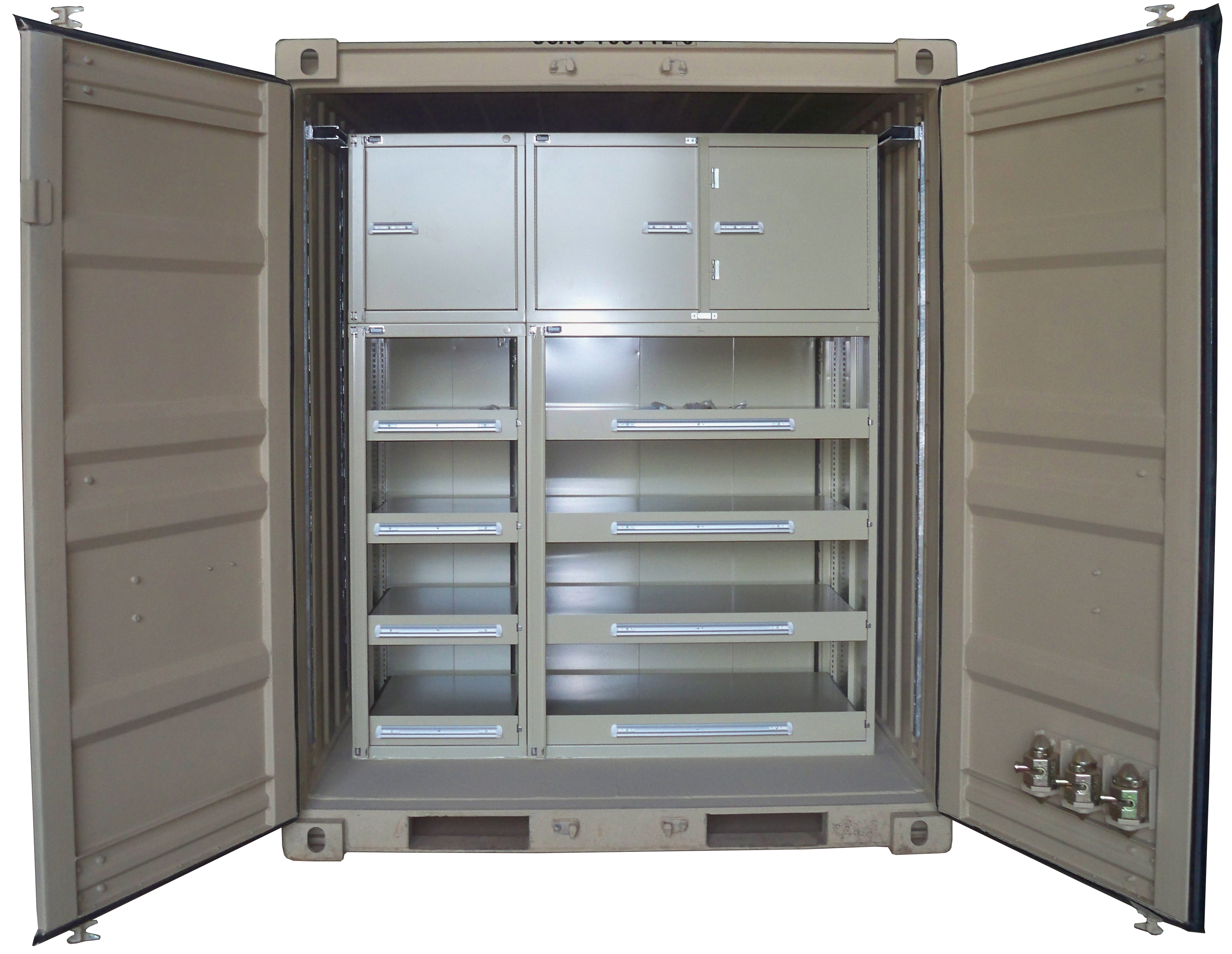

Tricon ISO Container (Type 2) with Cabinets and Roll Out Trays with Modular Cabinet Design (SB822.0.CT8-4RO.ST.DLA)
