20’ ISO Flatrack - Domino Type (3) with Free Standing Corner Posts
Part Number: SB4732

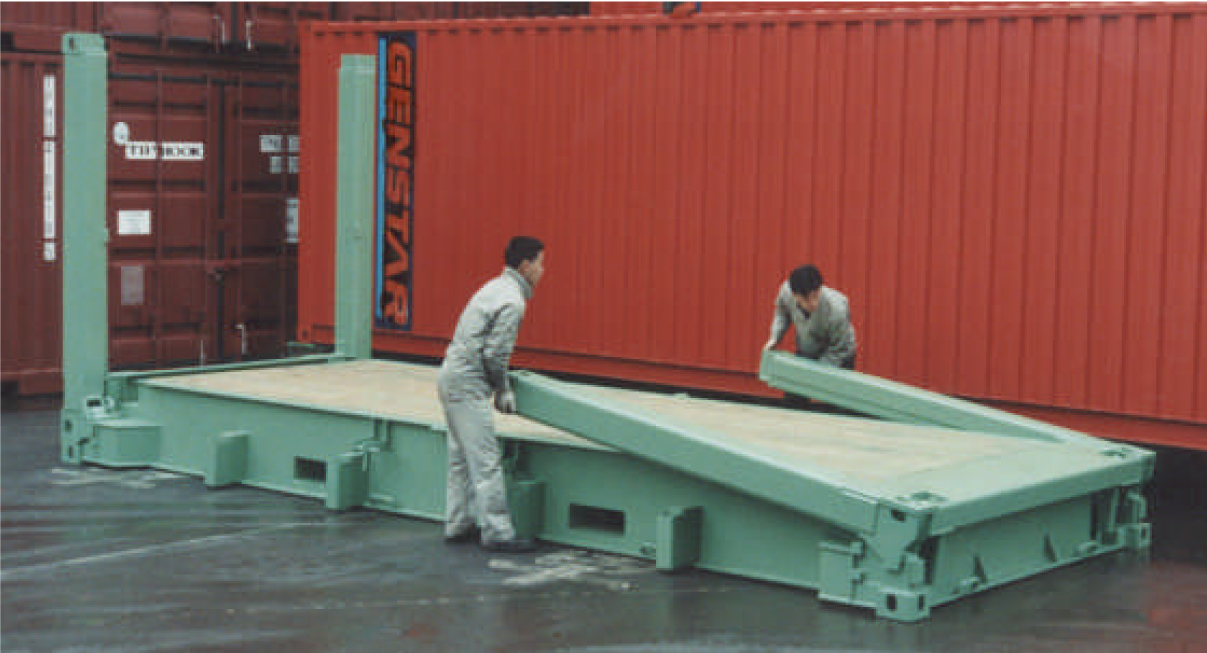

Type: IThe free standing corner post unit is unique to CSA in having full ISO transverse and longitudinal racking strength and rigidity. This unit is not to be confused with others having lightweight posts and reduced strength. These units are in service throughout the world with companies such as Evergreen, Samskip and Genstar.
SB4732 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Ideal for over width, over length cargo
- Can be fitted with telescopic posts
- Mix and match with Type (4) end wall
- Typical cargo of pipes, bars, vehicles, boats and odd shaped cargo with projecting parts

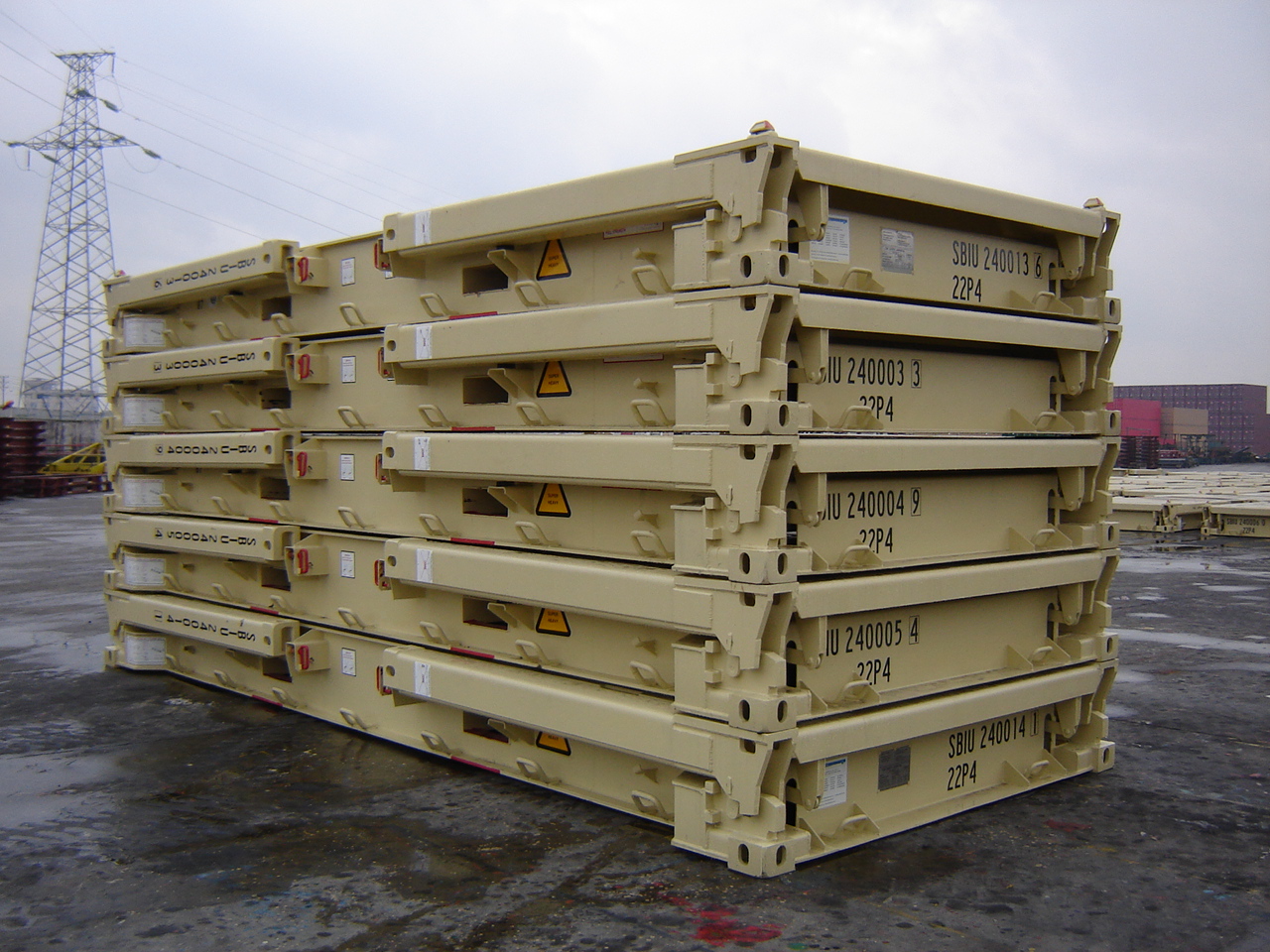

- Five units fold into 8’ 6”
- 9 high stacking at 24,000 Kgs
- Internal Dimensions: Height at Post: 6’ 9 39/64”/2,073, Platform Width: 6’ 7”/2,006, Mid-Post to Post: 6’ 7 1/2”/2,018
- External Folded Dimensions: 1’ 8 25/64”/518
- TYPICAL LASHINGS AND INTERFACING
- Stanchions: 4 sockets per side size 85mm
- Lashing bars: 8 x 5000kg per side, 2 per end
- Floor: 45mm softwood planks 6mm gaps
- Fork pockets: 115 x 360mm
- Twistlocks: 1 piece forged lift element 30 degree stainless steel detent
- Header locks: 2 per end semi-automatic
- Corner locking: Conpac MK2 sliding post
- Approvals: ABS, LRS, BV, UIC, CSC, TCT
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 8’ 6” | 8’ 0” | |||||
| Metric | 6,058 | 2,591 | 2,438 | |||||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 7,060 | 67,900 | 74,960/ Load Over 2m: 44,092 | |
| Kgs | 3,200 | 30,800 | 34,000/ Load Over 2m: 20,000 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
