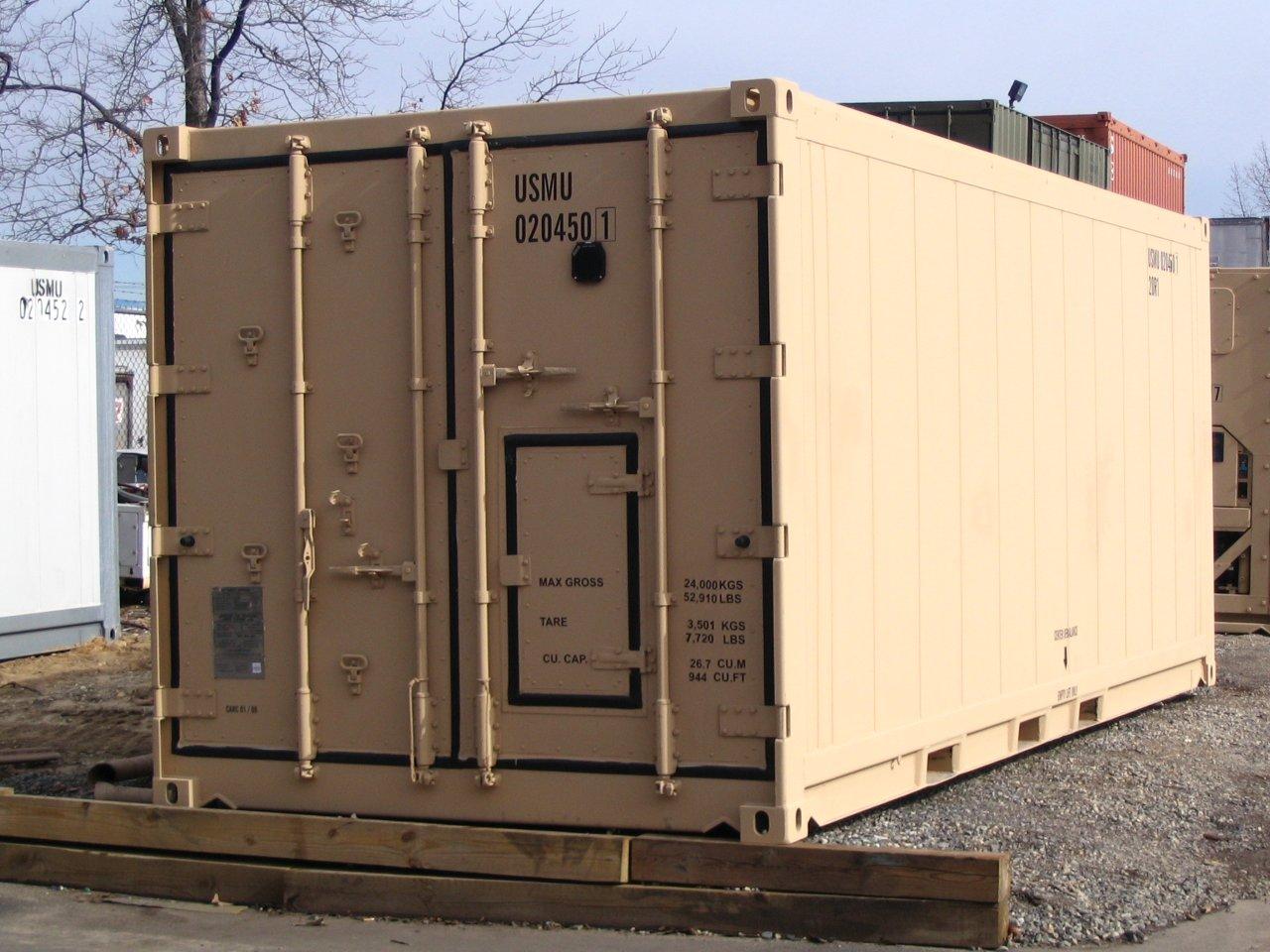

20’ x 8’ Refrigerated ISO Container - Large Field Refrigeration System (LFRS)
Part Number: SB541.0.LFRS
Type: IDouble doors on one End. Large Field Refrigerated System.
SB541.0.LFRS BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Double swing doors with padlocks
- Air curtain
- Emergency escape hatch
- Forklift pockets (2 sets; 1 laden, 1 set special unladen)

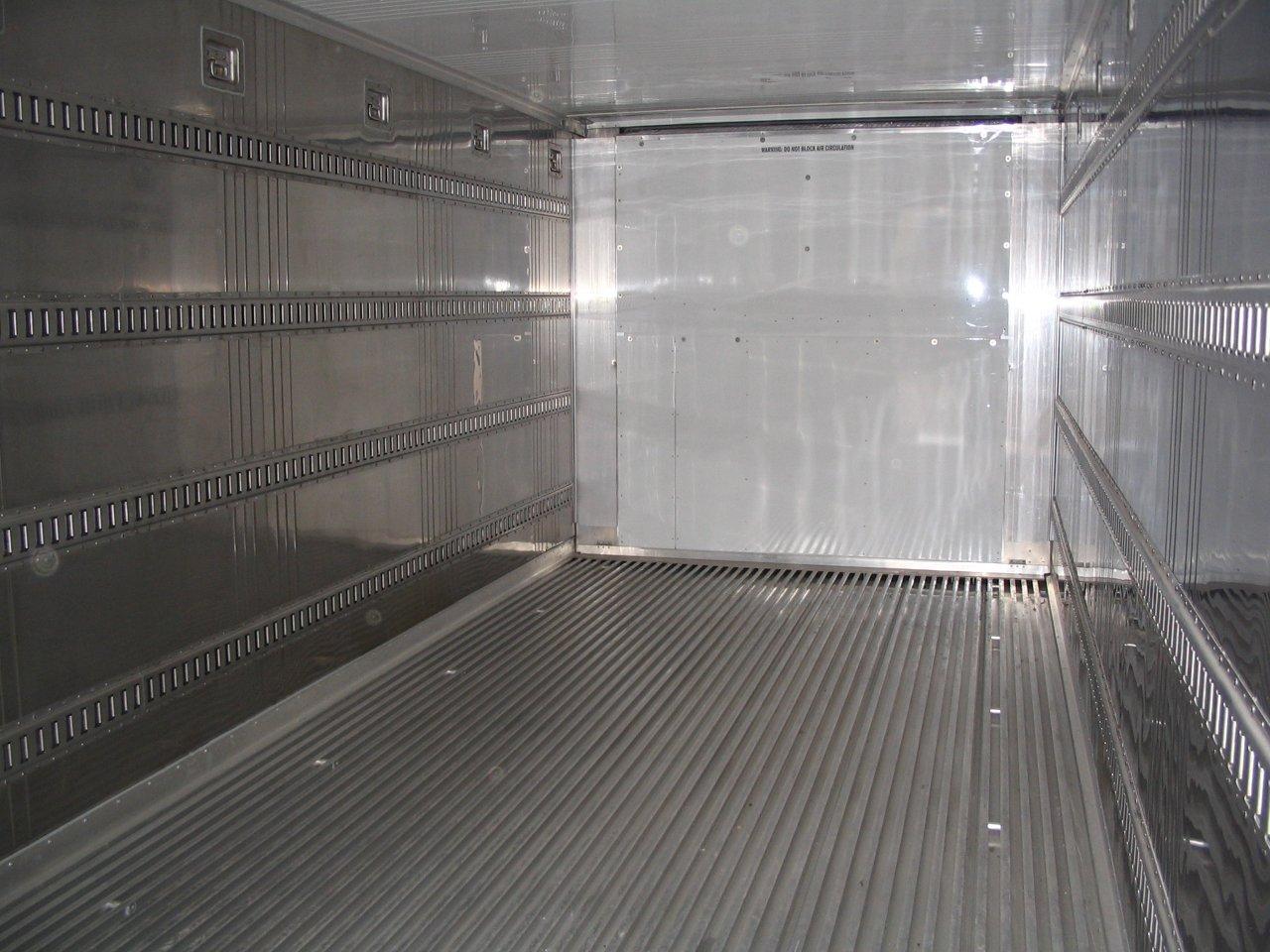

- Aluminum T-grade floors
- Four (4) rows of “E” Track cargo restraint system along interior side walls of container (these may all be used for numerous tie downs)
- Six (6) cargo tie downs (along both wall in the floor)
- Six (6) cargo tie downs high up on both walls (24 total tie down)
- Interior electrical lighting system
- Access steps to non-slip roof
- Pressure relief port installed in rear cargo door panel
- Carrier refrigerated machinery features electrical supply as follows: 180/250, 360/500 Volts AC, 3 phase, 50/60hz cycle
- Temperature range from -22°F to +86°F
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19' 10 1/2" | 18’ 3/8” | 8’ 0” | 6' 11 5/16" | 8’ 0” | 7' 6 5/16" | 6' 9 25/32" | 7' 6 5/16" |
| Metric | 6,058 | 5,496 | 2,438 | 2,116 | 2,438 | 2,294 | 2,077 | 2,294 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 7,720 | 45,190 | 52,910 | 944 Cu. Ft. |
| Kgs | 3,502 | 29,498 | 24,000 | 26.7 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products
Large Field Refrigeration System Shelving Kit (SB541.0.LFRS-SK)
Large Field Refrigeration System Shelving Kit... (SB541.0.LFRS-SK)
Learn More Request A Quote

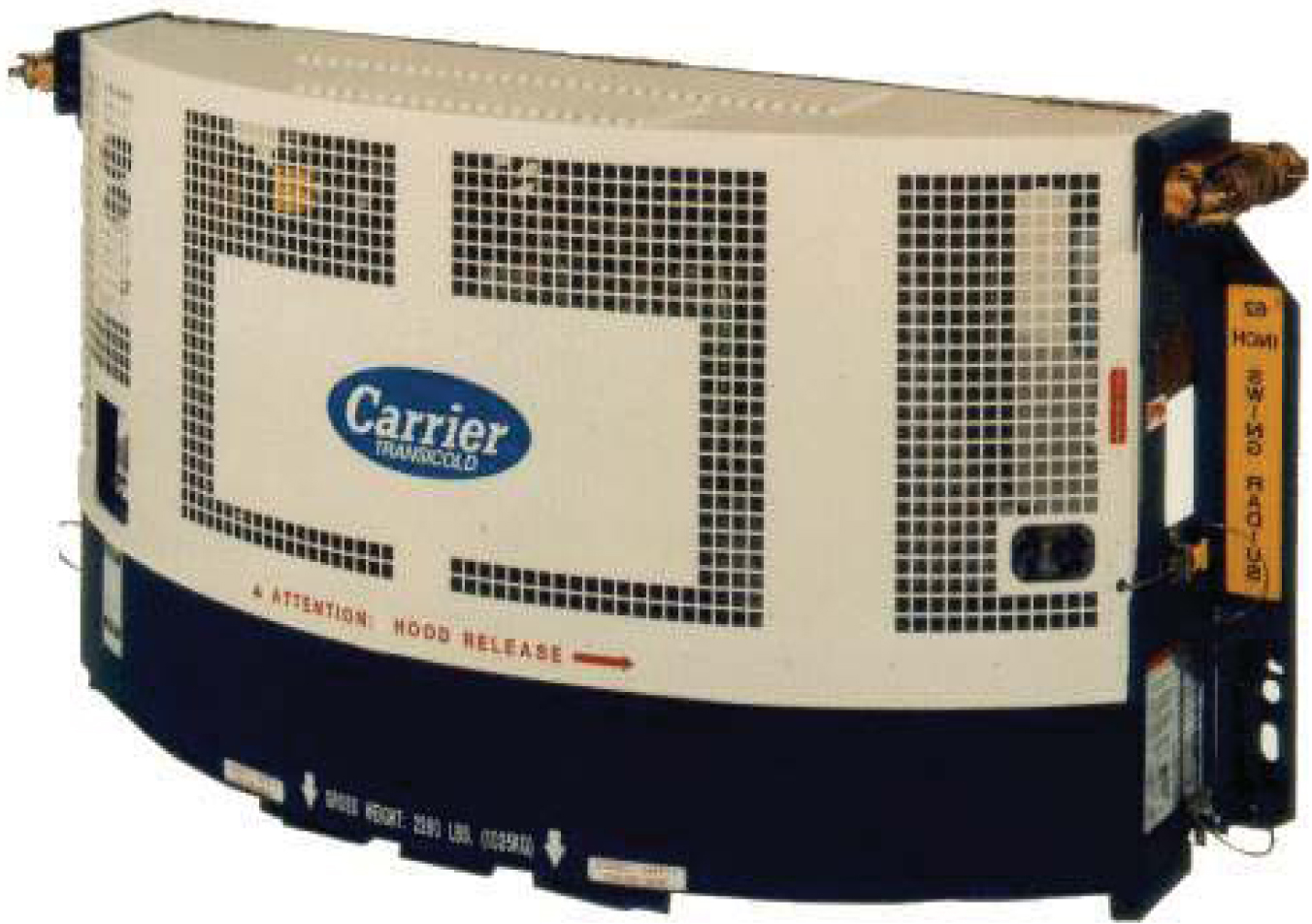

Clip On Generator Set - Tier 4 (SB572.T4)
