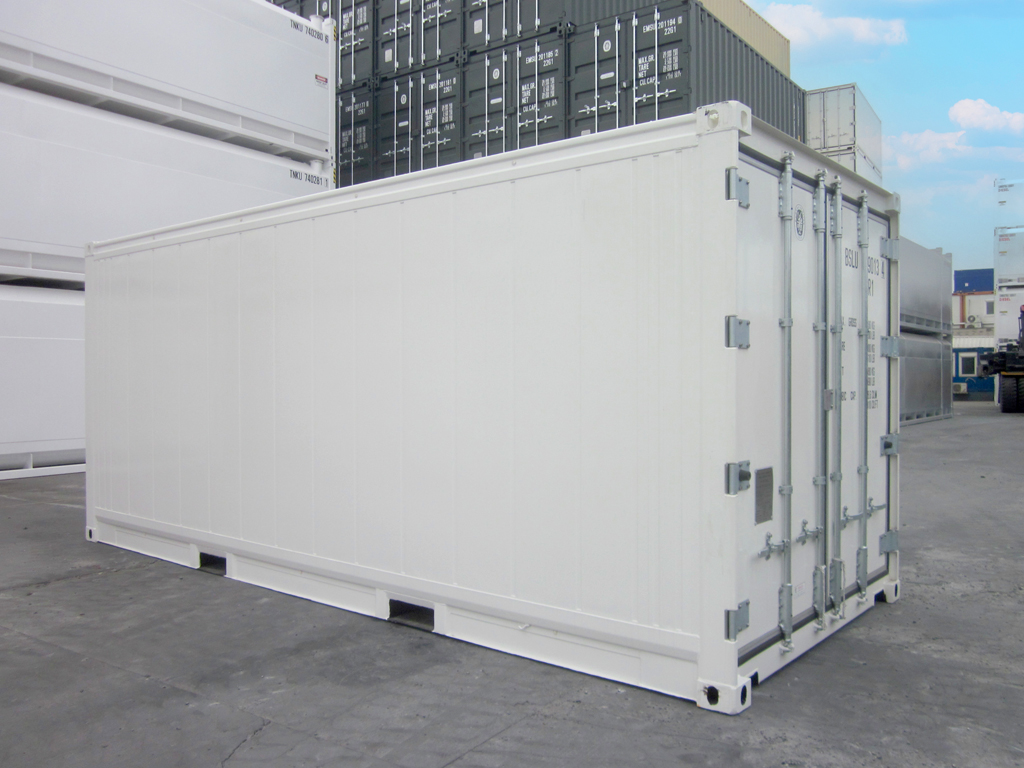

SEA BOX | 20’ x 8’6” Refrigerated ISO Container

20’ x 8’6” Refrigerated ISO Container

Part Number: SB541.6

Type: I

PDF BrochureTechnical Manual

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

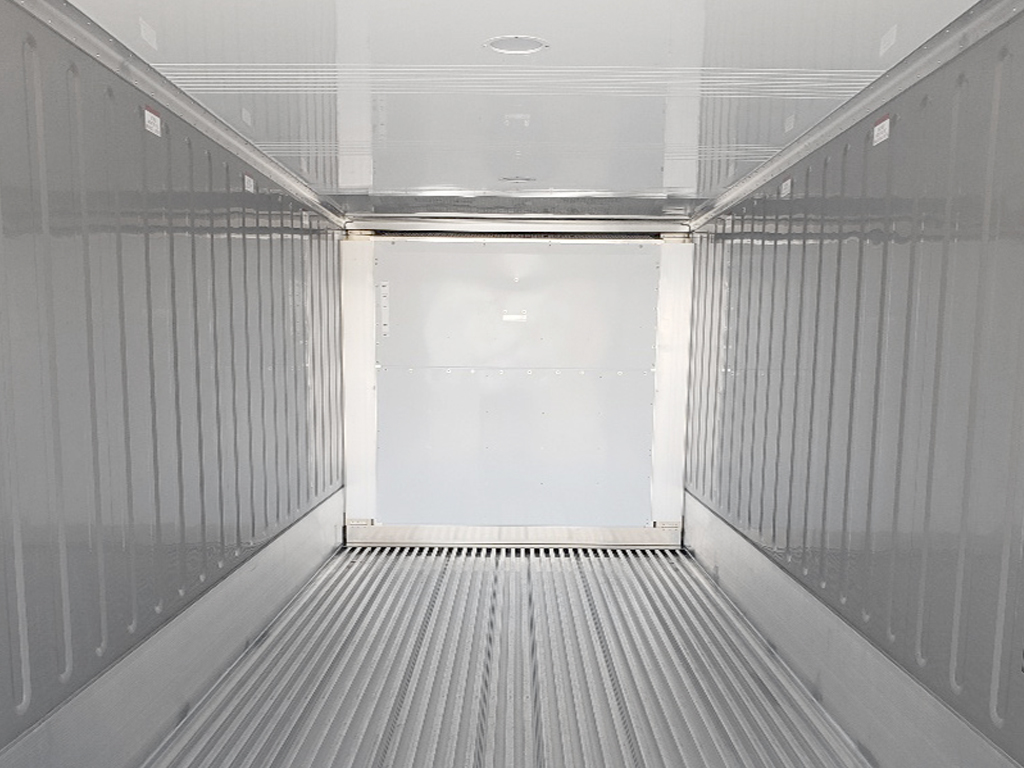

  • Stainless steel interior wall lining
  • Double swing doors on one end
  • Aluminum T-Grade floors
  • (2) fork lift pockets
  • Carrier refrigeration unit (Model #69NT-40)
  • Temperature range from –20°F to 70°F
  • Dual voltage 208/230, 380/460 Volts AC, 3 phase, 50 or 60 cycle
  • Interior light with switch
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 18’ 37/64” 8’ 6” 7’ 5 31/64” 8’ 0” 7’ 6 5/16” 7’ 5 9/64” 7’ 6 5/32”
Metric 6,058 5,501 2,591 2,273 2,438 2,438 2,264 2,290
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 6,370 60,830 60,830 1,018 Cu.Ft.
Kgs 2,890 27,590 30,480 28.7 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS

Related Products

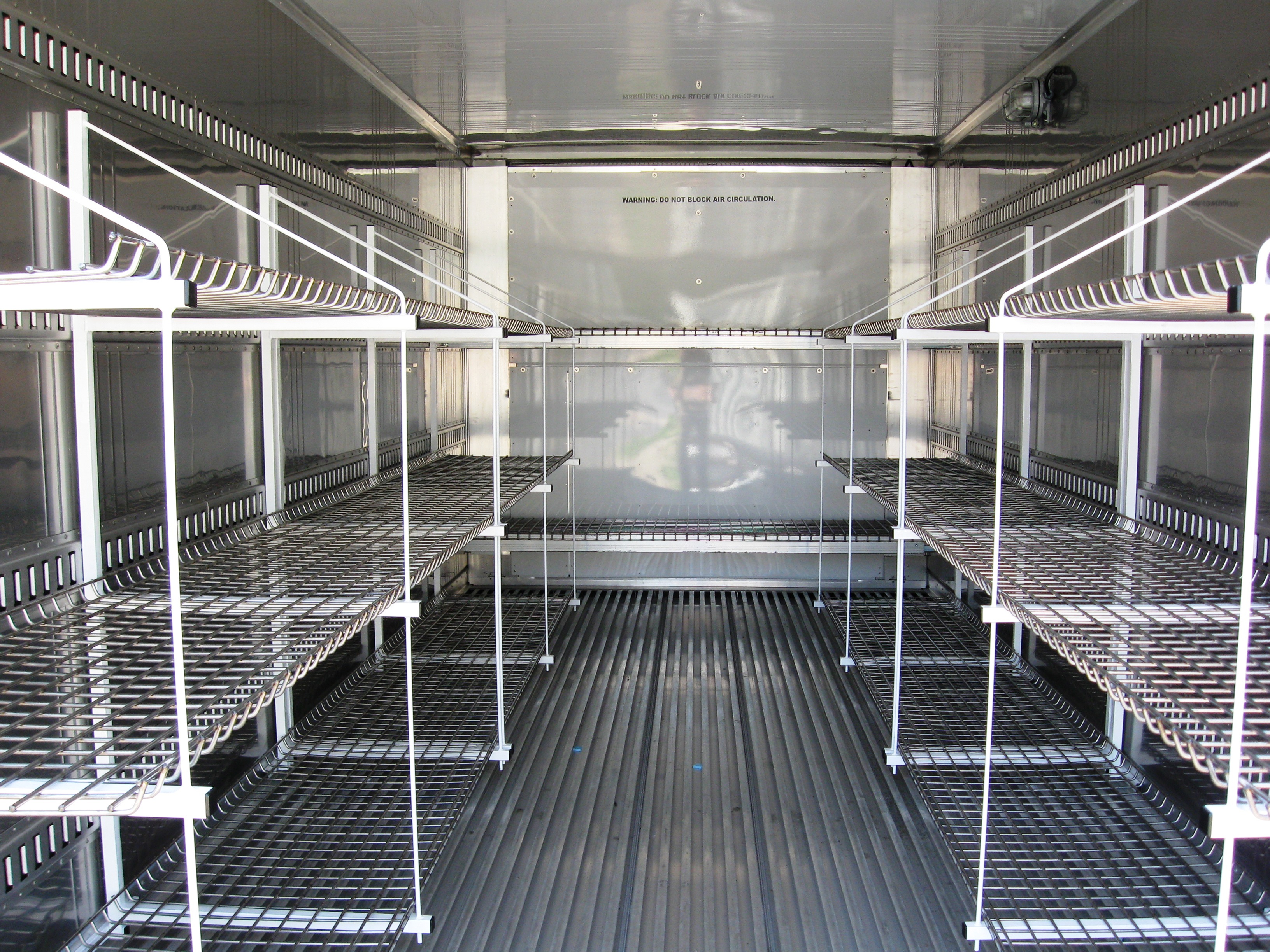

20’ x 8’6” Refrigerated ISO Container with Shelves (SB541.6.ST.FLS)
