Underslung Generator Set

Underslung Generator Set

Part Number: SB573

Type: I

POWER OUTPUT 15kW - 18.7kva - (0.8p.f.) @ 1800 rpm 12.5kW - 15.6kva - (0.8p.f.) @ 1500 rpm VOLTAGE OUTPUT 230V @ 60Hz - 180V @ 50Hz 460V @ 60Hz - 380V @ 50Hz

PDF Brochure SB573 Brochure
If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • The “underslung” generator set is designed to mount under the chassis trailer frame. The air cooled diesel generator can provide continuous (dual voltage) electrical power to intermodal refrigerated containers.
  • The unit is self contained with an integral 50 U.S. gallon (189 liter) fuel tank combined with the engine, generator, battery and all operating controls.
  • 230V Receptacle 250VAC, 50 amps, Carrier P/N 22-01286-00 (Micpo P/N 1101-02)
  • 230V Receptacle 250VAC, 60 amps, Carrier P/N 66U1-3863-1 (Micpo P/N 1102-01)
  • 460V Receptacle CEE-17, 460VAC 32 amps Carrier P/N 22-01561-00
  • 230V Standard 50 amp plug - 230V Standard 50 amp plug - 460V Standard 32 amp plug
  • This unit is designed for quick fitting to nearly all standard ISO chassis trailers
  • ENGINE Deutz model F31-912 air cooled, three cylinder, 173 cubic inch (2836cc) displacement, four cycle engine 31.5 BHP continuous.
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 7’ 1” 1’ 11” Depth: 2' 11"
Metric 2,159 584 Depth: 889
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 1,500/1,975
Kgs 680/ 896

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS

Related Products

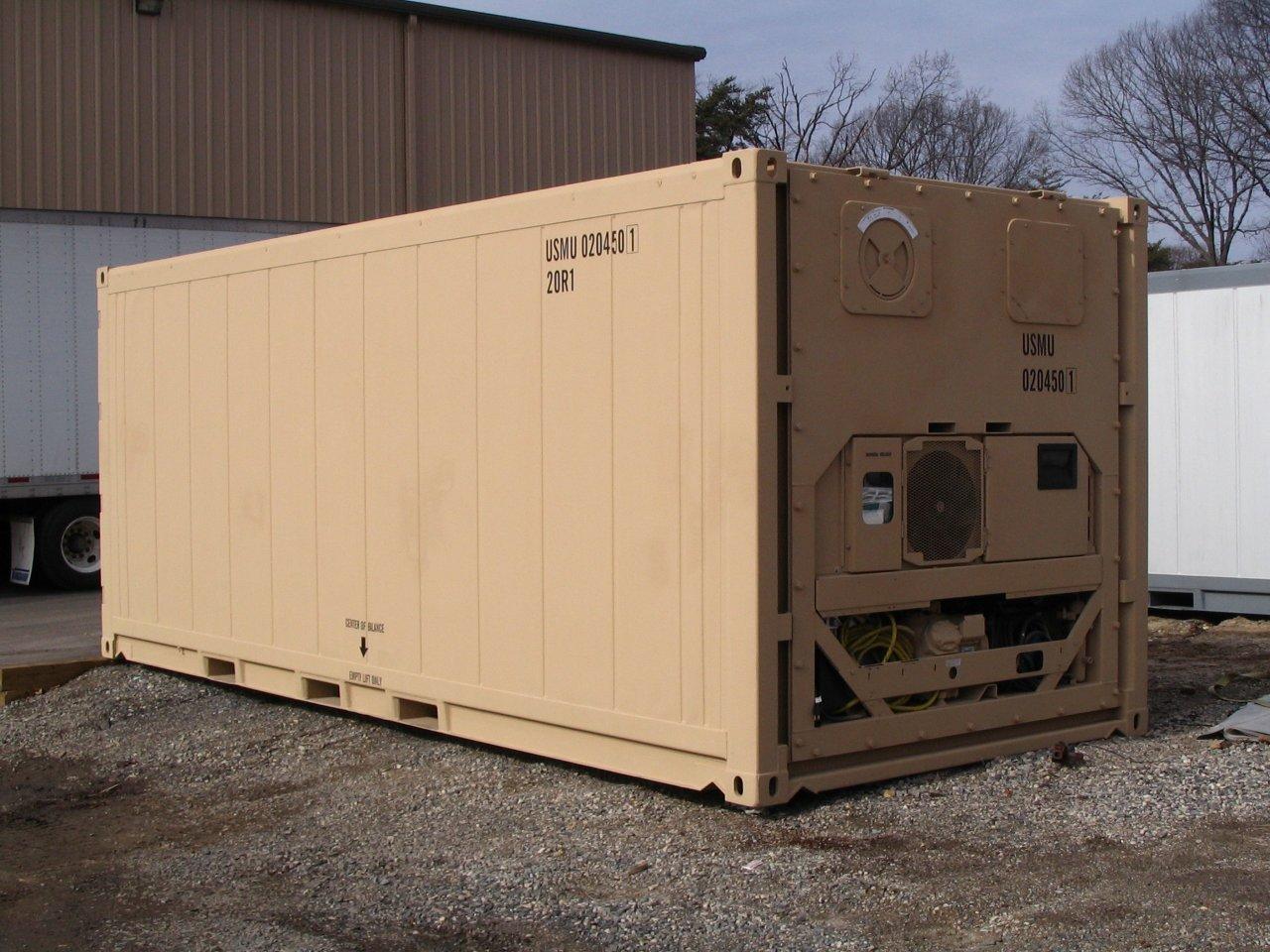

20’ x 8’ Refrigerated ISO Container - Large Field Refrigeration System (LFRS) (SB541.0.LFRS)

Type I

20’ x 8’ Refrigerated ISO Container - Large Field Refrigeration System (LFRS)... (SB541.0.LFRS)

Learn More Request A Quote

Tricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS) (SB531.0.SFRS)

Type I

Tricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS)... (SB531.0.SFRS)

Learn More Request A Quote

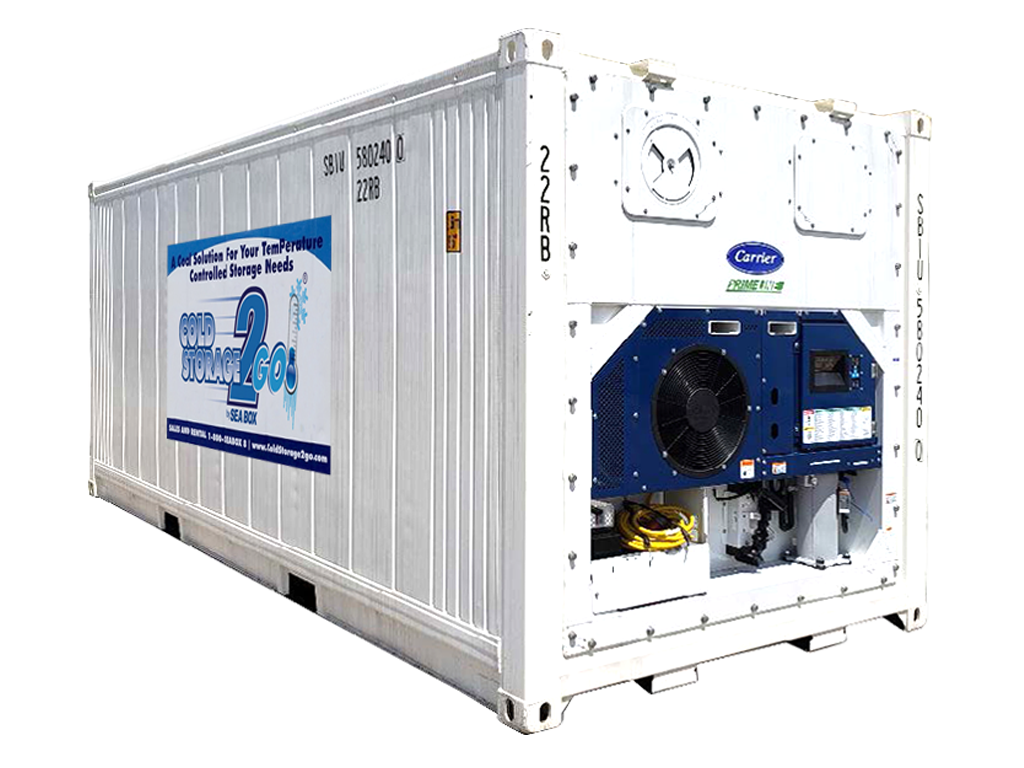

20’ x 8’6” Refrigerated ISO Container (SB541.6)
