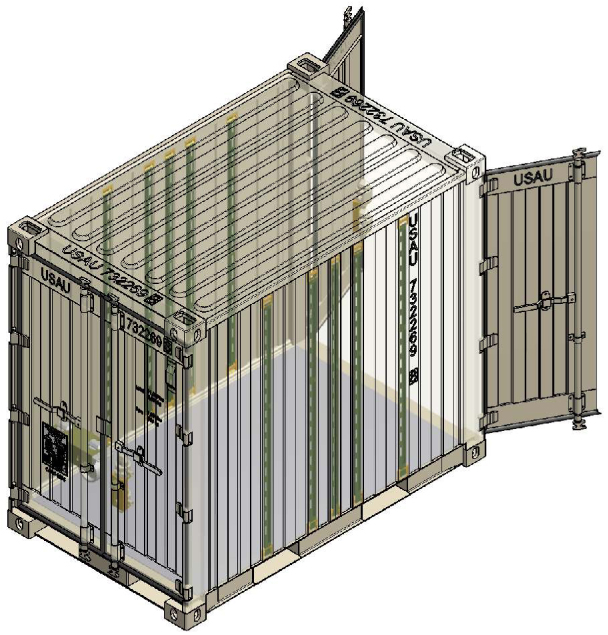

Quadcon Dry Freight ISO Container with Five-Drawer Cabinet
Part Number: SB812.CT1-5D.DLA
NSN: 8150-01-618-9788, 8150-01-618-9273
Type: IIwith 1 Cabinet and 5 Drawers
Comes with one (1) cabinet and five (5) drawers. Double doors on both sides. Green paint.
SB812.CT1-5D.DLA BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, and swing doors on both sides
- Four-way fork lift pockets
- (1) heavy-duty steel Stanley Vidmar Cabinets with 5 Drawers each with Divider Partitions
- Wall tie down steel lashing rings, 2,000 lbs. capacity (20 total)
- Adjustable shelving A-track (4) sets: (10) vertical A-track sections (5 per side)
- (5) Top lashing rings
- (5) Bottom lashing rings
- OD Green #34088 exterior, Sea Foam Green #24533 interior paint
- 3 Connecting coupler with bracket
- Document holder
- Quadcon containers are manufactured to ISO standards for 9 high stacking
- Dry freight container, all Corten Steel Monocoque construction
- Conforming to ISO 668 + 1496 CSC Certified
- Transverse shelf halves with 1 set of 4 shelf brackets
- Shoring and decking beams
- Web straps with ratchets
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

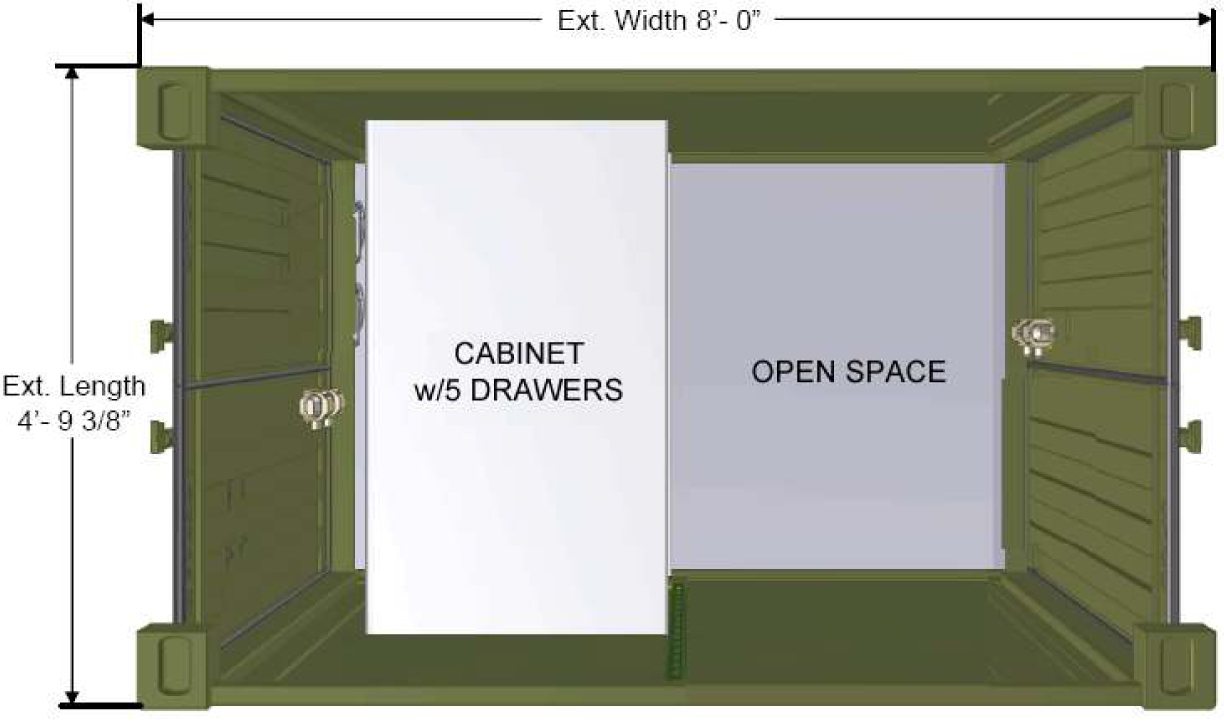

| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 4’ 9 3/8” | 4’ 7 3/4” | 6’ 10” | 6’ 3 1/16” | 8’ 0” | 7’ 6 9/16” | 5’ 11 3/16” | 4’ 5 5/8” |
| Metric | 1,457 | 1,417 | 2,083 | 1,907 | 2,438 | 2,300 | 1,808 | 1,362 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,000 | 9,200 | 11,200 | 220 Cu. Ft. |
| Kgs | 907 | 4,173 | 5,080 | 6.22 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
