Quadcon Dry Freight ISO Container (6’10"H) with Roll-Up Door on One Side and Cargo Doors on One Side

Part Number: SB812.RD

Type: II

Overhead Roll-Up Door on One Side and Double Cargo Doors on Other Side

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, and roof

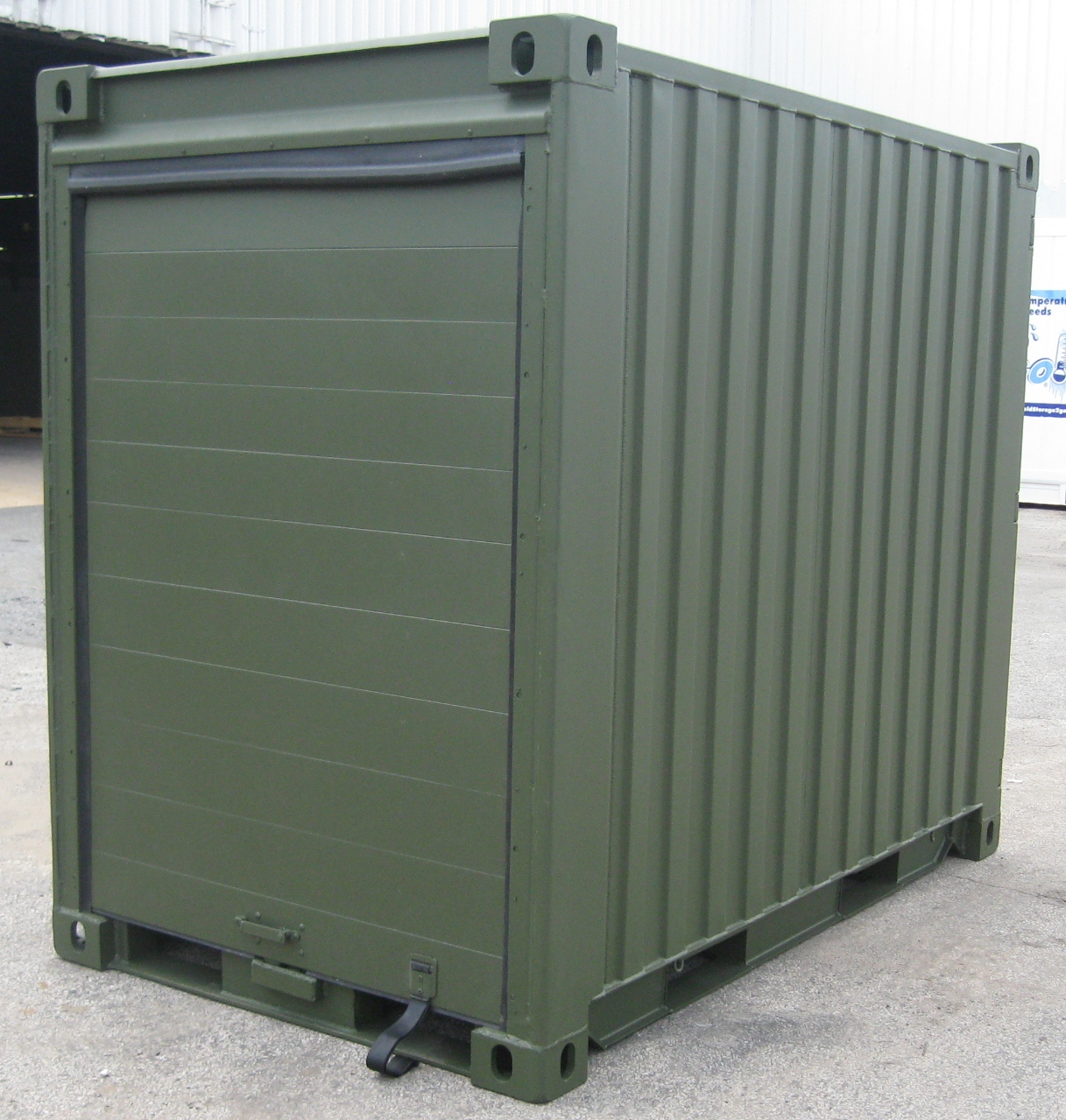

  • Heavy-duty, aluminum roll up door on one side, ideal for on-board ship access
  • Roll back door panels have no welded joints to crack or corrode
  • Roll-up door features continuous hinge panel joints designed to provide a watertight seal for maximum cargo protection
  • Belted rubber side seals on vertical track for additional weatherproofing

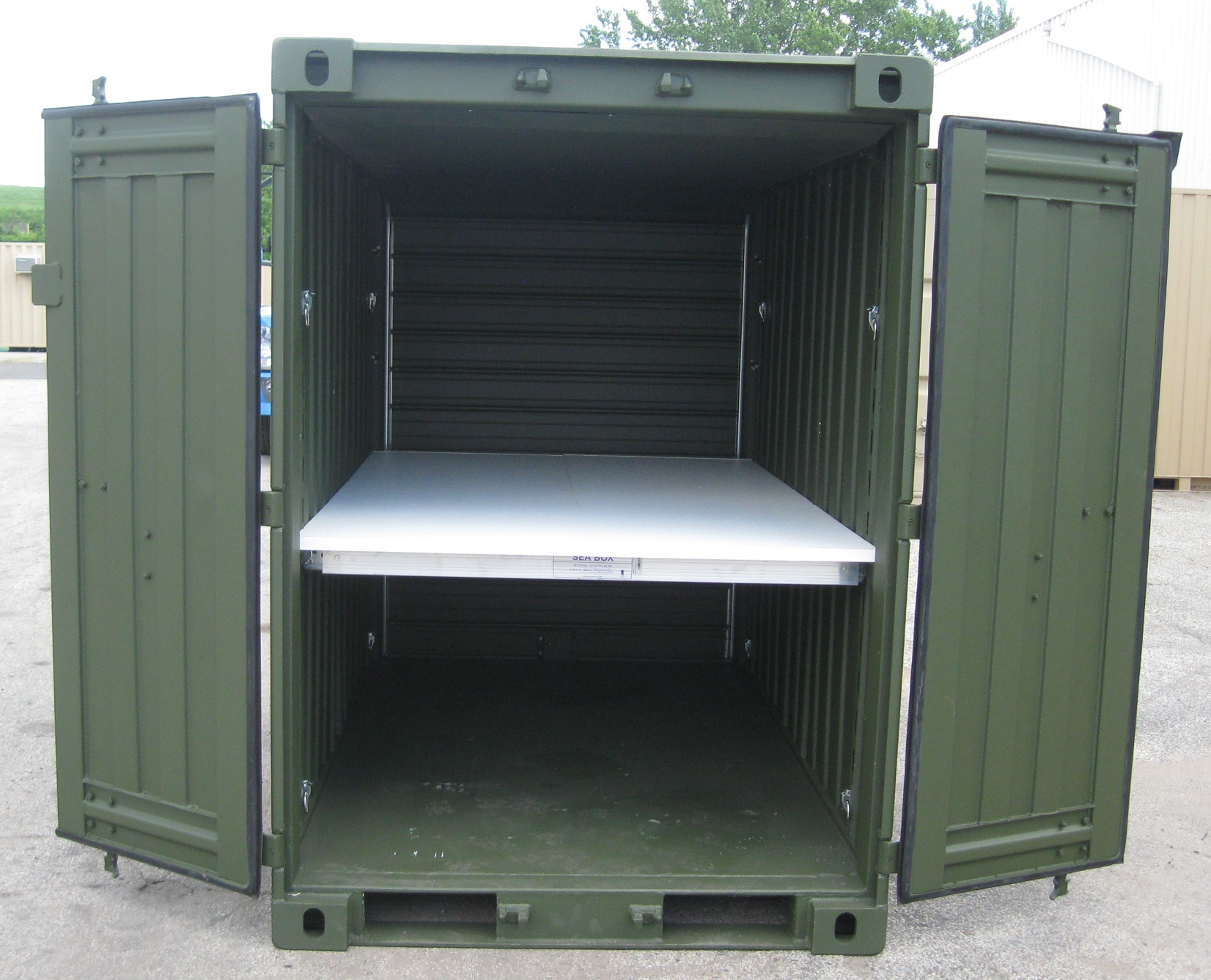

  • Double Cargo doors on one side
  • (8) Total wall tie down steel lashing bars, 2,000 lbs. cap., tested at 3,000 lbs. each
  • 8 Columns Vertical E-Track (4 per side)
  • Sheet metal ceiling cover plate
  • Heavy duty steel floor
  • Four-way fork lift pockets
  • CSC Tested and Certified
  • Connecting couplers, (3) per Quadcon
  • Connecting coupler storage bracket, (1) each
  • Overhead Door Opening Dimensions - Height: 5'6 5/8"/1,692, Width: 4'1 21/32"/1,261
  • Shelving
  • Adaptor Plate for Removable Storage Modules
  • Additional tie down features
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 4’ 9 3/8” 4’ 7 25/32” 6’ 10” 5’ 10” 8’ 0” 7’ 7 21/64” 5’ 11 3/16” 4’ 5 5/8”
Metric 5.83Cu. M. 1,417 2,083 1,778 2,438 2,438 1,808 1,362
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,200 4,410 6,610 206 Cu. Ft.
Kgs 998 2,000 2,998 5.83Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS

Related Products

Plymetal Full Shelf for Quadcon (SB3631)

Plymetal Full Shelf for Quadcon... (SB3631)

Learn More Request A Quote

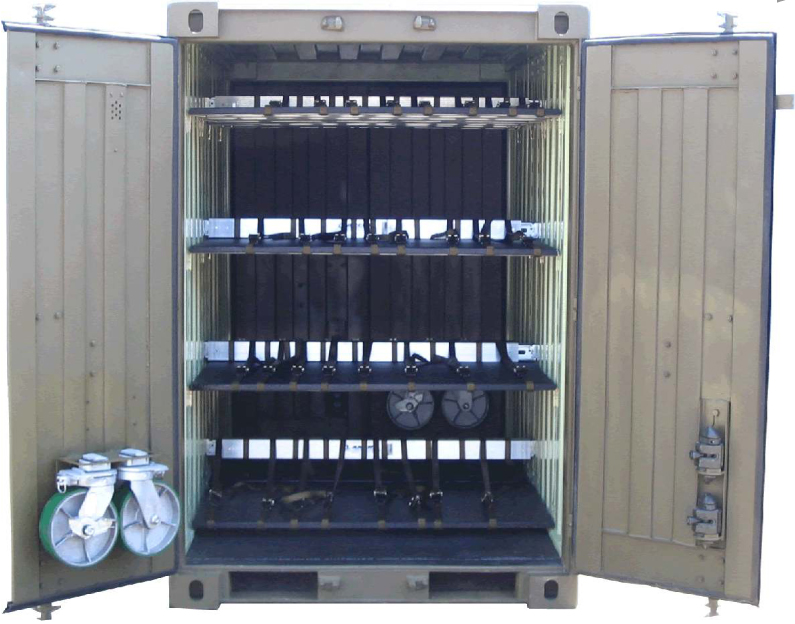

Quadcon Dry Freight ISO Container with Shelving System “COMMON 10” ISO Cargo Container (SB812.SG.USMC.COM10)
