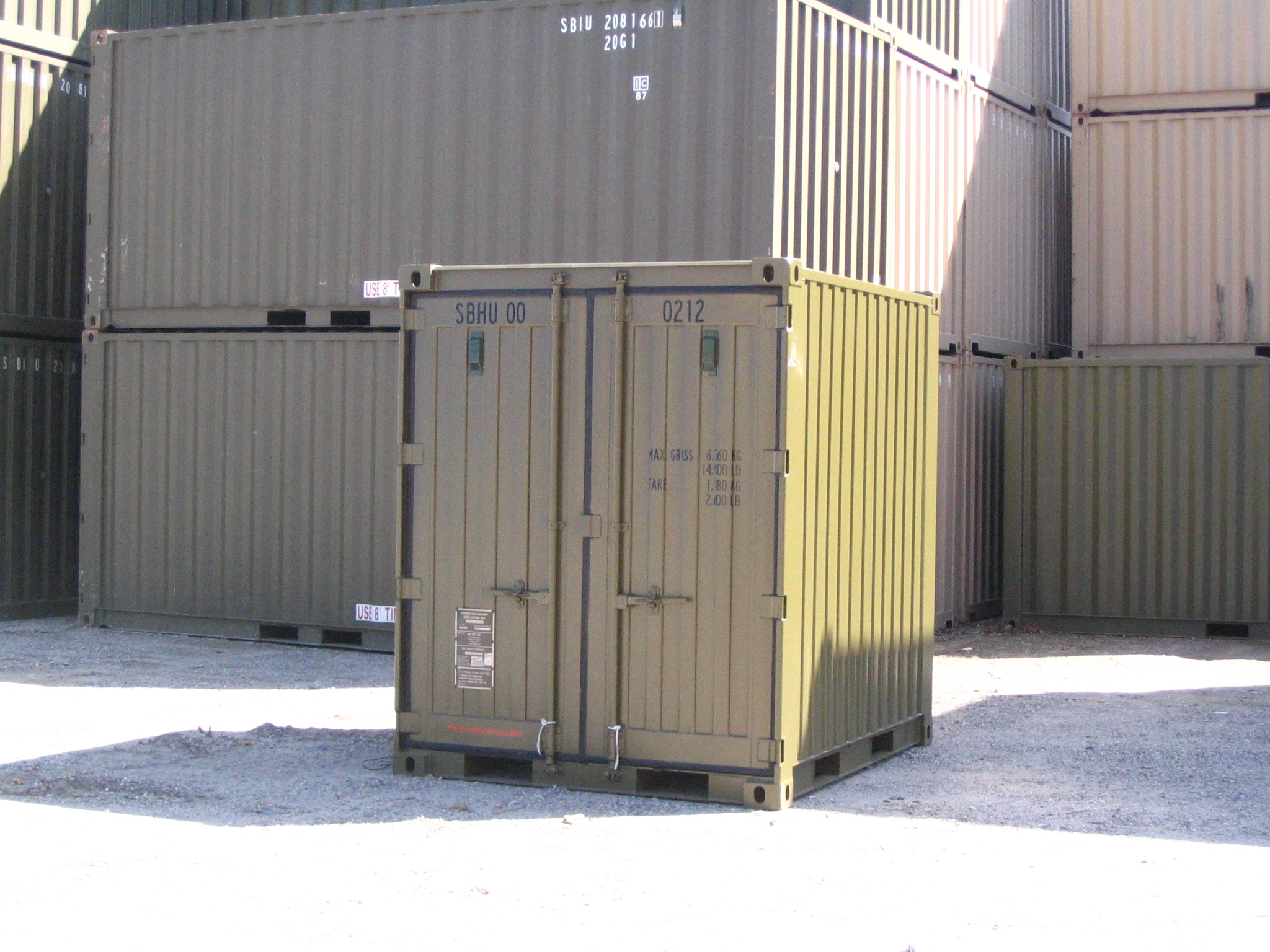

Tricon Dry Freight ISO Container with Double Doors on One Side
Part Number: SB821.0
NSN: 8150-01-592-9855, 8145-01-475-9570, 8150-01-528-7544, 8150-01-579-3761, 8150-01-745-9570, 8150-01-483-9125, 8150-01-592-9850,81
Type: IDouble Doors One Side (Type 1) Tricon Dry Freight ISO Cargo Container
SB821.0 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof and swing doors on one side
- Heavy duty steel floor
- Four- way fork lift pockets
- Wall tie down steel lashing rings, 4,000 lbs. cap. Each (28) total
- Front corner post tie downs, (10) total
- Door corner post tie downs, (10) total = restraint system shoring slot will support 2” x 6” lumber
- Adjustable shelving brackets: (5) sets = (10) Vertical E-Track sections total
- Exterior color OD Green # 34088 or Tan # 33446
- Interior color OD Green # 34088 or Tan # 33446
- Vents, (2) each
- Decking and Shoring Beams, (15) each
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket, (1) each
- Manifest Box, (2) each with 1 set of Manuals
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 9/16” | 6’ 3 25/64” | 8’ 0” | 7’ 5 9/64” | 8’ 0” | 7’ 7 23/32” | 7’ 1 43/64” | 6’ 1 25/32” |
| Metric | 1,970 | 1,915 | 2,438 | 2,264 | 2,438 | 2,330 | 2,176 | 1,874 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,600 | 12,300 | 14,900 | 356 Cu. Ft. |
| Kgs | 1,179 | 5,579 | 6,759 | 10.08 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products

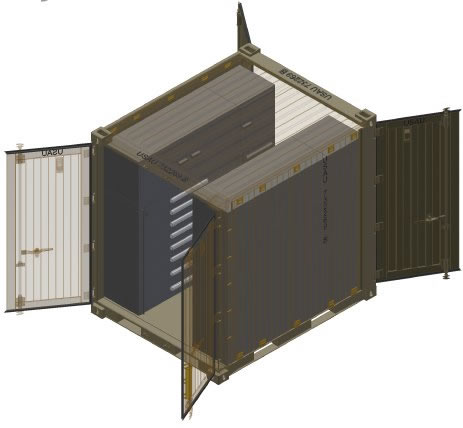

Tricon ISO Container (Type 2) with Cabinents and Drawers Tricon Dry Freight ISO Cargo Container (SB822.0.CT88D)
Type IITricon ISO Container (Type 2) with Cabinents and Drawers... (SB822.0.CT88D)
Learn More Request A Quote

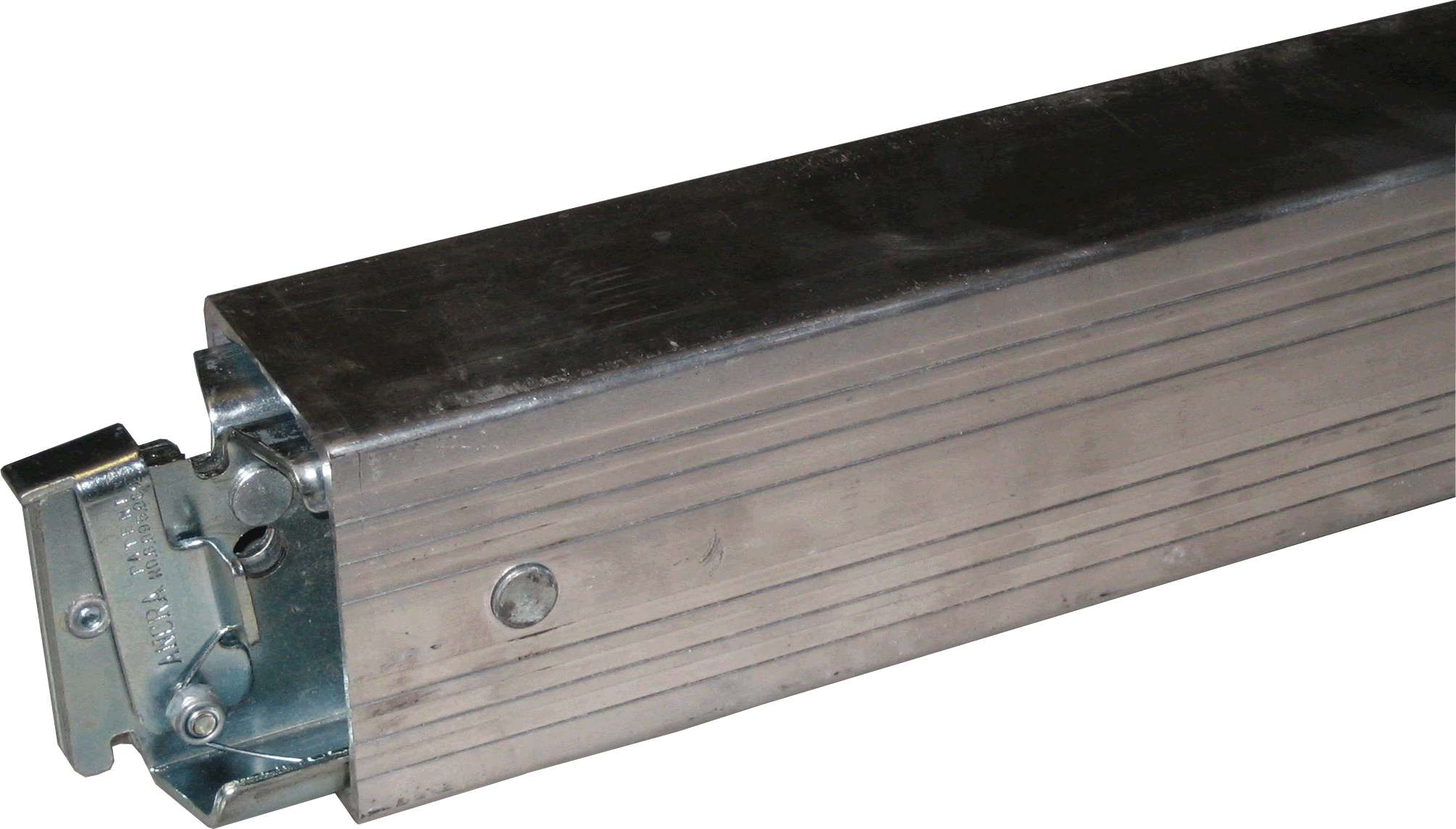

SB6200 - Shoring & Decking Beam (Tricon 1 & 2) (SB6200)
