SEA BOX | Tricon ISO Container (Type 1) with 12 Cabinets

Tricon ISO Container (Type 1) with 12 Cabinets

Part Number: SB821.0.D2A-D2B.NFELC

NSN: 8145-01-289-0945

Type: I

Tricon Dry Freight ISO Cargo Container

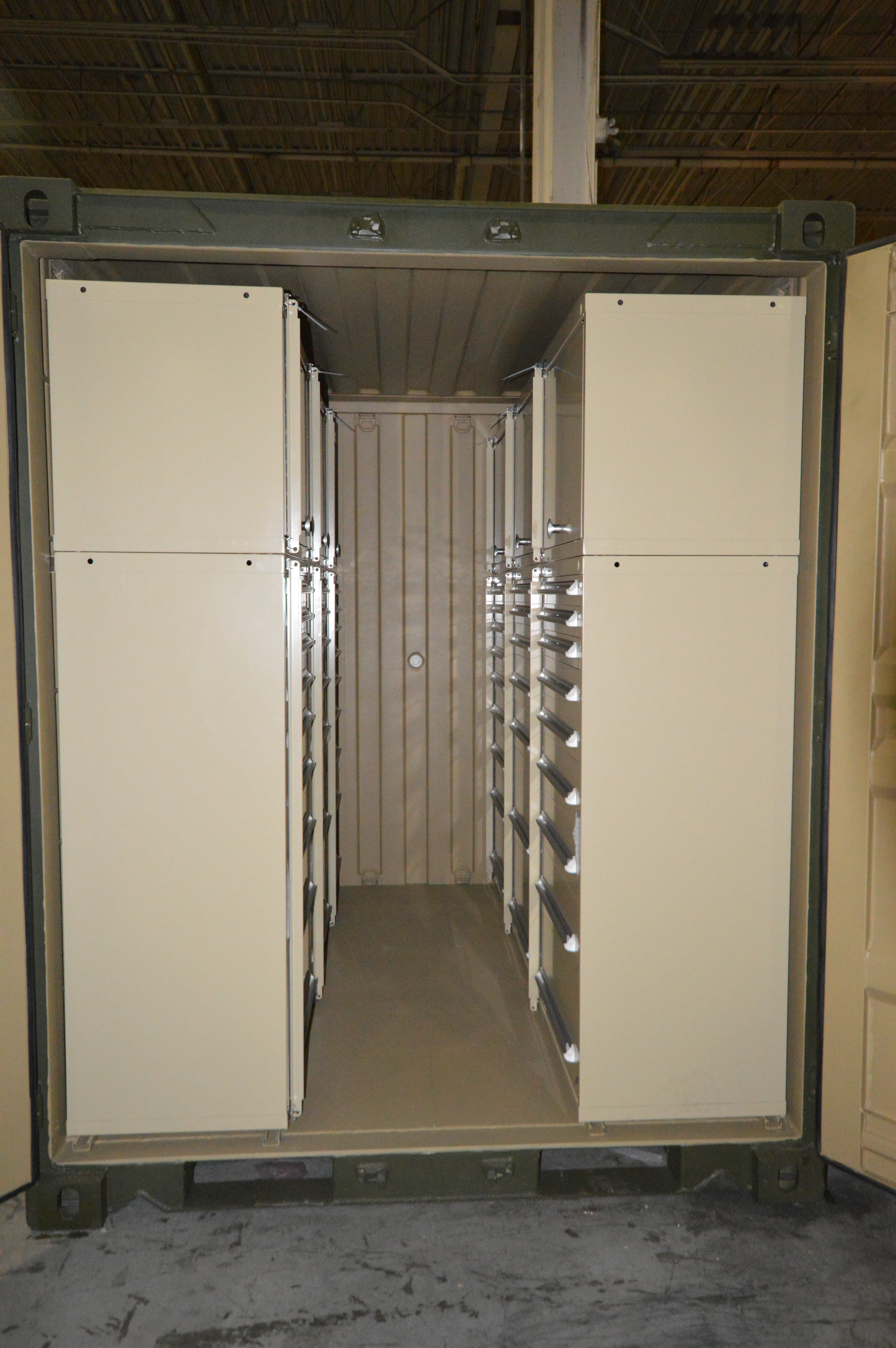

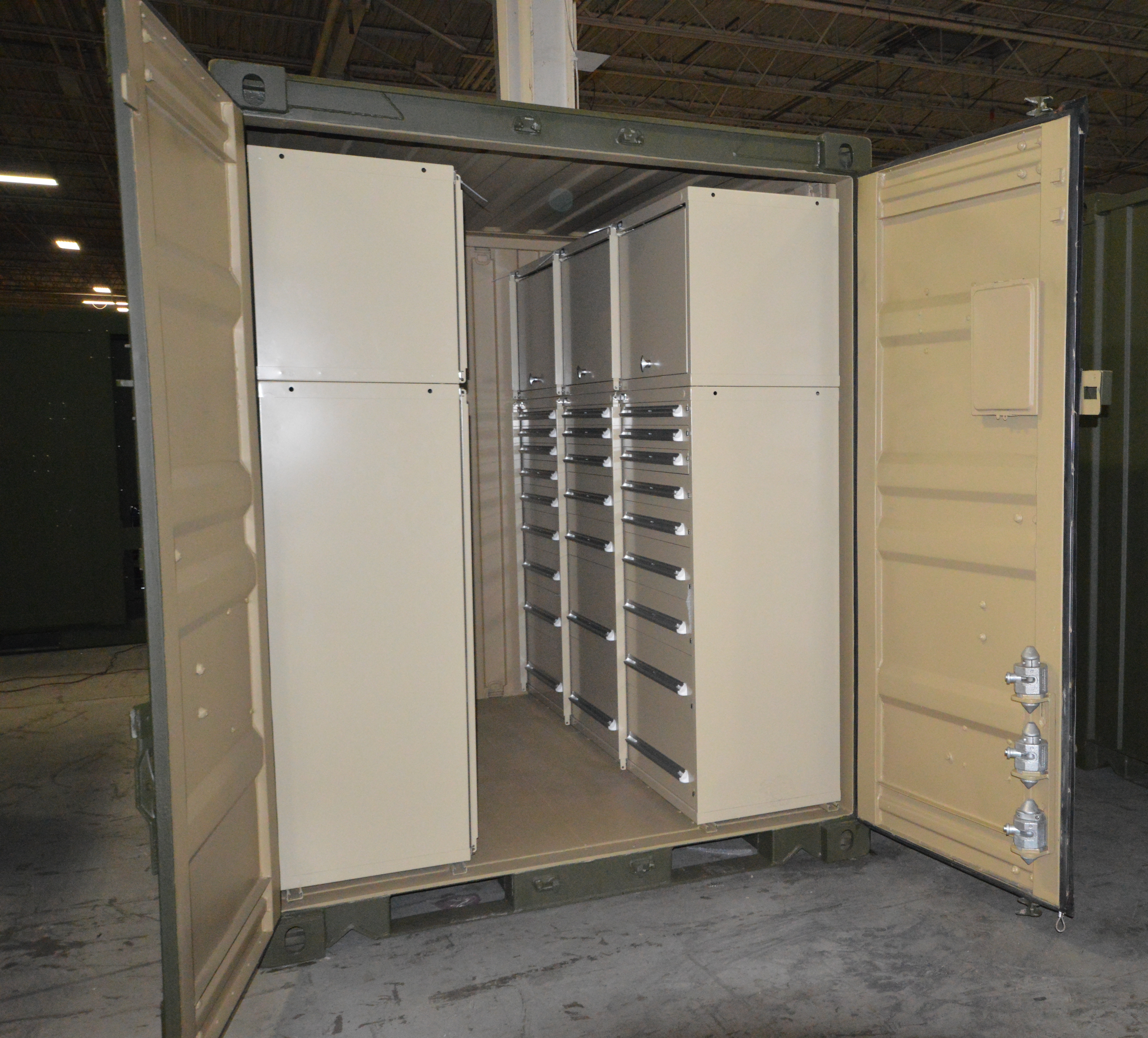

Tricon with 12 Stanley Vidmard storage cabinets. Double doors on one side.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, roof + swing doors on (1) side
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Vents, (2) each, closeable type
  • Manifest box, (2) each with 1 set of Manuals
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • (12) Stanley Vidmar storage Cabinets
  • Electric entry port
  • Exterior color OD Green # 34096
  • Interior color Sand # 33303
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 7 23/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1,970 1,915 2,438 2,264 2,438 2,438 2,176 1,874
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,600 12,300 14,900 356 Cu. Ft.
Kgs 1,179 5,579 6,759 10.08 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
