SEA BOX | Tricon ISO Container (Type 2) with Cabinets and Roll Out Trays

Tricon ISO Container (Type 2) with Cabinets and Roll Out Trays

Part Number: SB822.0.CT8-4RO.ST.DLA

NSN: 8150-01-619-8248, 8150-01-620-0174, 8150-01-533-9169, 8145-01-533-9167

Type: II

with Modular Cabinet Design

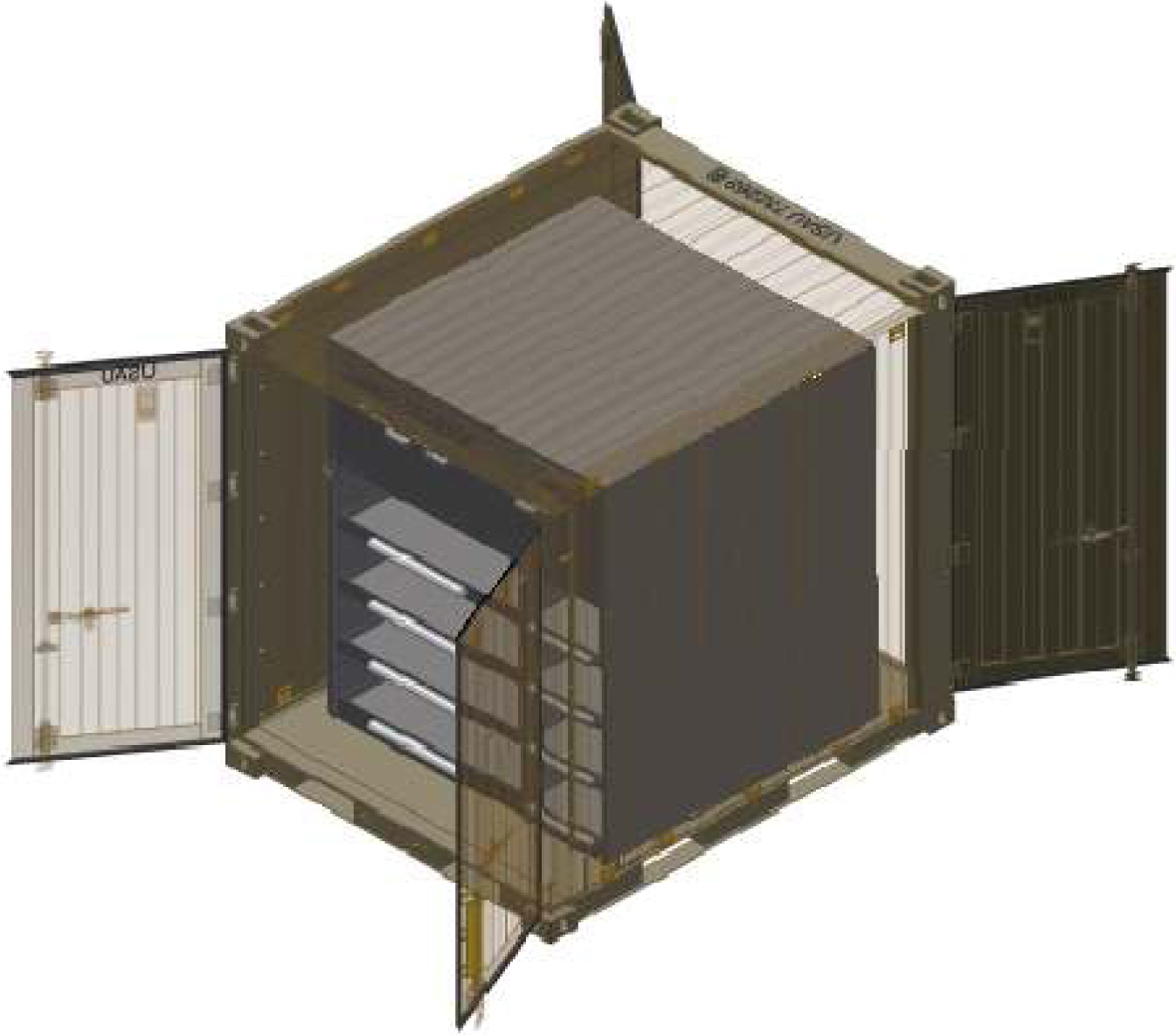

Tricon Dry Freight ISO Cargo Container with Cabinets and Roll Out Trays. Double doors on both sides. Standard TAN paint.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, roof + swing doors on (2) sides
  • Heavy duty steel floor
  • Four-way fork lift pockets (4.5” high on the sides)
  • (10) Columns of Vertical E-Track
  • (20) Wall Tie Down Rings
  • - (10) bottom row and (10) top row
  • (20) Corner Post Tie Downs
  • - (10) front corners and (10) door corners = restraint system shoring slot will support 2” x 6” lumber
  • (2) SB2345 Aluminum Manifest Holders
  • Data Plate with NSN & UID Label
  • (3) SB2341: Horizontal Twistlocks with (1) SB2342: Storage Bracket
  • (2) SB5005: Container Vents
  • Standard Tan
  • CUSTOM FEATURES

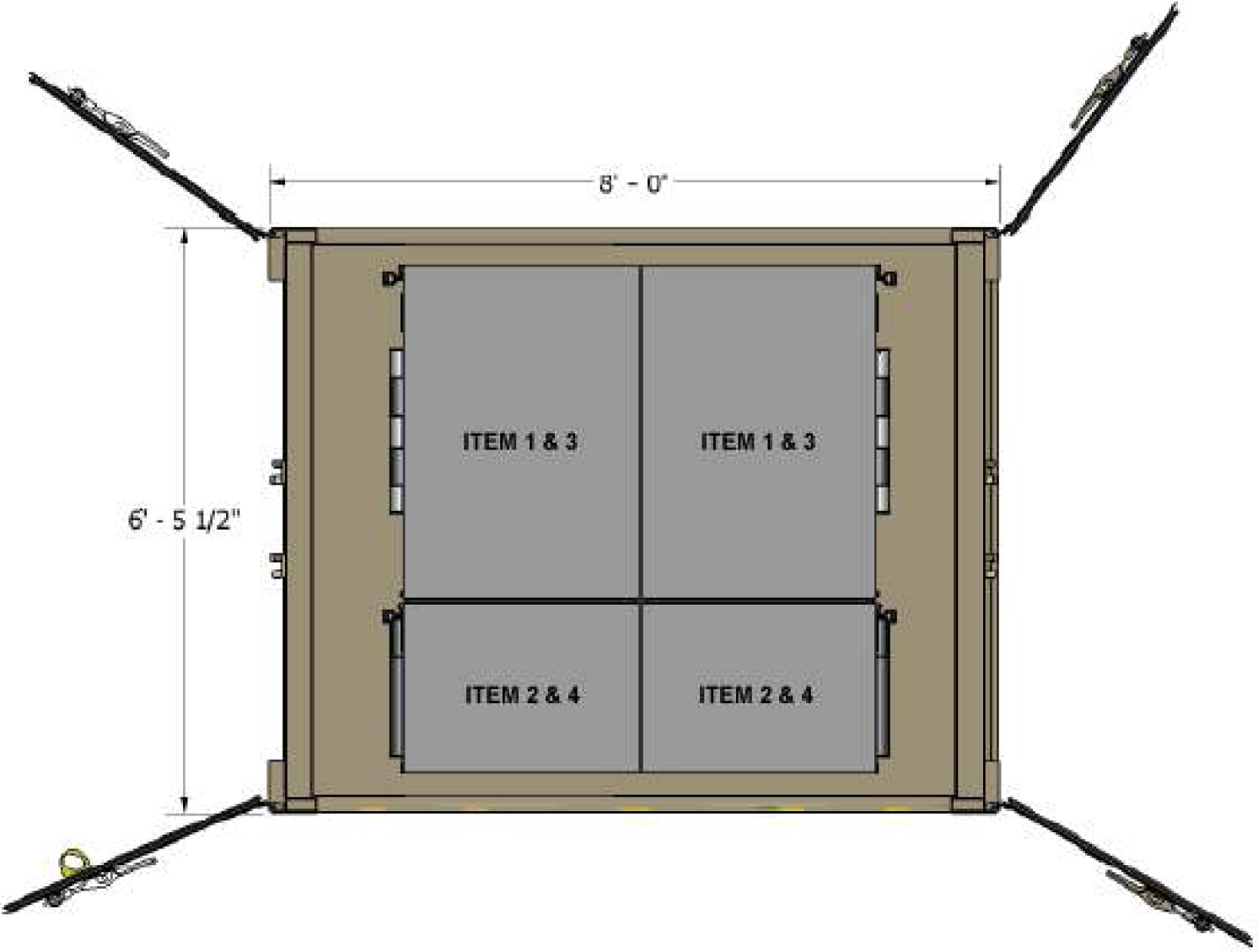

  • Heavy Duty Steel Stanley Vidmar Cabinets: - (2) 45”W Base Cabinets with (8) Roll Out Shelves Total - (2) 22.5”W Base Cabinets with (8) Roll Out Shelves Total - (2) 45”W 2-Swing Doors Top Cabinets - (2) 22.5”W 1-Swing Door Top Cabinets
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6' 5 9/16" 6' 3 25/64" 8' 0" 7' 5 9/64" 8' 0" 7' 5 17/32" 7' 1 43/64" 6' 1 25/32"
Metric 1,970 1,915 2,438 2,264 2,438 2,438 2,176 1,874
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,600 12,300 14,900 356 Cu. Ft.
Kgs 1,179 5,579 6,759 10.08 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
