SEA BOX | 20’ Intermodal Warehouse System™ (IWS)

20’ Intermodal Warehouse System™ (IWS)

Part Number: SB9120.210

The Sea Box Intermodal Warehouse System (IWS) is a steel, cargo- carrying platform that securely slides into ISO containers at the shipping point and provides a field warehousing system when unloaded at the destination.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • An inter-connectable, all-steel, cargo-carrying platform and field warehousing system

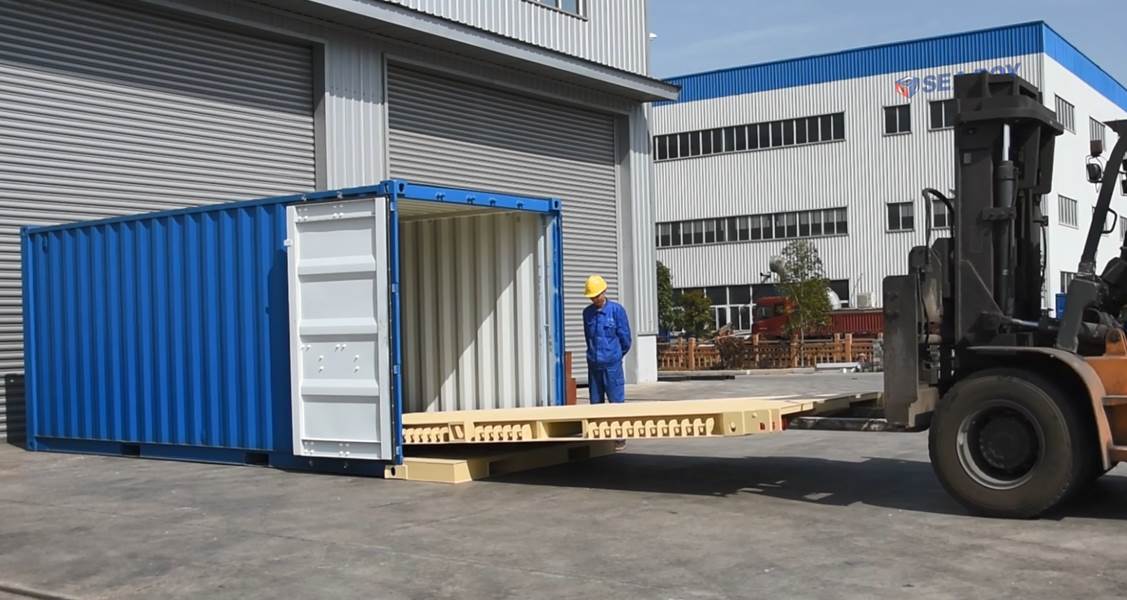

  • IWS can be rolled in and out of standard ISO shipping containers, or transported on a flatbed truck, trailer

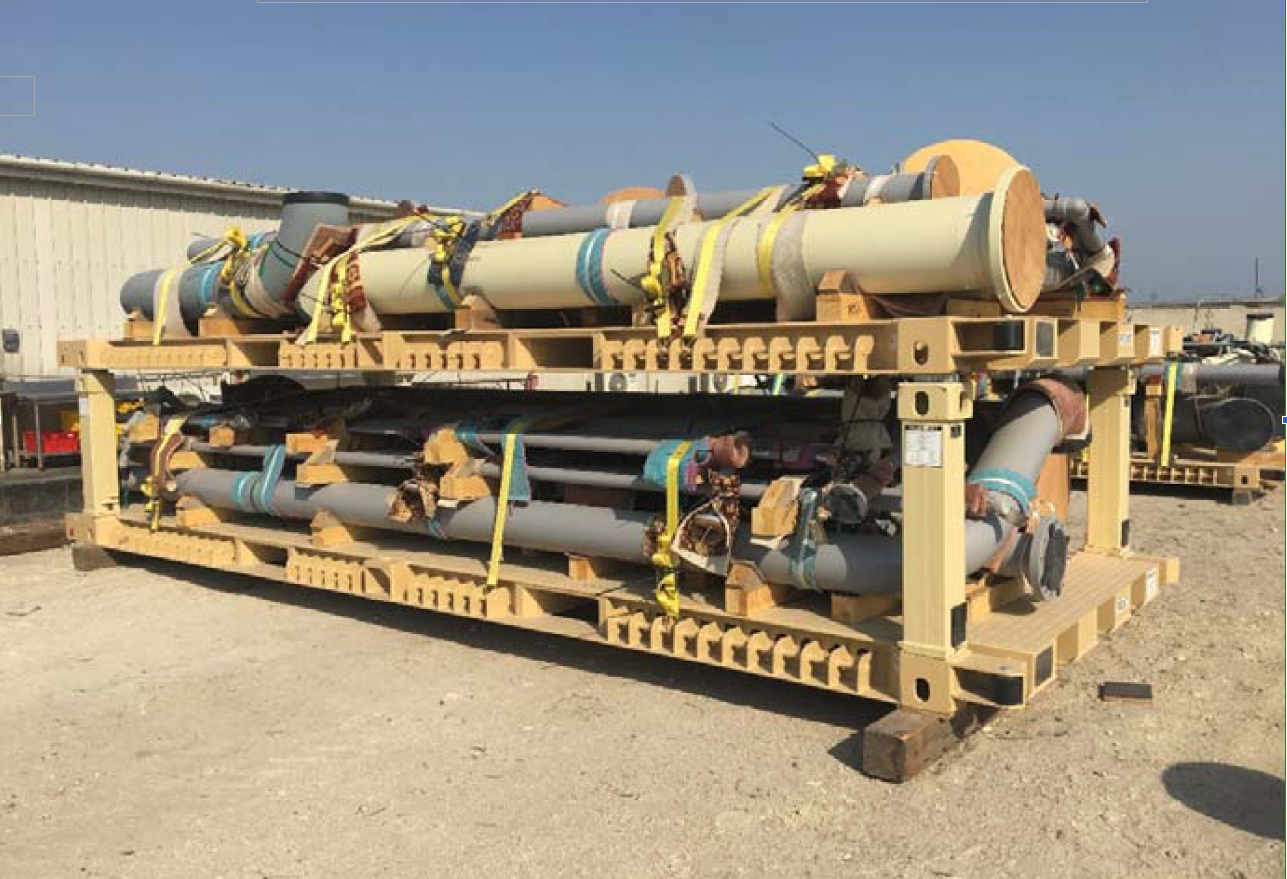

  • IWS can be stacked two or three high for transportation, potentially tripling shipping capacity

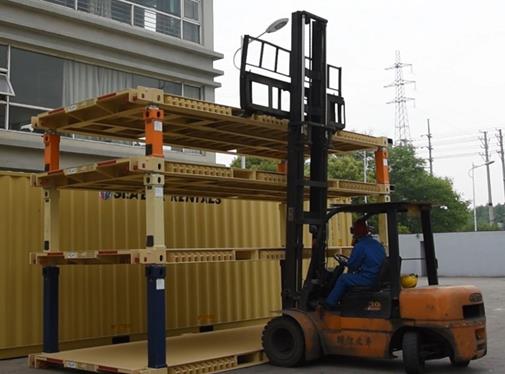

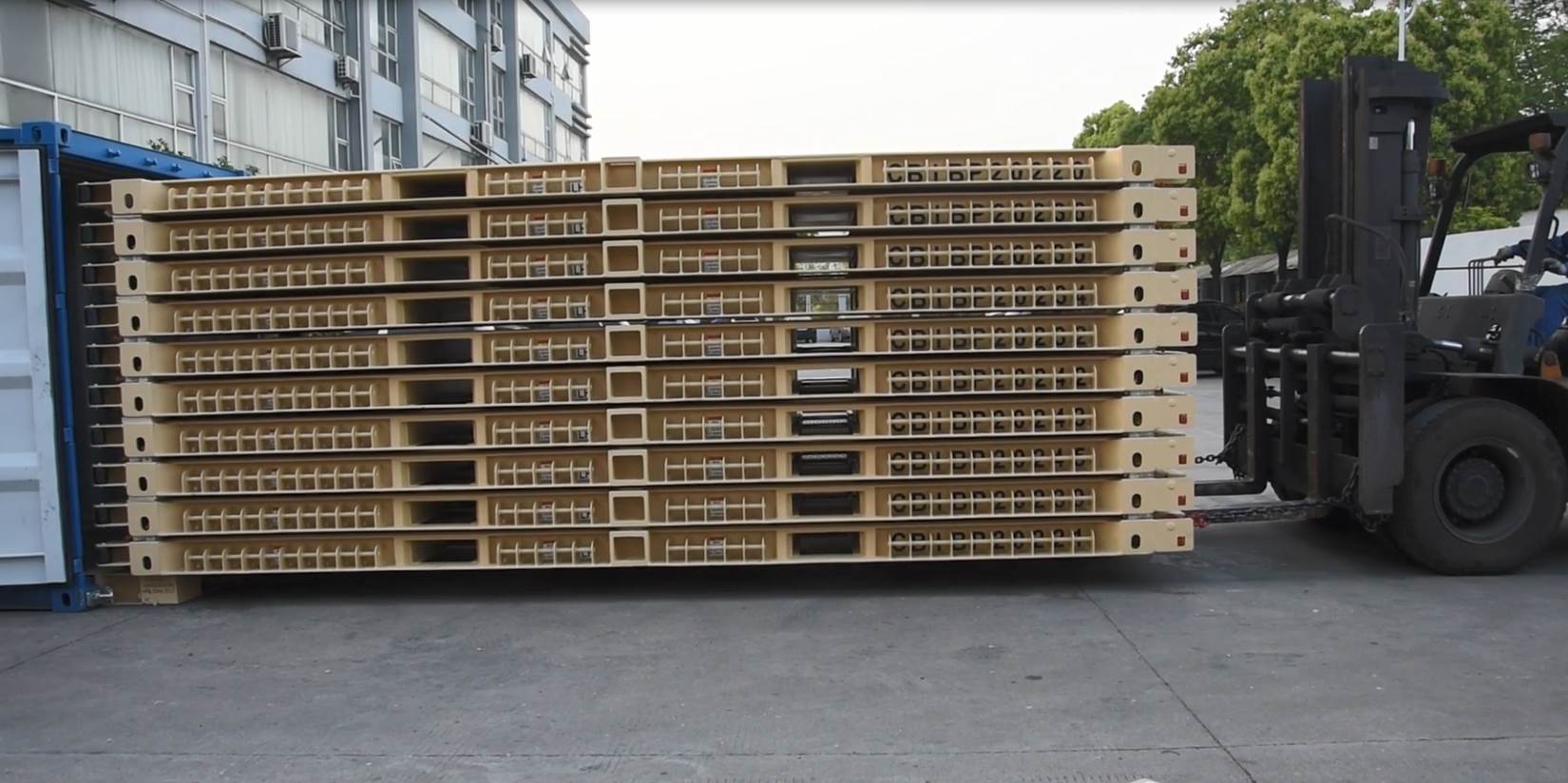

  • IWS can be stacked up to 4-high for warehousing or nested up to 15-high when not in use
  • IWS reduce quarantine risk as laden platforms are containerized and secure, removing the need to shrink wrap cargo
  • IWS provide a platform to facilitate ergonomic loading of operational Stores/Field Installation Work Packages (FIWP)
  • Each 20’ IWS has a 21,605 lbs payload capacity with 8,377 lbs tie-down rails and loading restraint locking bars
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 2” 7 13/64” 7’ 6 25/64”
Metric 5,842 183 2,296 2,296
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 4,000 21,605 25,605
Kgs 1,814 9,800 11,614

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS

Related Products

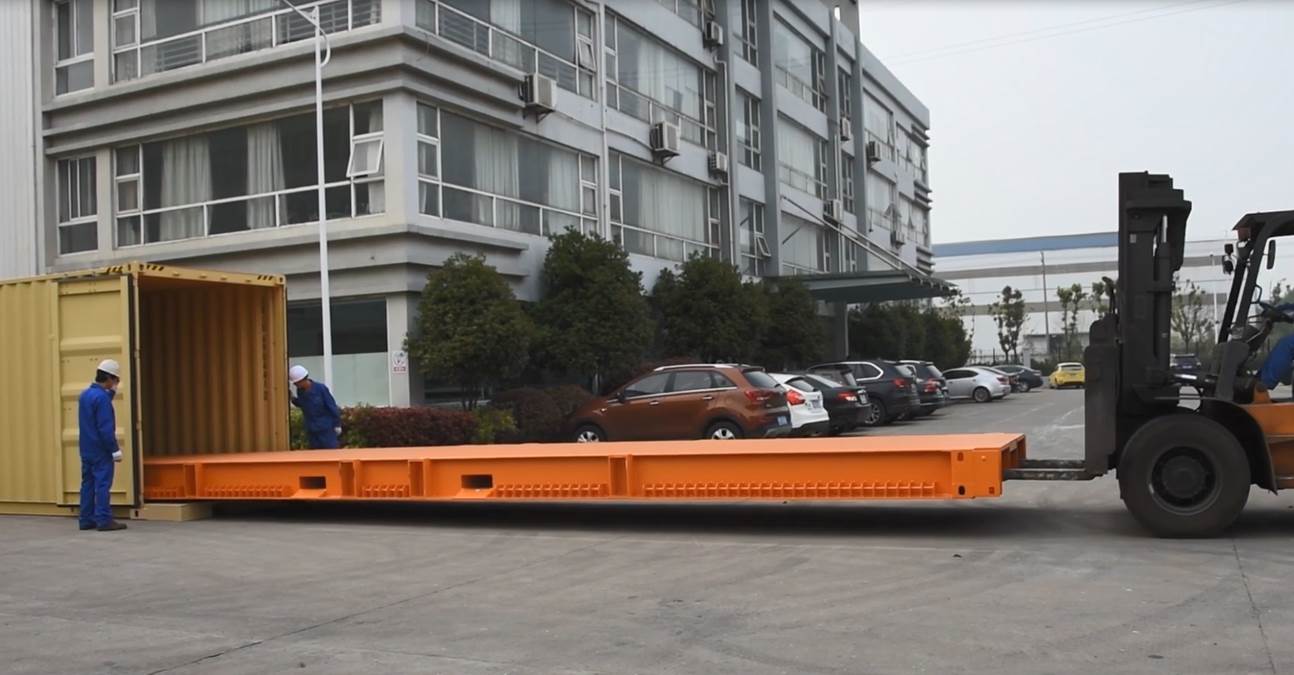

40’ Intermodal Warehouse System™ (IWS) “425” (SB9140.425)
