SEA BOX | 40’ Intermodal Warehouse System (IWS) “425”

40’ Intermodal Warehouse System (IWS) “425”

Part Number: SB9140.425

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

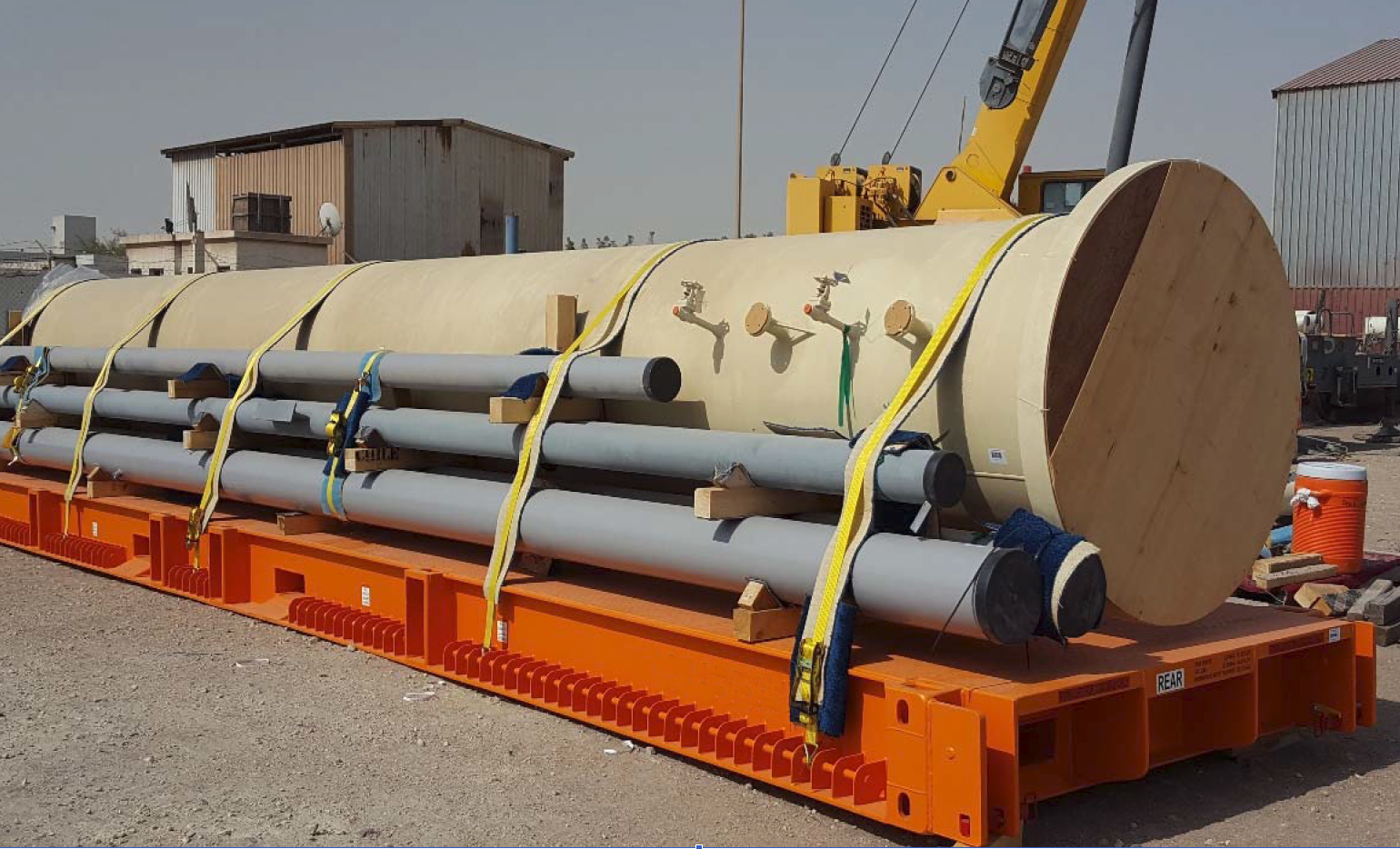

  • An inter-connectable, all-steel, cargo-carrying platform and field warehousing system

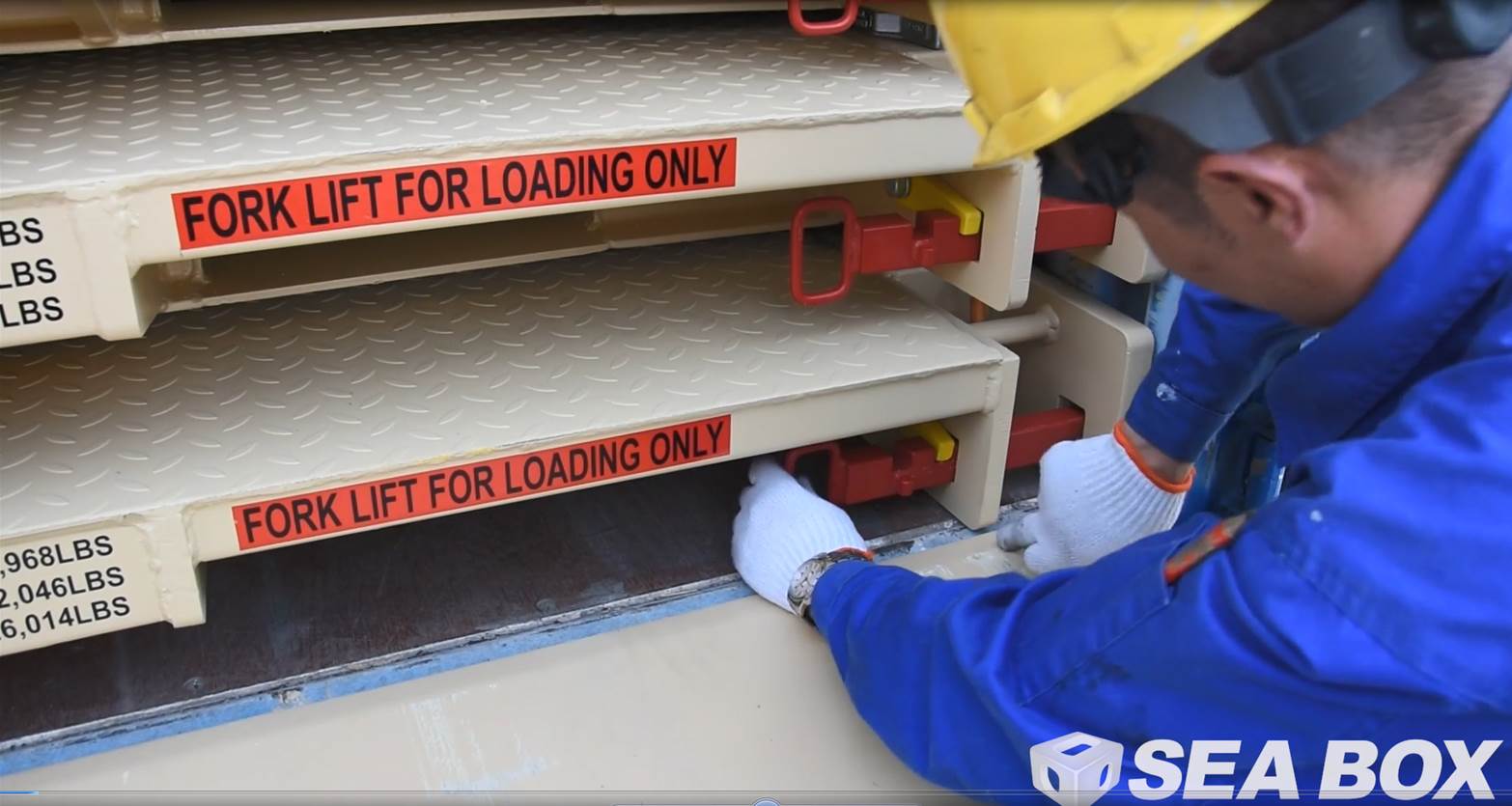

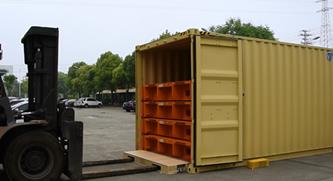

  • IWS can be slid in and out of standard ISO shipping containers, or transported on a flatbed truck, trailer
  • IWS can be stacked two or three high for transportation, potentially tripling shipping capacity
  • IWS can be stacked up to 4-high for warehousing or nested up to 15-high when not in use
  • IWS reduce quarantine risk as laden platforms are containerized and secure, removing the need to shrink wrap cargo
  • IWS provide a platform to facilitate ergonomic loading of operational Stores/Field Installation Work Packages (FIWP)
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 39’ 2 13/64” 15 55/64” 7’ 6 25/64”
Metric 11,943 403 2,296 2,296
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 11,020 55,115 66,135
Kgs 4,998 25,000 29,998

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
