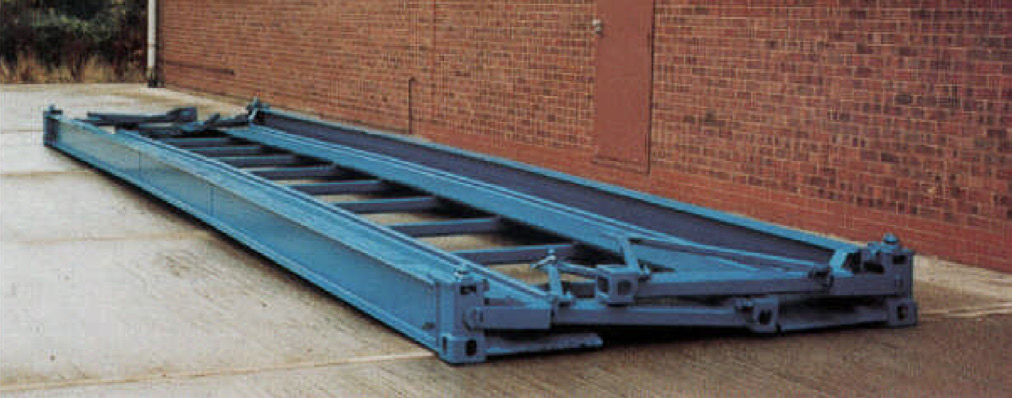

40’ x 8’6” Single Deck Car Carrier (Type 12)
Part Number: SB47124
SB47124 40' x 8'6" Single Deck Car Carrier (Type 12)
The SB4712 is a purpose built car carrier for limousines, compacts, MPVs and 4x4. Simplicity of operation and ease of loading and unloading the cars is achieved by low side rail heights and no walls making easy access for driver and for lashing.
SB47124 Brochure
- Versatile simple car carrier for all domestic vehicles
- Spare parts available worldwide
- Seven units fold into 8’ 6”
- 7 high stacking at 30,480 Kgs
- Lashing bars: 12 x 5000kg per side, 2 per end
- Gooseneck tunnel
- Floor steel plate
- Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent
- Header locks: 2 per end semi-automatic
- Counterbalancing: coil spring
- Approvals: ABS, LRS, BV, UIC, CSC, TCT
- Sling lift points
- Post extensions
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | Side Door | ||||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | Height | Width | |
| Ft in | 40’ 0” | N/A | 8’ 6” | 5’ 8 57/64” | 8’ 0” | N/A | N/A | N/A | N/A | N/A |
| Metric | 12,192 | N/A | 2,591 | 1,750 | 2,438 | N/A | N/A | N/A | N/A | N/A |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 7,165 | 13,225 | 20,390 | N/A |
| Kgs | 3,250 | 6,000 | 9,250 | N/A |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
