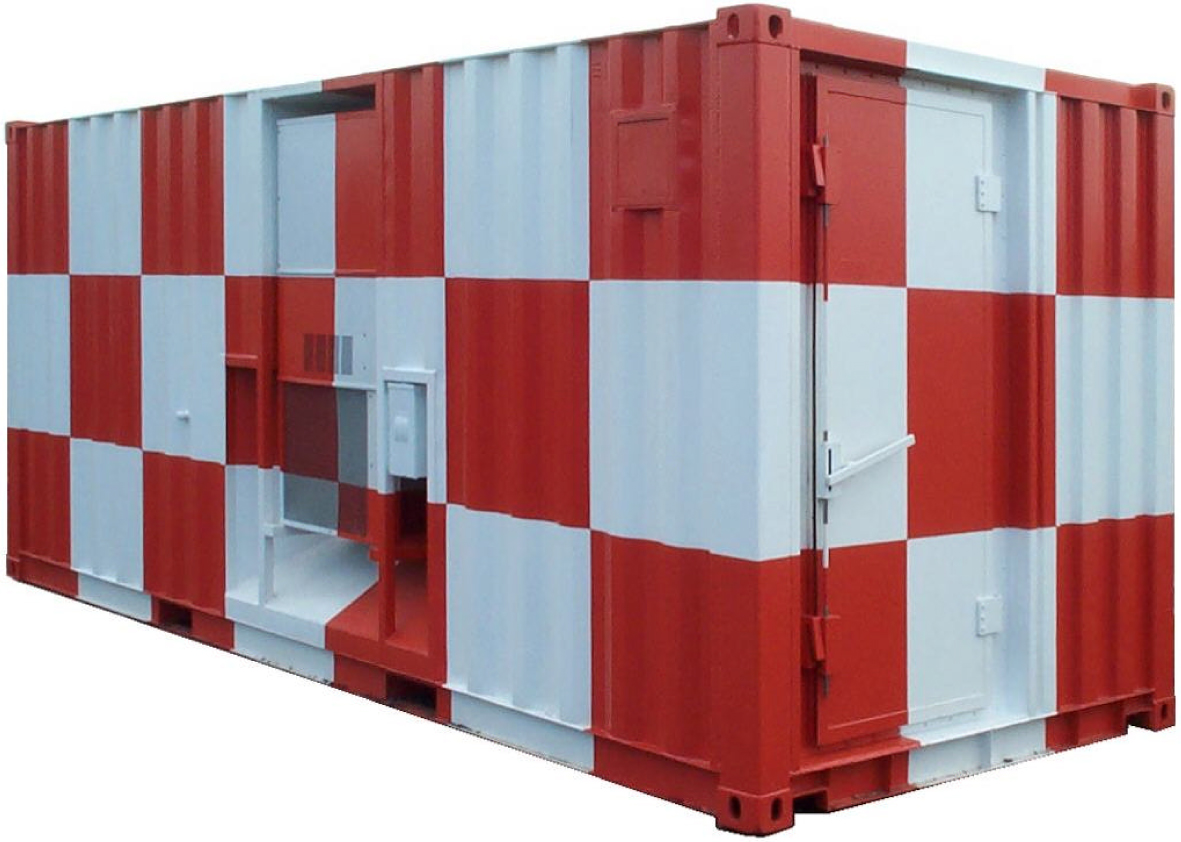

SEA BOX | 20’ x 8’6” ISO EMI Radar Shelter

20’ x 8’6” ISO EMI Radar Shelter

Part Number: SB3883

Type: I

Electromagnetic Interferrence Shelter. EMI personnel door on rear, HVAC recessed into side wall.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides and roof
  • 14 gauge locking steel double end swing doors
  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Smooth steel floor surface over wood floor
  • Tie down steel lashing rings, 4000 lbs. cap. each
  • Two-way laden fork lift pockets
  • Continuous welded enclosure
  • EMI gaskets or filters on all openings
  • EMI man door on rear
  • HVAC recessed into side wall
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 4 3/16” 8’ 6” 7’ 9 29/32” 8’ 0” 7’ 8 1/2” 7’ 5 41/64” 7’ 8 1/2”
Metric 6,058 5,898 2,591 2,385 2,438 2,438 2,277 2,350
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 8,850 44,060 52,910 1,167 Cu.Ft.
Kgs 4,014 19,986 24,000 33 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
