SEA BOX | 20’ x 8’ Dry Freight ISO Weapons Shelter

20’ x 8’ Dry Freight ISO Weapons Shelter

Part Number: SB861.0.MP2.ST

NSN: 8150-01-619-0648; 8150-01-619-0545

Type: I

Container Weapons Shelter - MP2

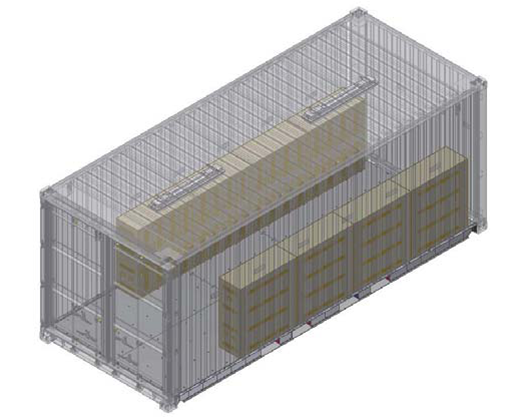

ISO Cargo container with weapons rack (rifles and pistols) and electricity. Double doors on one end. Standard Tan paint.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, roof, and swing doors on one end
  • Weapons Racks for: (60) M-16 Rifles, (6) M249 SAW, and (90) M9 Pistols
  • Full electrical system
  • (2) sets of forklift pockets, laden and unladen
  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Wall tie down steel lashing rings, 4,000 lbs. cap. each (24 total) tested at 6,000 lbs.
  • Front corner post tie downs (10 total)
  • Door corner post tie downs (10 total) = restraint system, shoring slot will support 2” x 6” lumber
  • Vents, (2) each
  • Tan exterior paint
  • Overhead Lighting
  • Manifest box (2) each
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 4 11/64” 8’ 0” 7’ 4 3/16” 8’ 0” 7’ 8 17/32” 6’ 11 21/32” 7’ 8 11/64”
Metric 6,058 5,897 2,438 2,240 2,438 2,438 2,125 2,341
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 5,000 47,910 52,910 1,096 Cu. Ft.
Kgs 2,268 21,732 24,000 31 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
