Tricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS)

Part Number: SB531.0.SFRS

Type: I

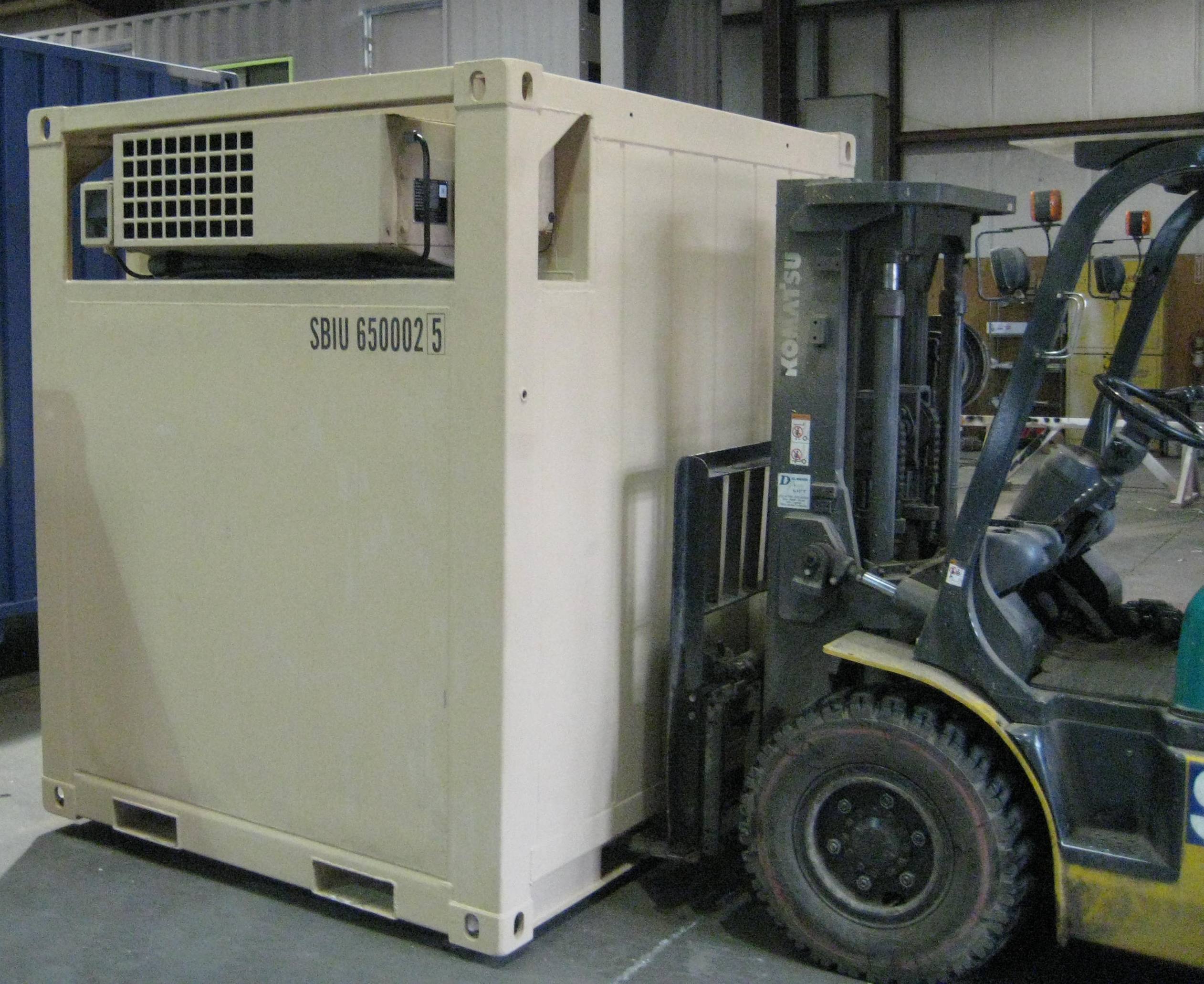

Tricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS)

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Smooth steel exterior sides and roof
  • Single swing door with grip handle and emergency hardware
  • Automatic pressure relief valve, (1) each for air transport

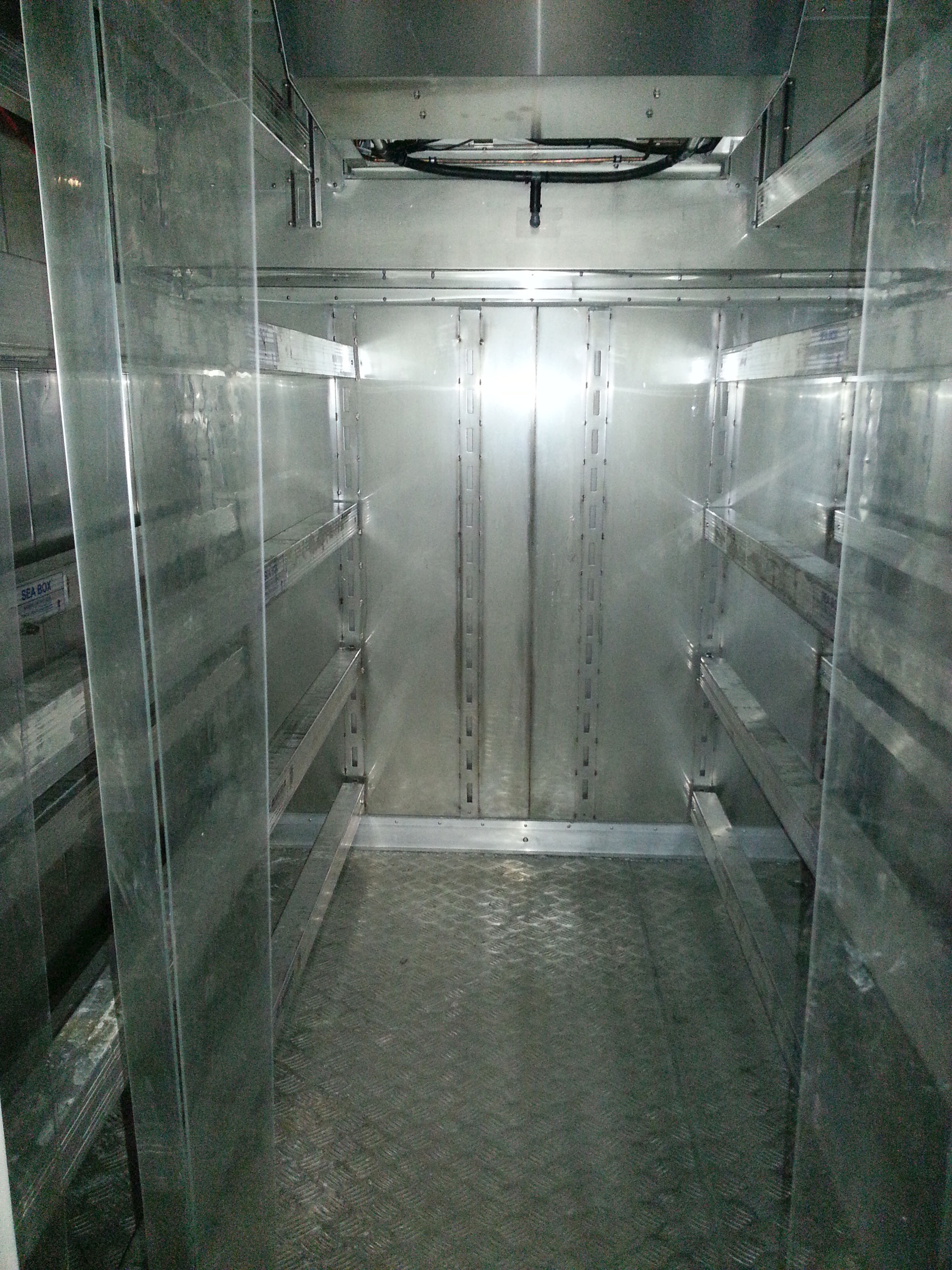

  • Stainless Steel interior lining as per NSF Standards
  • Heavy duty tread plate aluminum floor
  • Four-way fork lift pockets
  • Thermo King VM405 PBBD2 Refrigeration Unit, 208/230 VAC, 3 phase, 50/60 Hz power
  • Internal lighting, LED on ceiling with switch
  • Floor drain, (4) each, 2 with 90 deg. pipe drains + 2 with solid closeable caps
  • Air curtains in sliding track across door
  • Five (5) folding steps/hand hold for roof access, plus (1) folding handle on the roof
  • Custom data plates
  • Vertical E-Track in curb side wall, (4) each, designed for maximum shelf width
  • Horizontal E-Track on front wall, (1) each with (4) articulated rings
  • Horizontal E-Track on rear wall, (1) each with (4) articulated rings
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket, (1) each holds (3) connectors installed on center line of interior road side wall
  • Technical Manual Holder, interior size: 12” x 9” x 1.5” on interior door
  • Exterior LED Flood Light, 25’ cord with special corner fitting brackets
  • Vertical E-Track in road side wall, (4) each, designed for maximum shelf width

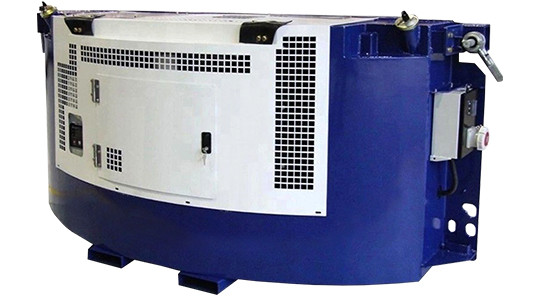

  • Clip-On Generator Set (run 3 Tricons at once)
  • Spare parts kit to support 100 units
  • Low Solar Absorption (LSA) coating
  • Compatible with Tricon Refrigerated Containter System (TRCS) Shelf Kit SB531.0.TRCS.SK3 - 20 1/2” Wide
  • Audible alarm sound during Refrigeration Unit failure
  • Available in Green, Tan or White exterior color
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 1/2” 5’ 9 9/32” 8’ 0” 6’ 11 11/16” 8’ 0” 7’ 1/8” 6’ 3” 2’ 4”
Metric 1,969 1,760 2,438 2,126 2,438 2,438 1,905 711
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 3,400 11,600 15,000 286 cu. ft./282 cu. ft.
Kgs 1,543 5,261 6,804 8.10 cu. m. /8.0 cu. m.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
