Tricon Refrigerated ISO Cargo Container - Type III
Part Number: SB531.0.TRCS.TYPE3
Type: IIITricon Refrigerated ISO Cargo Container Type 3
SB531.0.TRCS.TYPE3 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Smooth steel exterior sides and roof
- Single swing door grip handle and emergency hardware
- Automatic pressure relief valve, (1) each for air transport

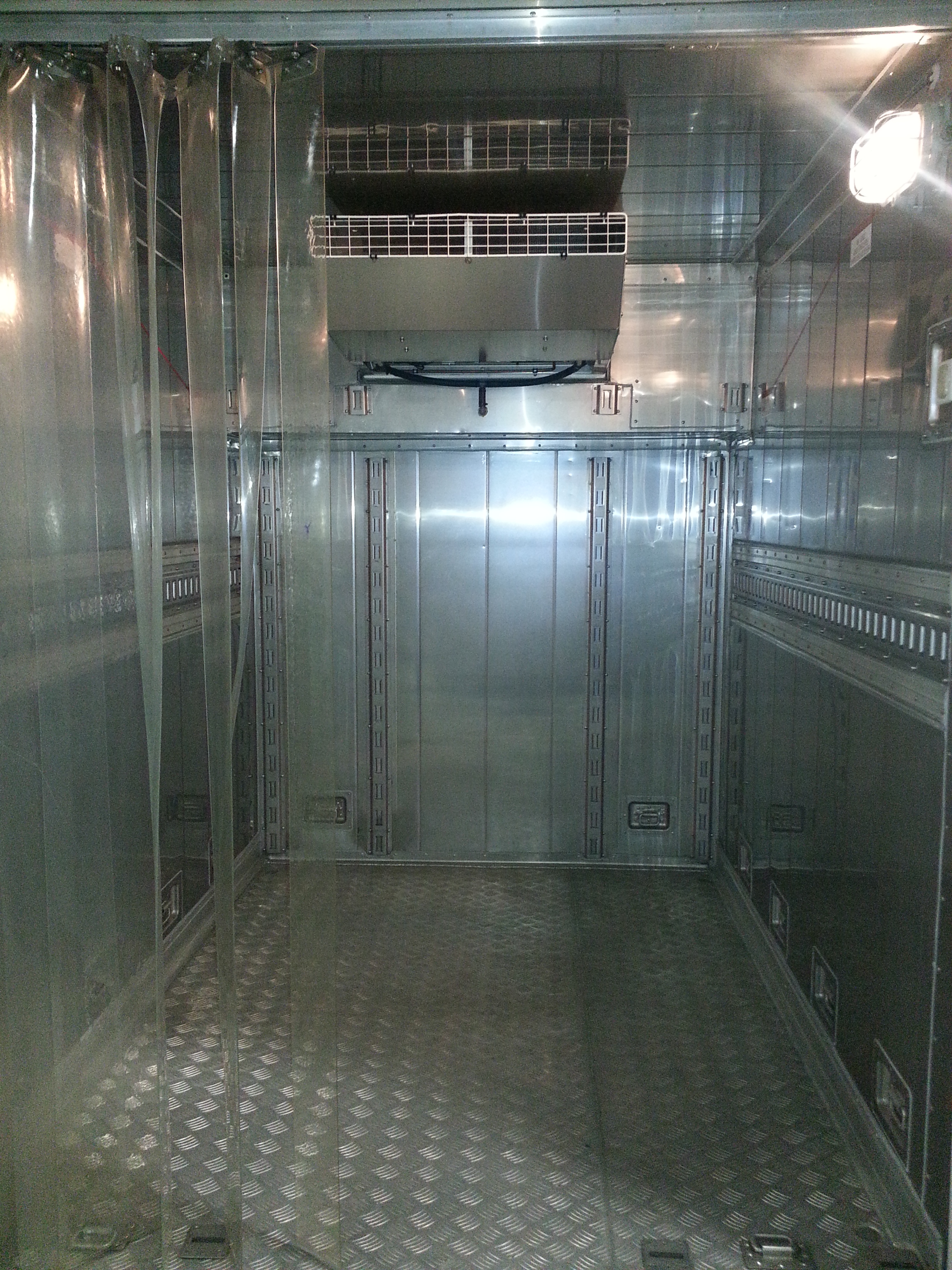

- Stainless Steel interior lining as per NSF Standards
- Heavy duty tread plate aluminum floor
- Four way fork lift pockets
- Thermo King VM405 Refrigeration Unit, 208/230 VAC, 3 phase, 50/60 Hz power
- Internal lighting, 120 VAC, 100 watt bulb
- Cargo restraint system with (12) tie down points, 1,000 lbs. cap.
- Horizontal E-Track, (1) row per side, recessed into side wall panel
- Floor drain, (4) each with plugs
- Air curtains in sliding track across door
- Five (5) folding steps/hand hold for roof access, plus (1) on the roof
- Custom data plates
- Vertical E-Track in road side wall
- Vertical E-Track in curb side wall
- TRCS Shelf Kit (SB531.0.SFRS-SK3)
- 19” wide, 600 lbs. cap. per shelf, (5) shelves per side, (10) total
- 31-day recording thermostat
- Clip-On Generator Set (run 3 Tricons at once)
- Spare parts kit
- Low Solar Absorption (LSA) coating
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket, (1) each holds (3) connectors
- Twelve (12) rivnuts each, located on interior of secondary door
- Switched 2DA receptacle
- Technical Manual Holder, (2) each, interior size: 12” x 9” x 1.5”
- Low Solar Absorption (LSA) coating
- Available in Green, Tan or White exterior paint
- HEAT LEAKAGE = U MAX @ 20°C MEAN TEMP: 7.59 Kcal/hr ° C
- Food grade stainless steel shelving, removable open deck design
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 1/2” | 5’ 9 9/32” | 8’ 0” | 6’ 11 11/16” | 8’ 0” | 7’ 1/8” | 6’ 3” | 2’ 4” |
| Metric | 1,969 | 1,760 | 2,438 | 2,126 | 2,438 | 2,137 | 1,905 | 711 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 4,125 | 20,325 | 24,450 | 293 cu. ft. /270 cu. ft. |
| Kgs | 1,871 | 9,219 | 11,090 | 8.3 cu. m. /7.63 cu. m. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
