Quadcon Dry Freight ISO Container (6’10"H)
Part Number: SB812
NSN: 8150-01-533-8675, 8150-01-528-7550, 8150-01-527-2872, 8150-01-483-9115, 8150-01-483-9121, 8150-01-527-2872
Type: IIISO Cargo Container. Double doors on both sides.
SB812 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, and functional swing doors on both sides
- Heavy-duty steel floor
- Four-way fork lift pockets
- Wall tie down steel lashing rings, 2,000 lbs. cap., tested at 3,000 lbs. each, (16) total
- Vents, (2) each in door panels
- Connecting couplers, (3) per Quadcon
- Connecting coupler storage bracket, (1) each
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 4’ 9 3/8” | 4’ 7 3/4” | 6’ 10” | 6’ 3 1/16” | 8’ 0” | 7’ 6 9/16” | 5’ 11 3/16” | 4’ 5 5/8” |
| Metric | 1,457 | 1,417 | 2,083 | 1,907 | 2,438 | 2,300 | 1,808 | 1,362 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,000 | 9,200 | 11,200 | 220 Cu. Ft. |
| Kgs | 907 | 4,173 | 5,080 | 6.22 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products
Quadcon Dry Freight ISO Container with Five-Drawer Cabinet with 1 Cabinet and 5 Drawers (SB812.CT1-5D.DLA)
Type IIQuadcon Dry Freight ISO Container with Five-Drawer Cabinet... (SB812.CT1-5D.DLA)
Learn More Request A Quote

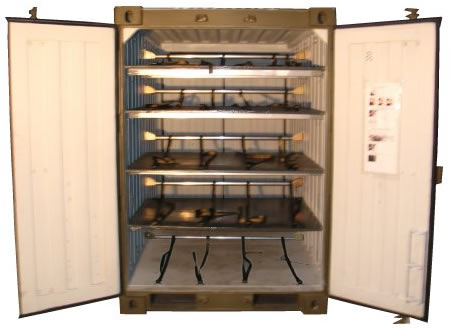

Quadcon Dry Freight ISO Container with Four Adjustable Shelves with 4 Adjustable Shelves (SB812.SH4)
