Quadcon ISO Container with 6 Adjustable Shelves
Part Number: SB812.SH3+3
NSN: 8150-01-619-0069, 8150-01-618-9364
Type: IIwith 6 Adjustable Shelves (Three Per Side)

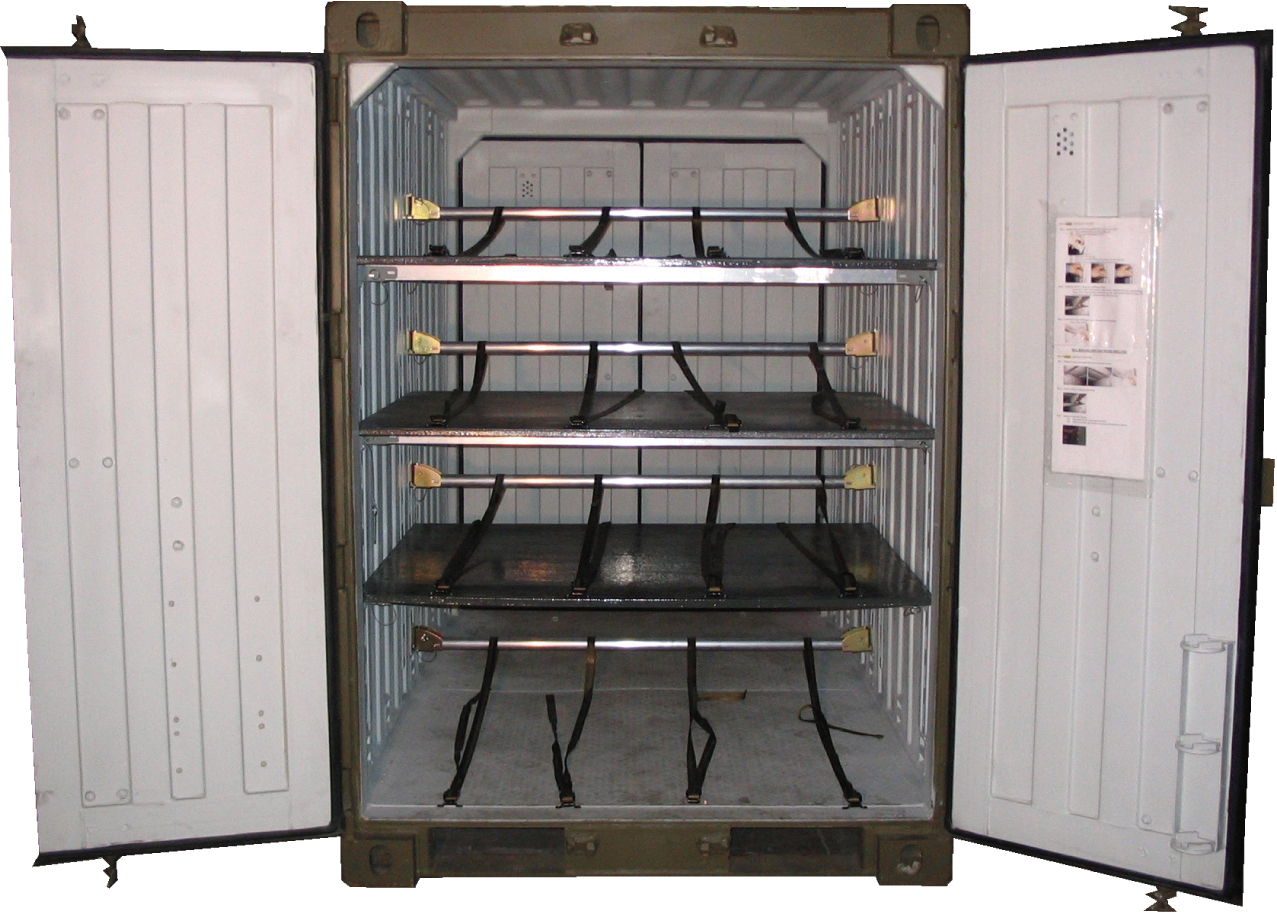

Quadcon ISO Container with (6) adjustable shelves. Doors on both ends.
SB812.SH3+3 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, and swing doors on both sides
- Heavy duty steel floor
- Four-way fork lift pockets
- (10) Columns of Vertical E-Track
- (20) Tie Down Rings - (10) bottom row and (10) top row
- (2) SB2343A Aluminum Manifest Holders
- Data Plate with NSN & UID Label
- (3) SB2341: Horizontal Twistlocks with (1) SB2342: Storage Bracket
- Standard Tan

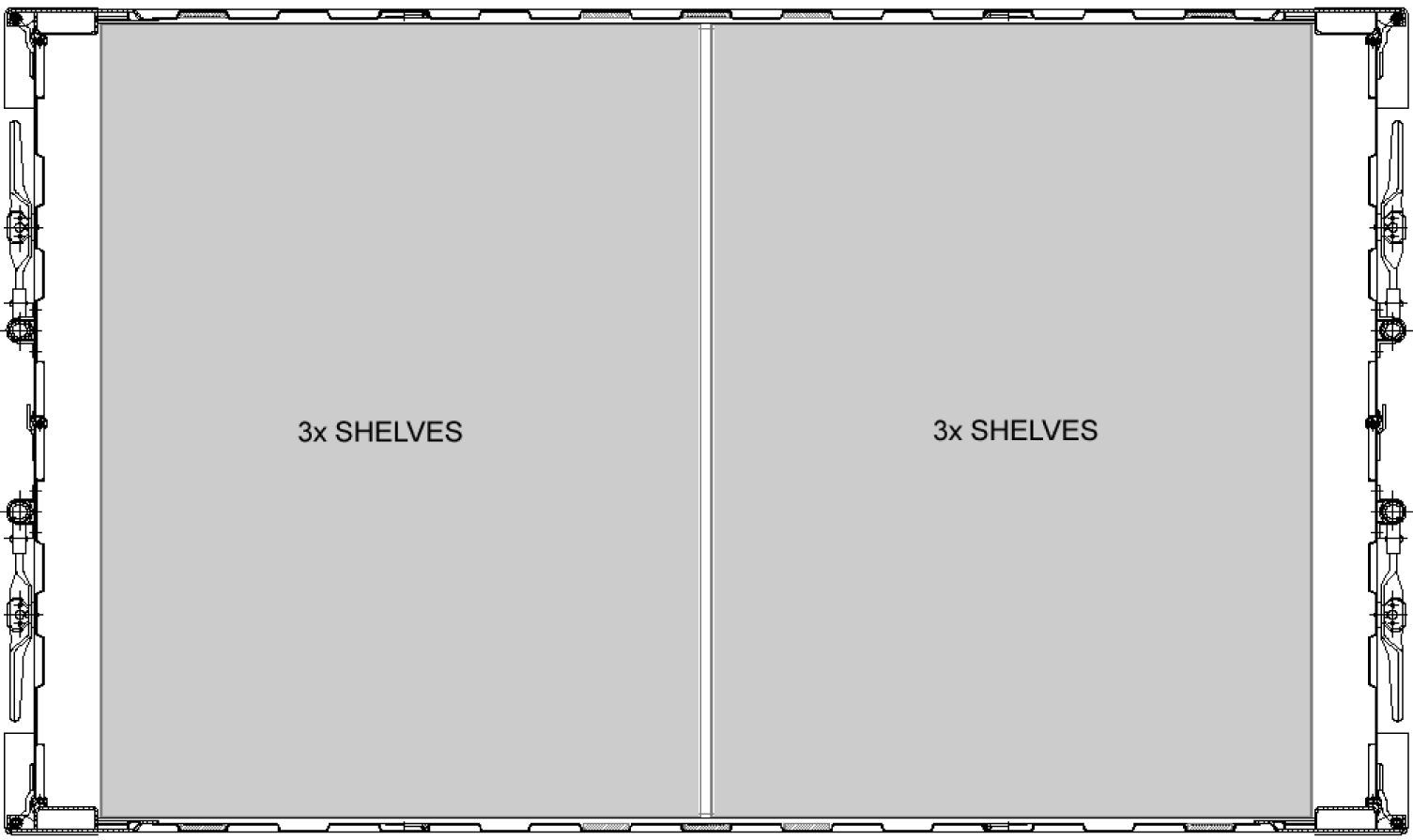

- (6) Adjustable Shelves. Includes: - (6) SB3360: 1/2 Transverse Shelves (with Polyurea) and (6) SB6000: Quadcon Load Bars - (6) SB3404 Light Duty Ratchet Strap - (6) SB3403 Light Duty Ratchet Strap w/ Loop
- 127 Sq. Ft. of Shelf Space
- 12 SB3422L Left Shelf Bracket
- 12 SB3422R Right Shelf Bracket
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 57.44" | 55.79" | 82" | 70" | 96" | 91.33" | 71.18" | 53.66" |
| Metric | 1459 | 1417 | 2083 | 1778 | 2438 | 2320 | 1808 | 1363 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2080 | 9120 | 11200 | 220Cu. Ft. |
| Kgs | 944 | 4136 | 5080 | 6.22Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
