SEA BOX | Tricon ISO Container (Type 2) with Modular Cabinets

Tricon ISO Container (Type 2) with Modular Cabinets

Part Number: SB822.0.CT2-4D

NSN: 8150-01-619-7755, 8150-01-619-9869

Type: II

Tricon Dry Freight ISO Cargo Container

Tricon with two (2) cabinets and four (4) drawers each.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Vents, (2) each
  • Manifest box (2) each
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • Tan exterior paint
  • CONTAINER
  • Corrugated steel sides, roof + swing doors on both sides
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • CABINETS
  • Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
  • 1 each 60” Wide Base Cabinet with 4 Drawers
  • 1 each 22.5” Wide Base Cabinet with 4 Drawers
  • 1 each 60” Wide Top with 1 Swing Door and 2 shelves
  • 1 each 22.5” Wide Top with 2 Swing Doors and 2 shelves
  • 400lb. Capacity Drawers
  • Custom configurations upon request
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

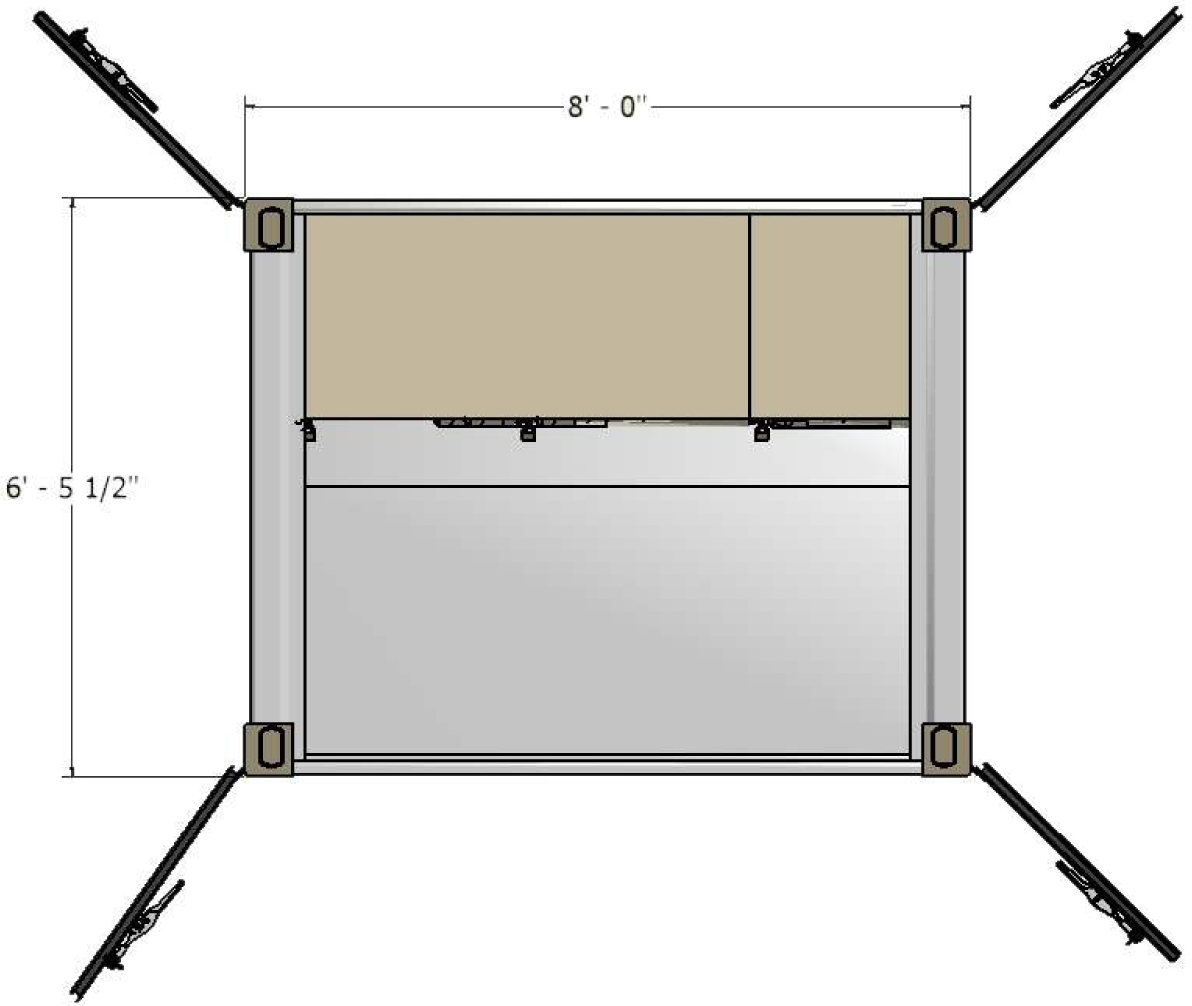

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 5 17/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1970.09 1914.92 2438.4 2264.17 2438.4 2438.4 2176.07 1874.04
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 3,700 w/ cabinets 11,200 14,900
Kgs 1678.29 5080.23 6758.53

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
