SEA BOX | Tricon ISO Container (Type 2) with Cabinets on One Side

Tricon ISO Container (Type 2) with Cabinets on One Side

Part Number: SB822.0.CT47D

NSN: 8150-01-619-7983, 8150-01-620-0078

Type: II

Tricon Dry Freight ISO Cargo Container

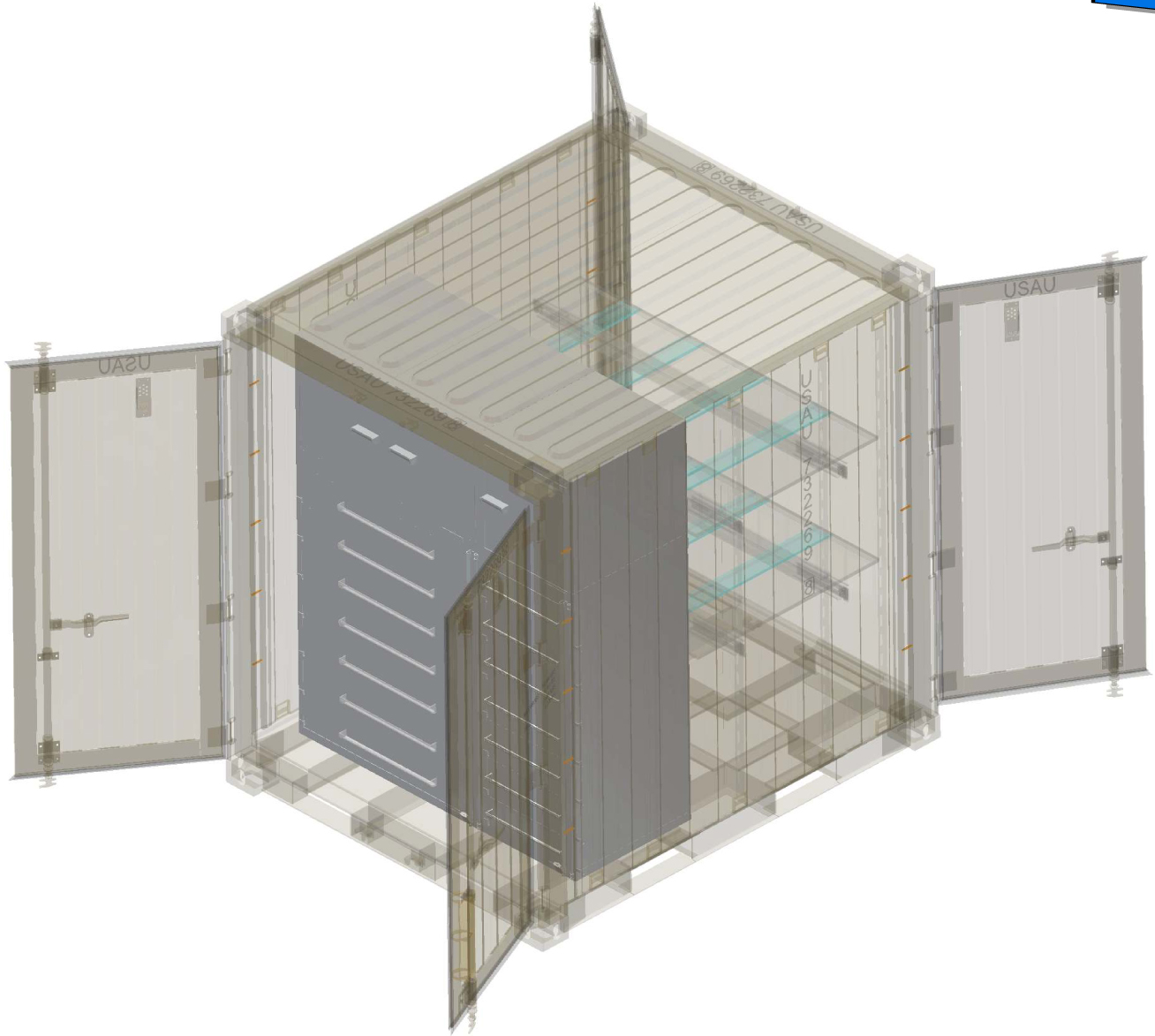

Tricon ISO Container with four (4) cabinets, seven (7) drawers each. Double doors on both sides.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • CONTAINER
  • Corrugated steel sides, roof + swing doors on both sides
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Vents, (2) each
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • Ext. Paint Color Choice of OD Green or Standard Tan

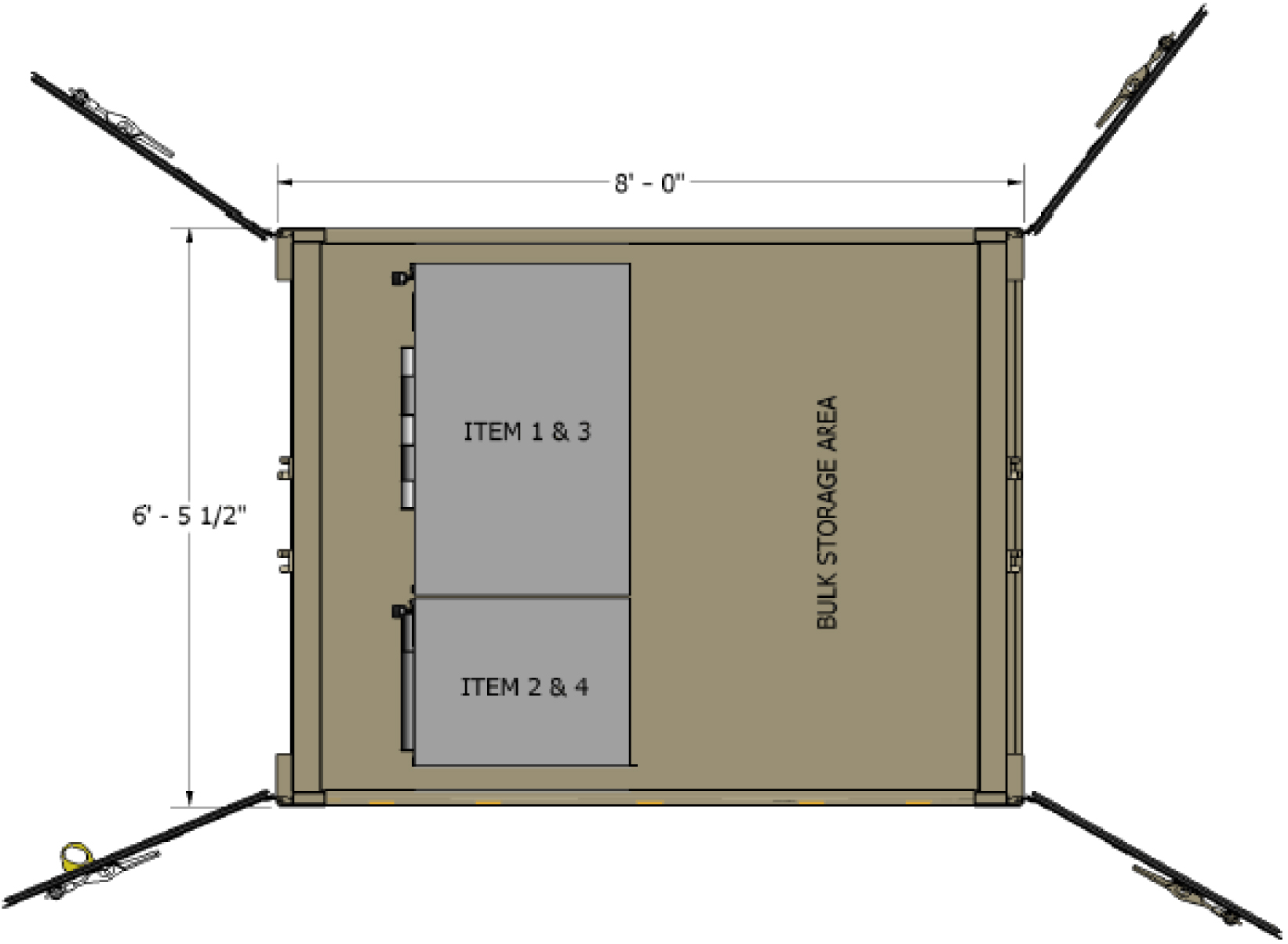

  • CABINETS

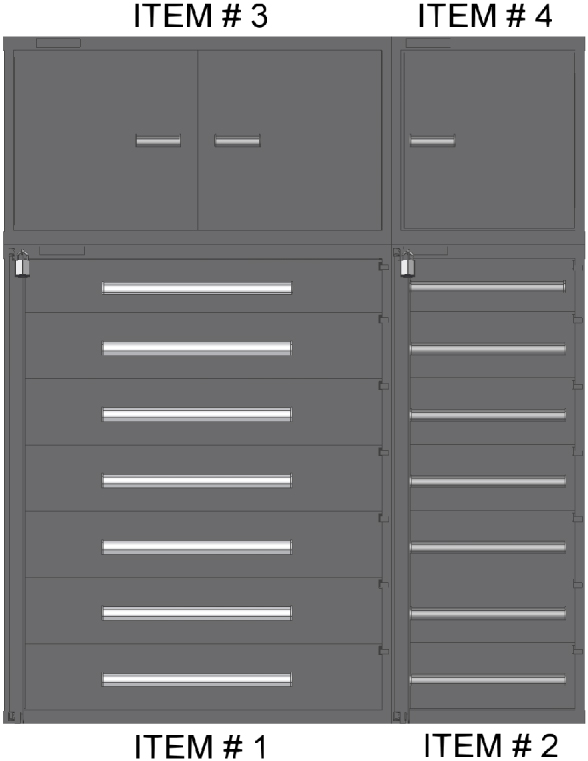

  • Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
  • 1 each 45” Wide Base Cabinet with 7 Drawers
  • 1 each 22.5” Wide Base Cabinet with 7 Drawers
  • 1 each 22.5” Wide Top with 1 Swing Door
  • 1 each 45” Wide Top with 2 Swing Doors
  • Modular Cabinet Design for Maximum Flexibility and Interchangeability
  • 400lb. Capacity Drawers
  • Superior Quality and Construction
  • Custom configurations upon request
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 5 17/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1843.09 1914.92 2438.4 2264.17 2438.4 2438.4 2176.07 1874.04
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 3,900 w/ cabinets 11,000 14,900
Kgs 1769.01 4989.52 6758.53

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
