SEA BOX | Tricon ISO Container (Type 2) with Cabinets and Shelf Halves

Tricon ISO Container (Type 2) with Cabinets and Shelf Halves

Part Number: SB822.0.ST.CT4-7D.SH2

NSN: 8150-01-619-8154, 8150-01-620-0132

Type: II

Tricon Dry Freight ISO Cargo Container

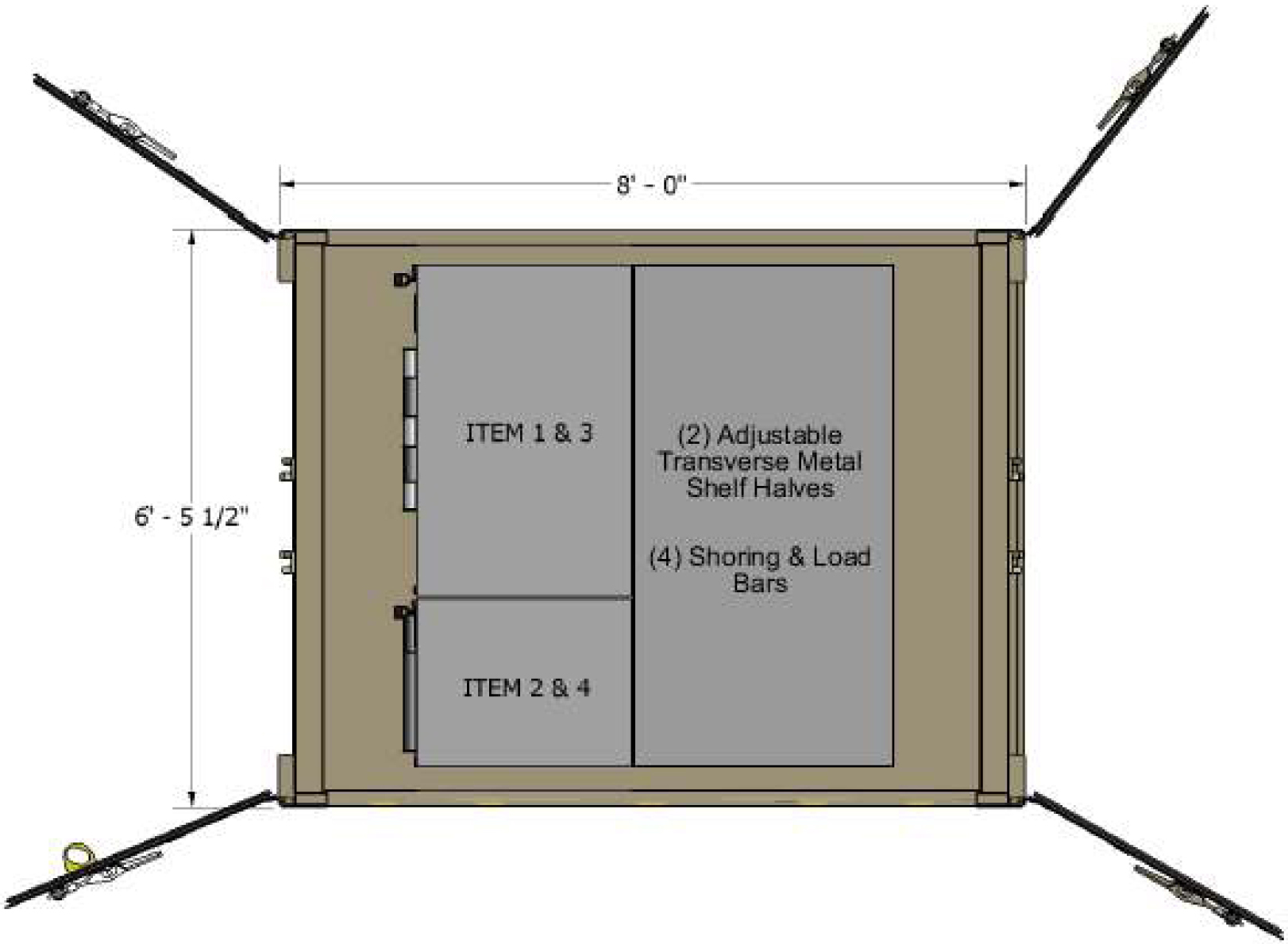

Tricon with four (4) cabinets, seven drawers each and two (2) shelf halves.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • CONTAINER
  • Corrugated steel sides, roof + swing doors on both sides
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Manifest box (2) each
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • Adjustable shelving brackets (5) sets = (10) vertical E-track sections total
  • 4 (each) Shoring & Load Bars - 2,000 lbs. cap. each
  • 2 (each) Adjustable Transvers Metal Shelf halves
  • Tan exterior paint
  • Vents, (2) each
  • CABINETS
  • Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
  • 1 each 45” Wide Base Cabinet with 7 Drawers
  • 1 each 22.5” Wide Base Cabinet with 7 Drawers
  • 1 each 22.5” Wide Top with 1 Swing Door
  • 1 each 45” Wide Top with 2 Swing Doors
  • 400lb. Capacity Drawers
  • Custom configurations upon request
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 5 17/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1970.09 1914.92 2438.4 2264.17 2438.4 2438.4 2176.07 1848.64
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 3,900 w/ cabinets 11,000 14,900
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
