20’x 8’ ISO Dry Freight Container with Weapons Racks
Part Number: SB862.6.ST.WR
NSN: 8150-01-619-0807
Type: IDouble Doors Both Ends (Type 2)

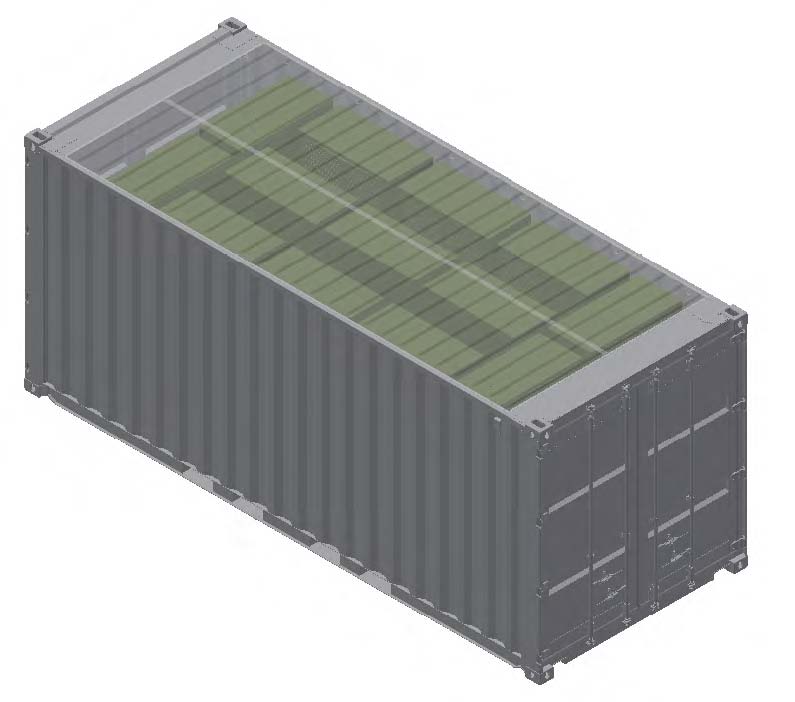

ISO Cargo Container with Weapons Racks. Double doors on both ends.
SB862.6.ST.WR BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, and swing doors on both ends
- (2) sets of forklift pockets, laden and unladen
- 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs. per 44 square inches
- Wall tie down steel lashing rings, 4,000 lbs. cap. Each, (24 total) tested at 6,000 lbs.
- Front corner post tie downs, (10 total)
- Door corner post tie downs, (10 total) = restraint system shoring slot will support 2” x 6” lumber
- Vents, (2) each
- Manifest box, (2) each
- Shoring slot system behind cargo doors
- Capable of secure storage and transport of Military Crew Serve Weapons
- Able to restrain (13) each, SB3451 Universal Weapons Rack for transport storage and rapid removal
- Adjustable, heavy-duty, aluminum decking/shoring beams 3,000 lbs. decking/vertical capacity 2,500 lbs. shoring/horizontal capacity
- Includes ratchet style, wide logistics straps for safe transport of items
- Technical Manual
- Standard TAN / Conventional Paint System 905
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 19’ 2 1/16” | 8’ 6” | 7’ 10 1/4” | 8’ 0” | 7’ 8 1/2” | 7’ 5 5/8” | 7’ 8 1/8” |
| Metric | 6,058 | 5,844 | 2,591 | 2,394 | 2,438 | 2,350 | 2,276 | 2,340 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,450 | 47,460 | 52,910 | 1,161 Cu.Ft. |
| Kgs | 2,472 | 21,528 | 24,000 | 32.8 Cu.M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
