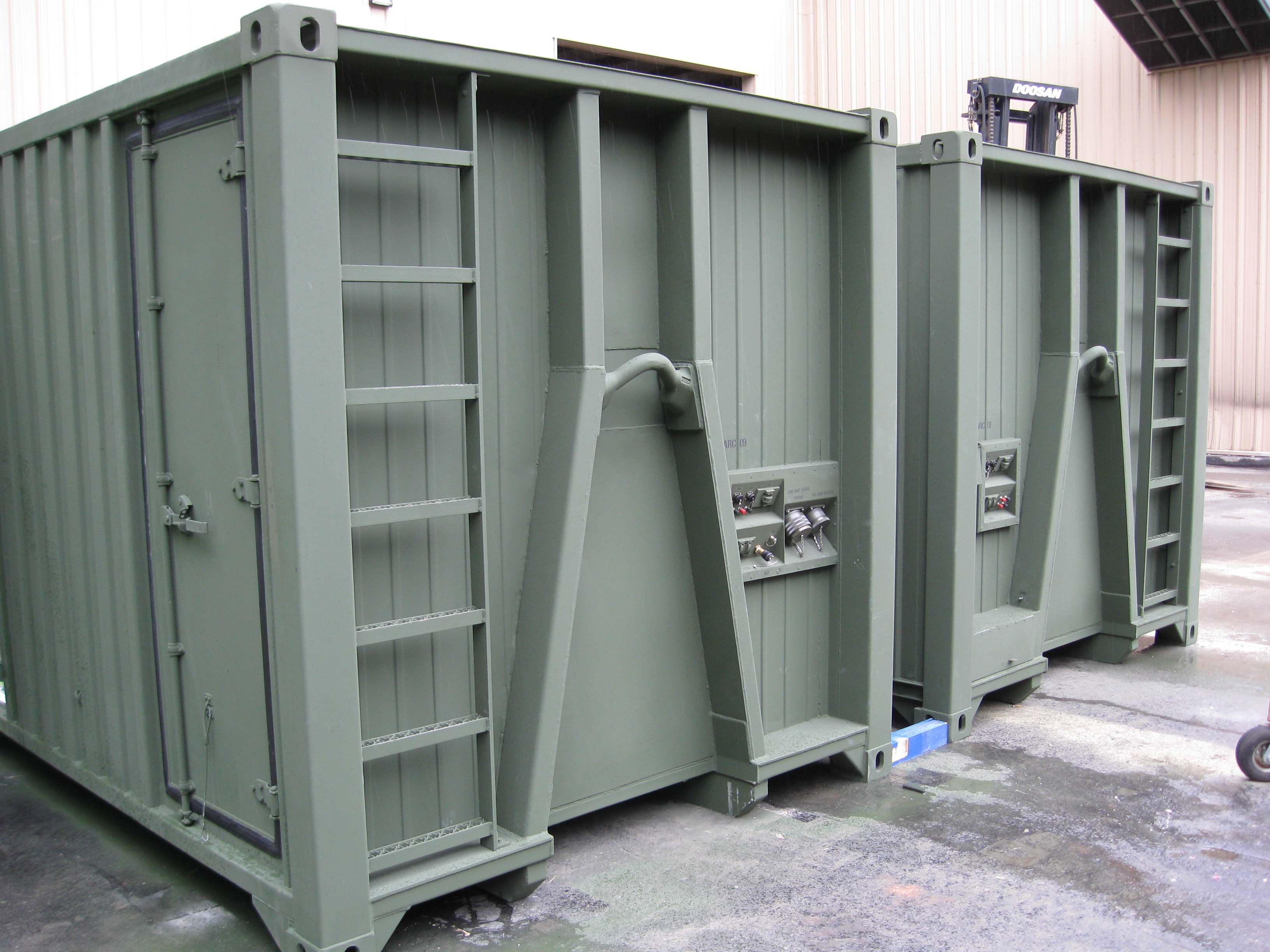

SEA BOX | Two Container (20’ x 8’) Mobile Machine Shop

Two Container (20’ x 8’) Mobile Machine Shop

Part Number: SB866.0.PLSMMS

NSN: 8150-01-619-0944, 8150-01-619-0901

Type: I

Double set of self contained workshops with generators, HVAC, air compressor, lathe, mill, and cabinets. Double doors on one end and one personnel door on one side.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • STANDARD FEATURES (MILL)
  • 120/208 Volt, 200 Amp, 3-Phase, electrical service (Selectable: Generator or Shore Power)
  • 120/208 Volt, 100 Amp, 3-Phase output Haas TM-1 Mill
  • PLS Rails with Bale Bar
  • Unist Lubricating System
  • Automatic Blackout Lighting
  • High Capacity Shelving/Locking Drawers
  • Mill Specific Machining Tools
  • Sturdy Workbench with Vise
  • Roof Access Ladder
  • Anti-Fatigue Mat
  • Communications I/O Panel (Includes: RJ45, RJ11, DB9, BNC and Binding Posts)
  • Weather Proof Butting Kit to Lathe Container
  • 16” diameter air ducts
  • Rapid Deployment
  • STANDARD FEATURES (LATHE)
  • 120/208 Volt, 100 Amp, 3-Phase, electrical service

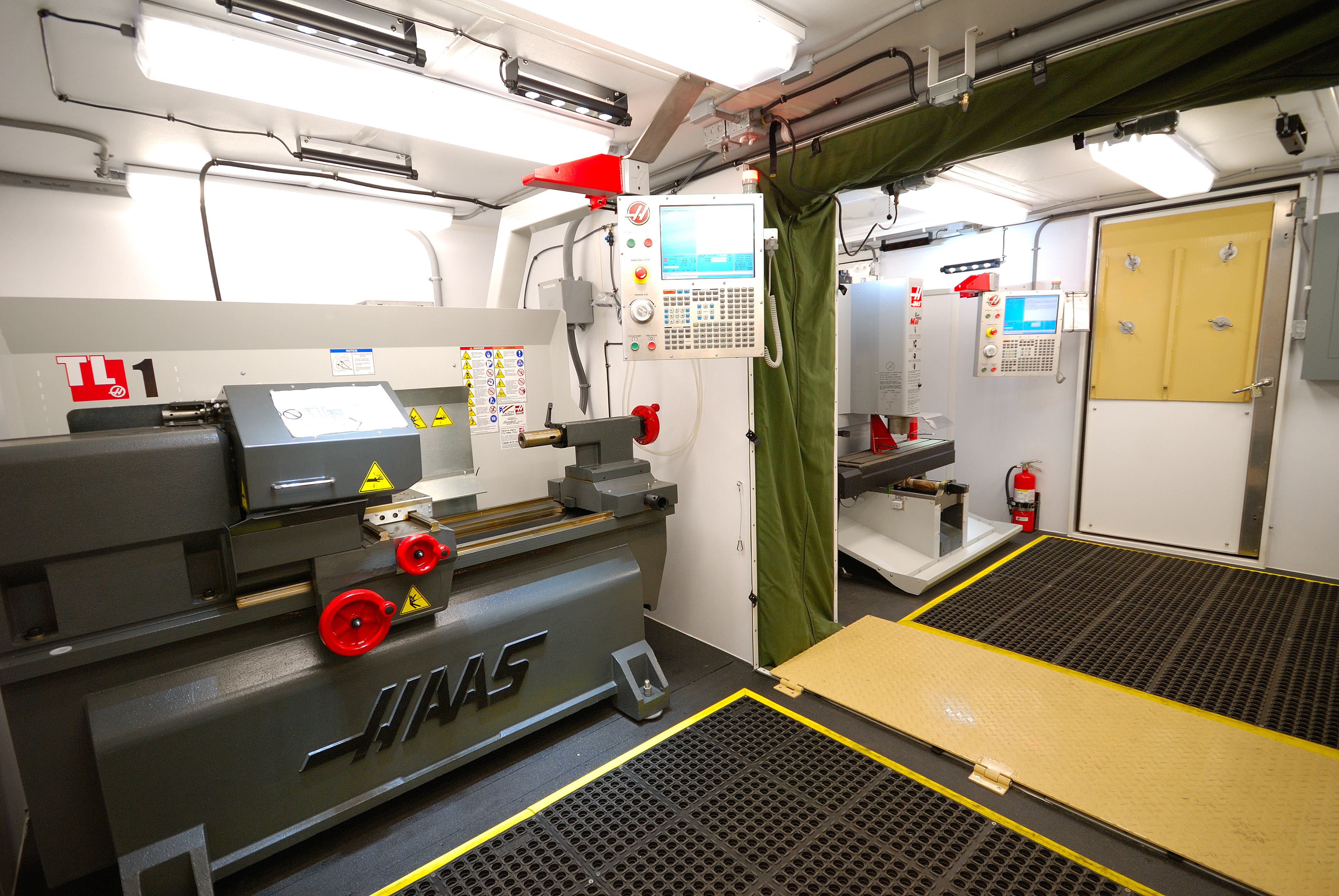

  • Haas TM-1 Lathe
  • PLS Rails with Bale Bar
  • Oil Free Scroll Air Compressor
  • Unist Lubricating System
  • Automatic Blackout Lighting
  • High Capacity Leveling Jacks
  • High Capacity Shelving/Locking Drawers
  • Lathe Specific Machining Tools

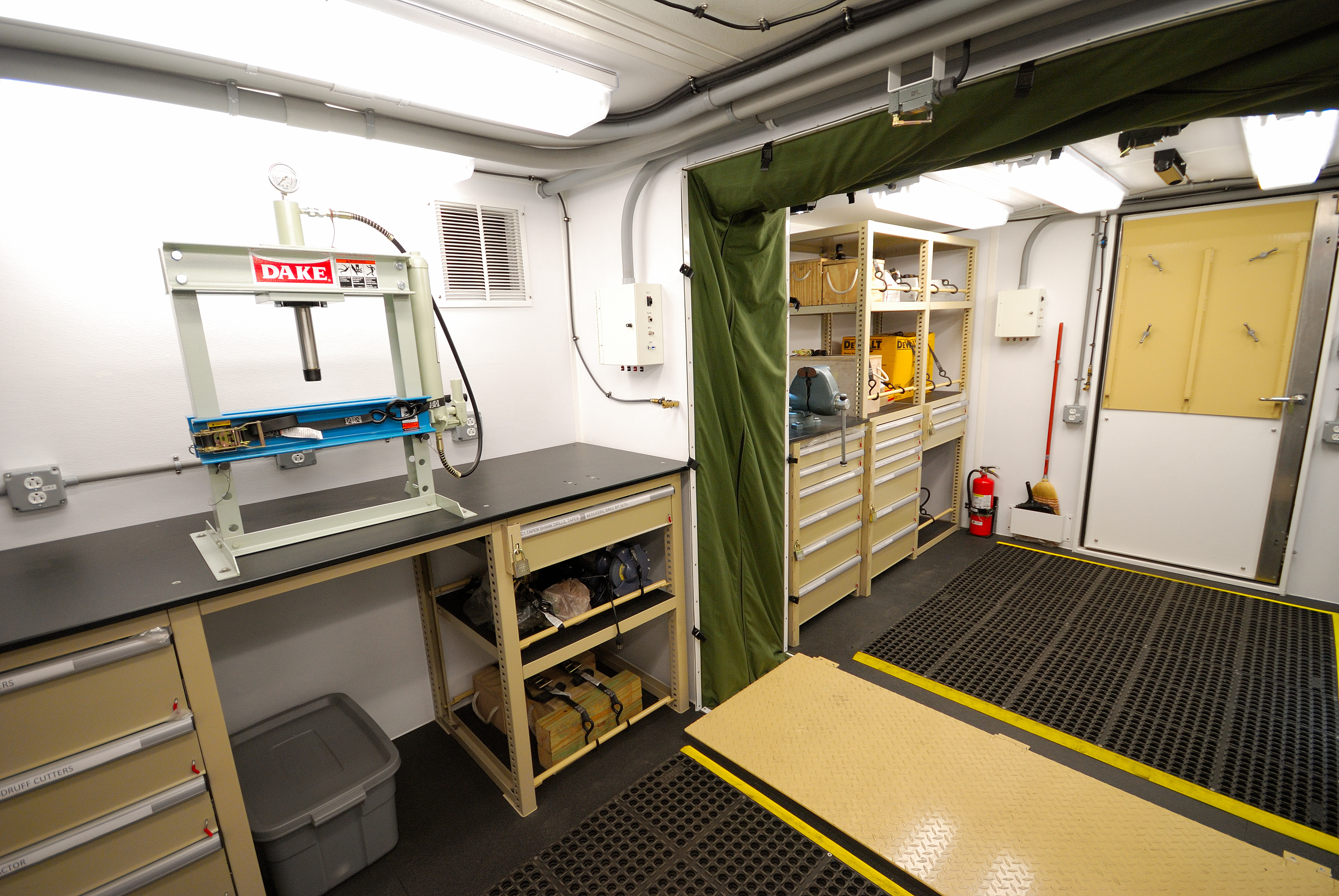

  • Sturdy Workbench with Hydraulic Press and Bench Grinder
  • External Folding Work Table
  • Roof Access Ladder
  • Anti-Fatigue Mat
  • Communications I/O Panel (Includes: RJ45, RJ11, DB9, BNC and Binding Posts)
  • Weather Proof Butting Kit to Lathe Container
  • 16” diameter air ducts
  • Rapid Deployment
  • OPTIONAL FEATURES (MILL) 120/208 Volt, 100 Amp, 3-Phase, 30 KW Generator
  • OPTIONAL FEATURES (LATHE) 5 Ton Environmental Control Unit (ECU)
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 1” 8’ 0” 7’ 4 3/16” 8’ 0” 7’ 8” 81” 89”
Metric 6,058 5,817 2,438 2,240 2,438 2,438 2,058 2,270
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 14,040 / 14,610 960 / 390 15,000 / 15,000 405 Cu. Ft.
Kgs 6,368 / 6,627 435 / 177 6,803 / 6,803 11.5 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
