Tricon Two-side Expandable Shelter

Part Number: SB3822.0.3S1

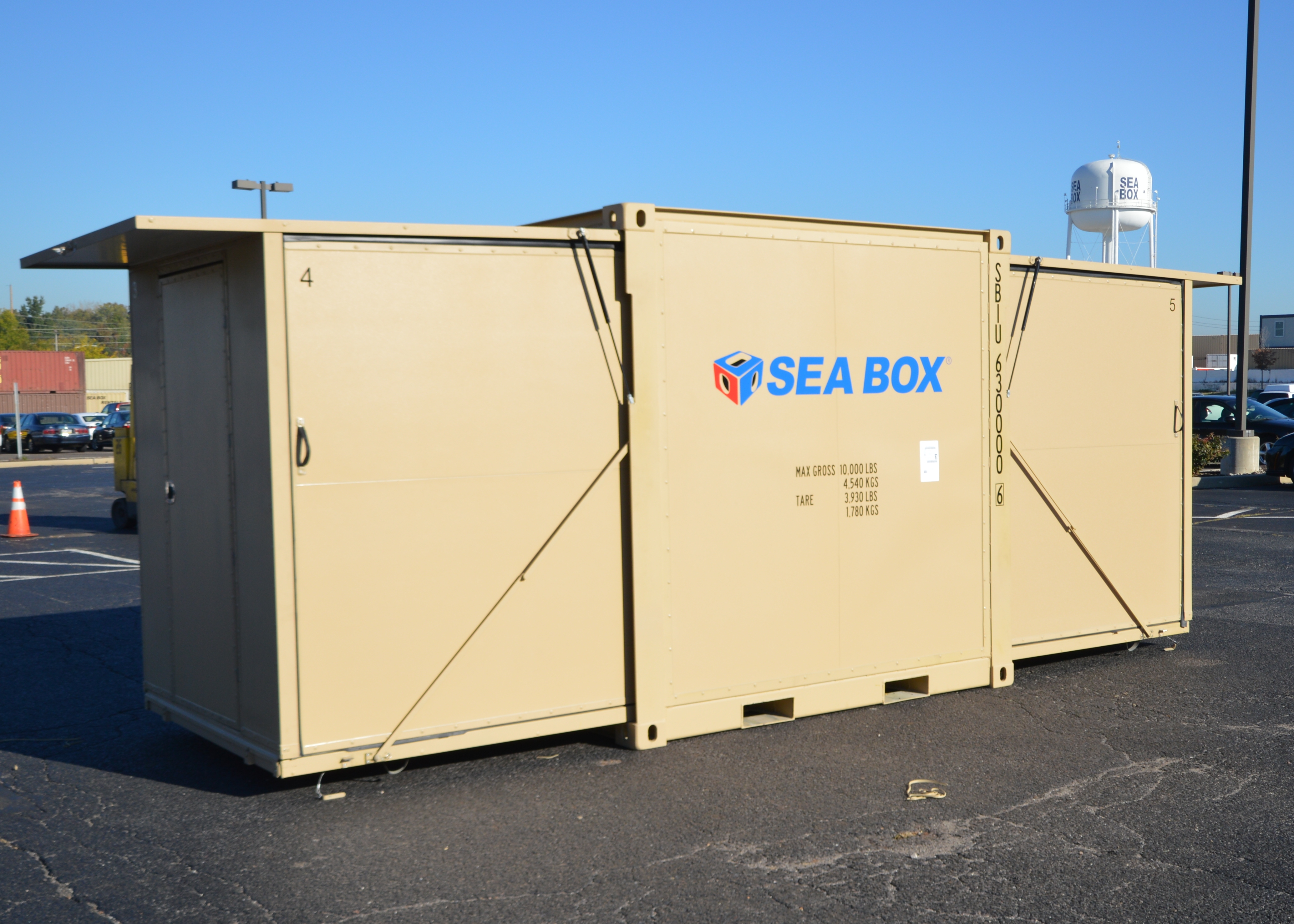

Tricon container that expands on both sides to nearly triple in size

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

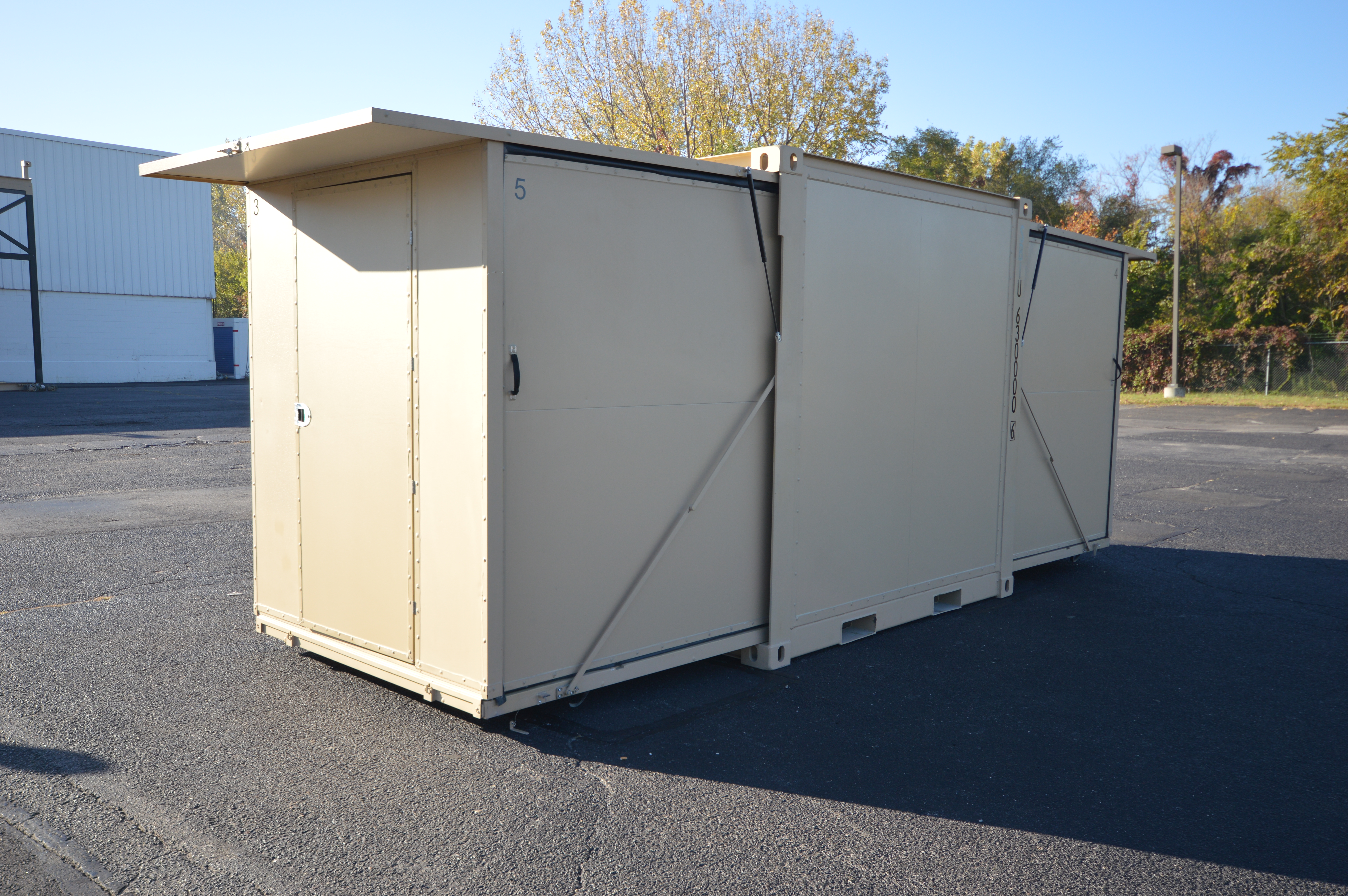

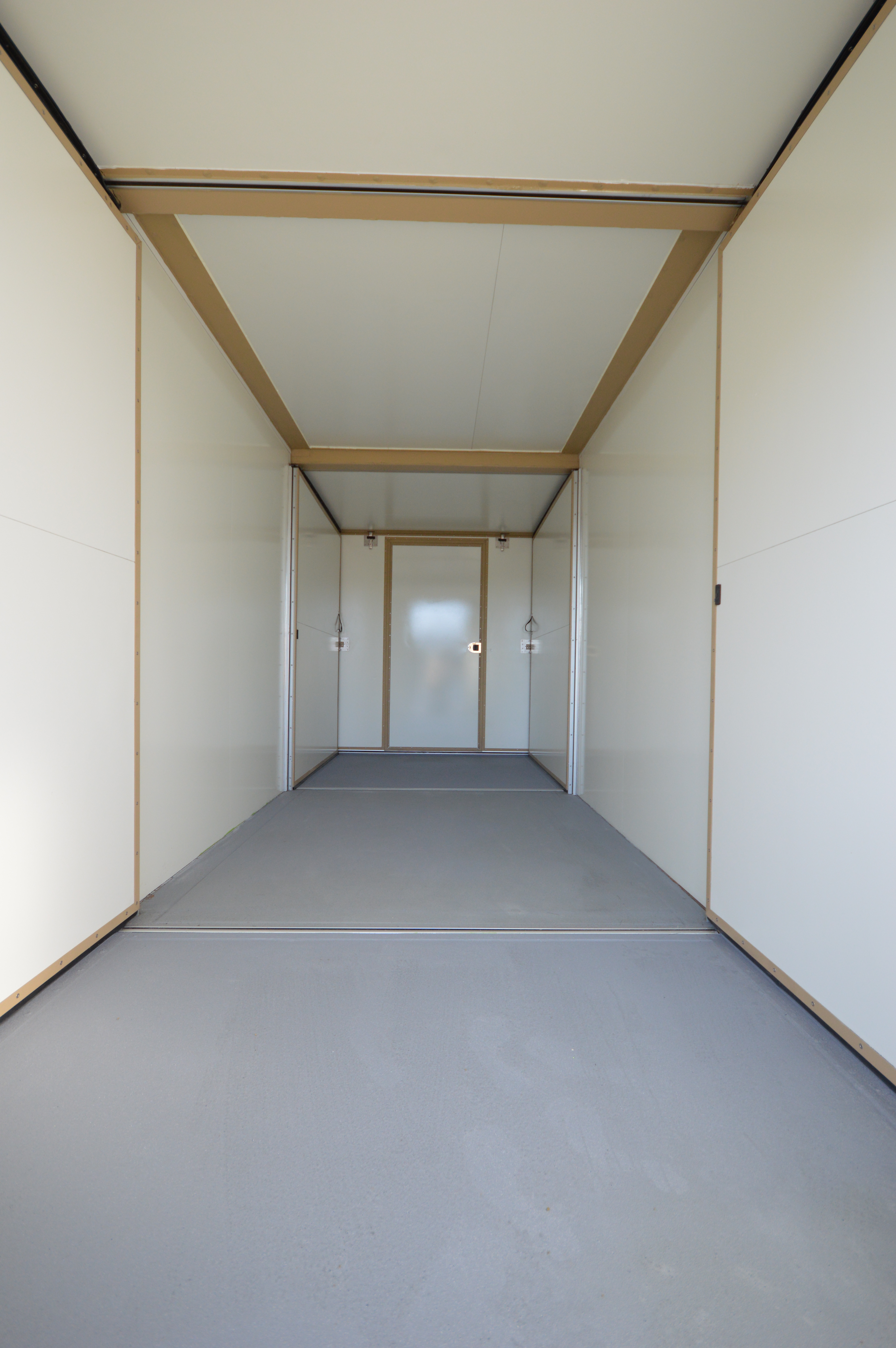

  • Container walls expand on both ends to provide additional internal space
  • Lightweight panels allow for easy deployment by two people with no tools required
  • Deployable in rugged terrain without the need for leveling jacks
  • Self-adjusting steps
  • Insulated wall panels with R7 value
  • Four-way fork lift pockets
  • (2) Personnel doors with 18” overhang above each
  • Tan ext. paint or Customer’s Color Choice (CC)
  • Connecting couplers, three per Tricon (SB2341)
  • External storage box for twistlocks
  • Electrical and lighting package
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 258.50 218.50 96 86.25 77.50 73.50
Metric 6,566 5,550 2,438 2,191 1,969 1,969
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 3,930 6,070 10,000 801.4
Kgs 1,783 2,753 4,536 22.69

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
