SEA BOX | Container Refrigeration Unit

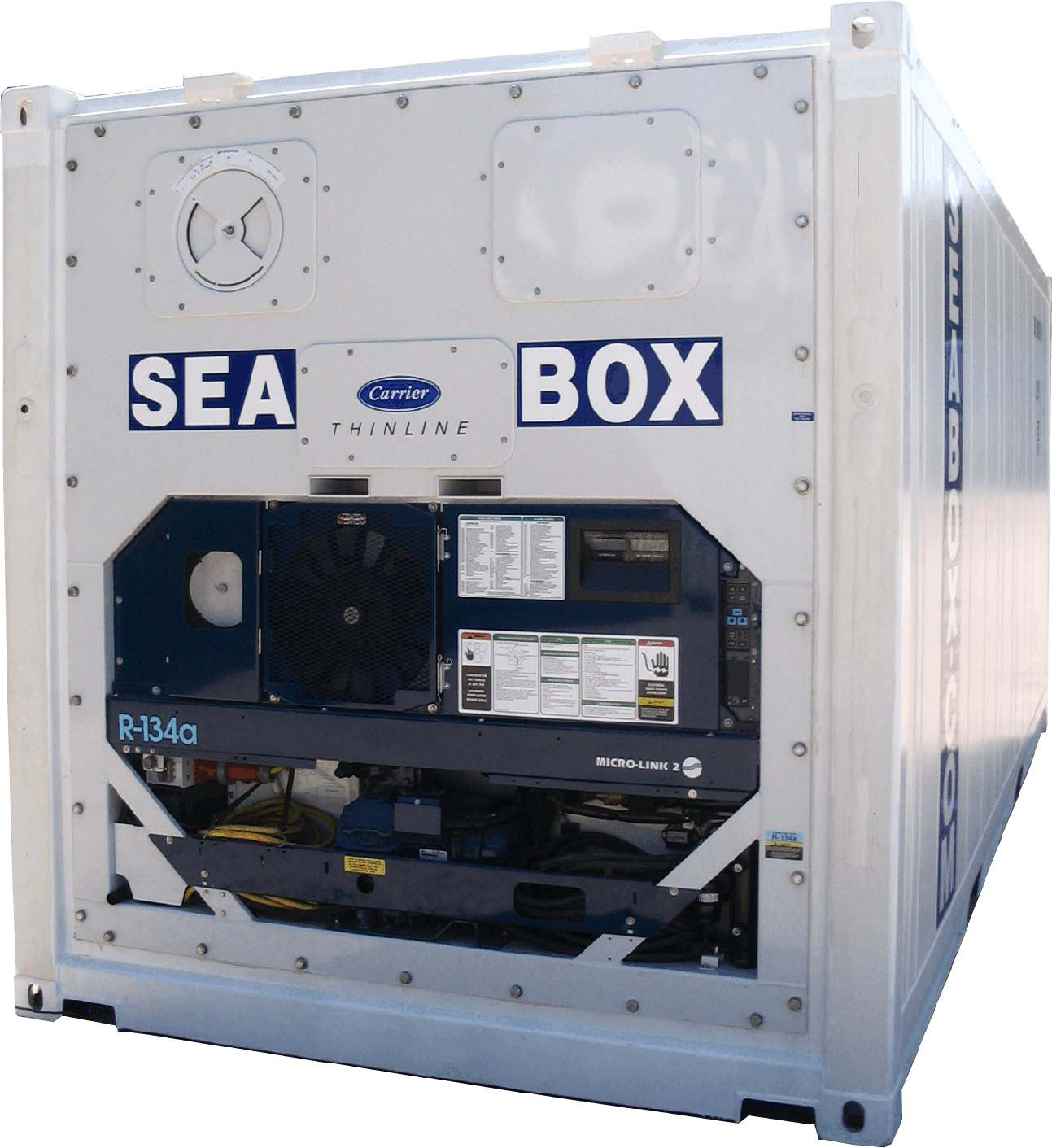

Container Refrigeration Unit

Part Number: SB574

Type: I

Container Refrigeration Unit

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Advanced Carrier 06D Reciprocating Semihermetic Compressor (41CFM)
  • Zero-ODP HFC-134a
  • Quick-Connect Dual Voltage Transformer
  • System wired for either 190/230 volt or 380/460 volt, 3 phase, 50/60 Hz power
  • 2 each, 60ft (18 meter) Power cables provided
  • 560 P9W Plug on the 190/230 volt cable
  • 530 P9W Plug on the 380/360 volt cable
  • Main power circuit breaker
  • ABS Certification
  • Microlink III (ML3) microporcessor controller with power up and integral DataCORDER (365 days) for state-of-the art temperature control
  • Industry-leading low air leakage: less than 0.14 CMH (5 CFH) at 50.8 mm (2 in.) W.g.
  • Removable front service panels
  • Forklift pockets to easily replace machines
  • Document holder with waterproof door
  • Specifications: 2°C (35°F)/10,260 Watts/35,000 Btu/hr
  • Specifications: -18°C (0°F)/6,008 Watts/20,000 Btu/hr
  • Specifications: -9°C (-20°F)/ 3,224 Watts/11,000 Btu/hr
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in
Metric
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
