SEA BOX | Tricon ISO Container (Type 1) Armory

Tricon ISO Container (Type 1) Armory

Part Number: SB821.0.NFELC

NSN: 8145-01-287-8563

Type: I

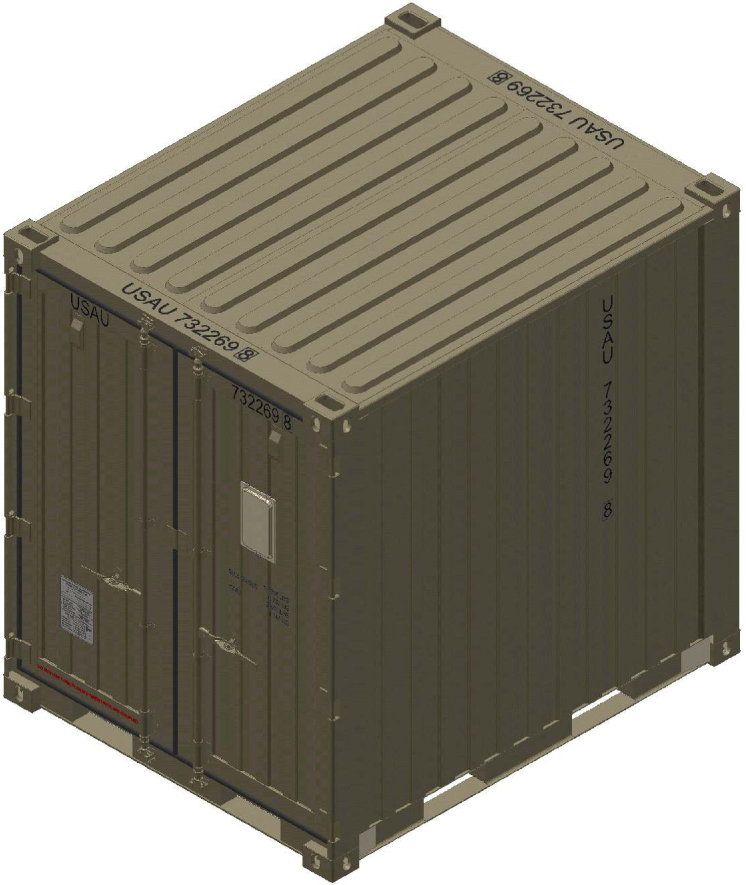

Tricon Dry Freight ISO Cargo Container

Tricon with 2 Stanley Vidmard storage cabinets and eight (8) M16/M14 gun racks. Double doors on one side.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Corrugated steel sides, roof + swing doors on (1) side
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Vents, (2) each, closeable type
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • (8) M16 / M14 Gun Racks
  • (2) Stanley Vidmar storage Cabinets
  • Electric entry port
  • Exterior color OD Green # 34096
  • Interior color Sand # 33303
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 7 23/32” 7’ 1 43/64” 6’ 1 25/32
Metric 1970.09 1914.92 2438.4 2264.17 2438.4 2438.4 2176.07 1874.04
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,600 12,300 14,900 356 Cu. Ft.
Kgs 1179.34 5579.19 6758.53 111.25 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
